Description

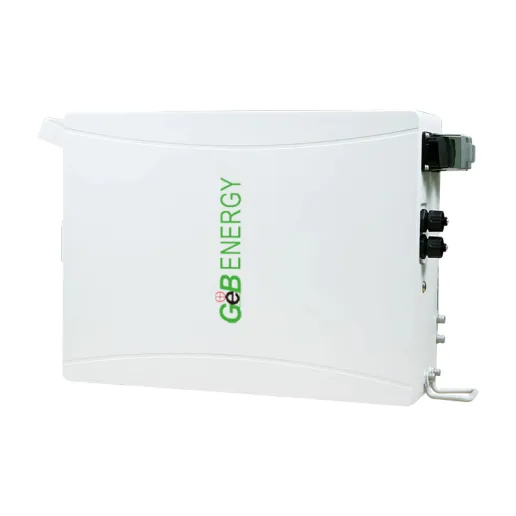

| Item | Power Module (3000) |
Battery (GEB4850) |
| Installation environment | Outdoor | Outdoor |
|
Installation method |
Pole/Wall |
Hanging Pole/Wall |
| Output rated voltage | 48VDC | 48VDC |
|
Rated capacity |
3.0KW@200V AC
1.5KW@100V AC
|
50Ah/48V DC |
| Input voltage | Single phase 75V~300V AC | 42~56.4V DC |
|
Maximum number of connections |
2 | 8 |
|
Dimensions |
450*340*150mm 450*340*80mm |
450*340*80mm |
|
Weight |
10Kg | 29Kg |
| Protection class | IP65 | Protection class |
| Working temperature | -40 ~ +50℃ | -40 ~ +50℃ |
| Operating Humidity Range | 5% ~ 95% | 5% ~ 95% |
| Heat dissipation method | Natural cooling | Natural cooling |
| Noise level | ≤ 45 dB(A) | ≤ 45 dB(A) |
| Communication interface | RS485 | dry contact |
| AC port | 1 | 0 |
| DC ports | 4 | 2 |
