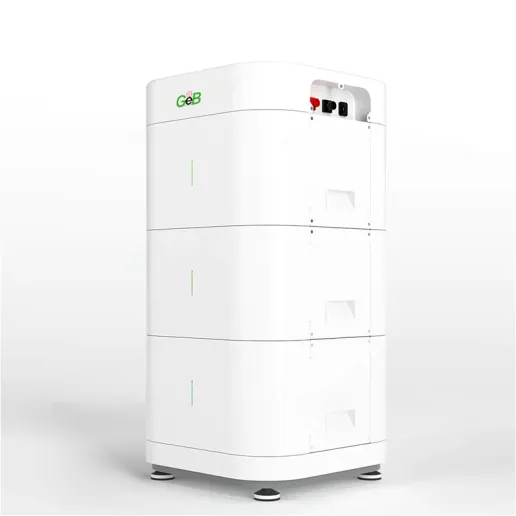

Solar Energy LiFePO4 Battery System 10KWH, 15KWH, 20KWH,30KWH,40KWH

Get a quote

Description

画板

画板

Products Description

Model
PM5000-S2
PM5000-S3
PM5000-S4
Model Number
2
3
4
Rated Voltage(V)
48/51.2
Voltage Range(V)
40-54;44.8-56
Charging Voltage(V)
52.5~54 ;57.6~58.4
Internal Impedance
≤50mΩ
Rated Energy
5KWH
15KWH
20KWH
Maximum Continuous
200
200
Charge Current(A)
200
Maximum Continuous
200
200
Charge Current(A)
200
OperationTemperature Range
Charge: 0~45°C
Discharge: -20~55°C
IP
IP55
Less than 12 months: -10~35C
Storage Temperature Range
Less than 3 months: -10~45°C
Less than 7 days: -20~65°C
Cycle Life
≥8000
Safety & Certification
IEC62619, UN38.3, ROHS, CE- EMC, UL1973, MSDS

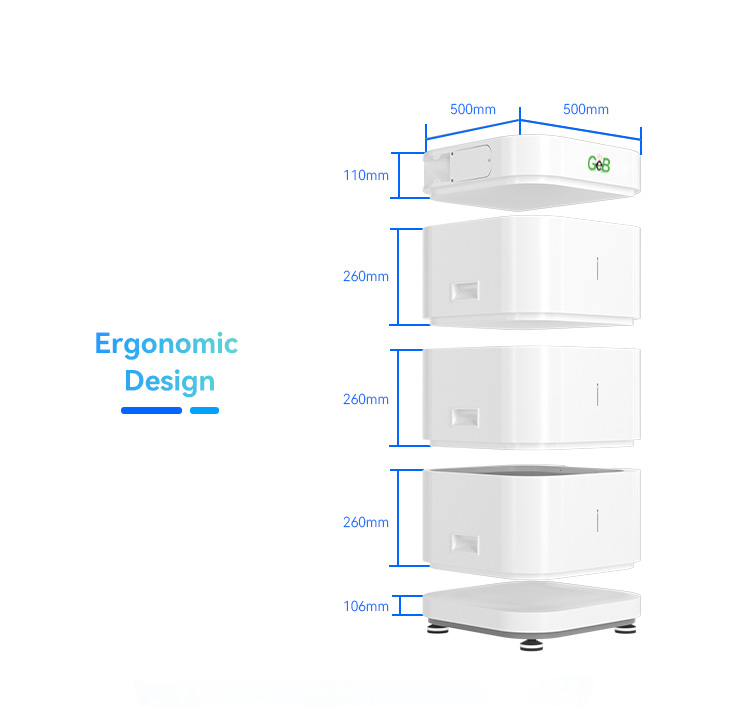

Dimensions(L*W*H)
500*500*736mm
500*500*996mm
500*500*1256mm

画板

画板

画板

画板

画板

画板

画板

画板

Features

Long cycle life: LiFePO4 technology offers long-term durability and dependable performance with a service life of thousands of charging cycles, minimizing the need for regular replacement.

Elevated safety requirements: LiFePO4 batteries are renowned for their superior safety and thermal stability. They are a safer option for home and business use since they are less likely to overheat, catch fire, or explode than other lithium-ion batteries.

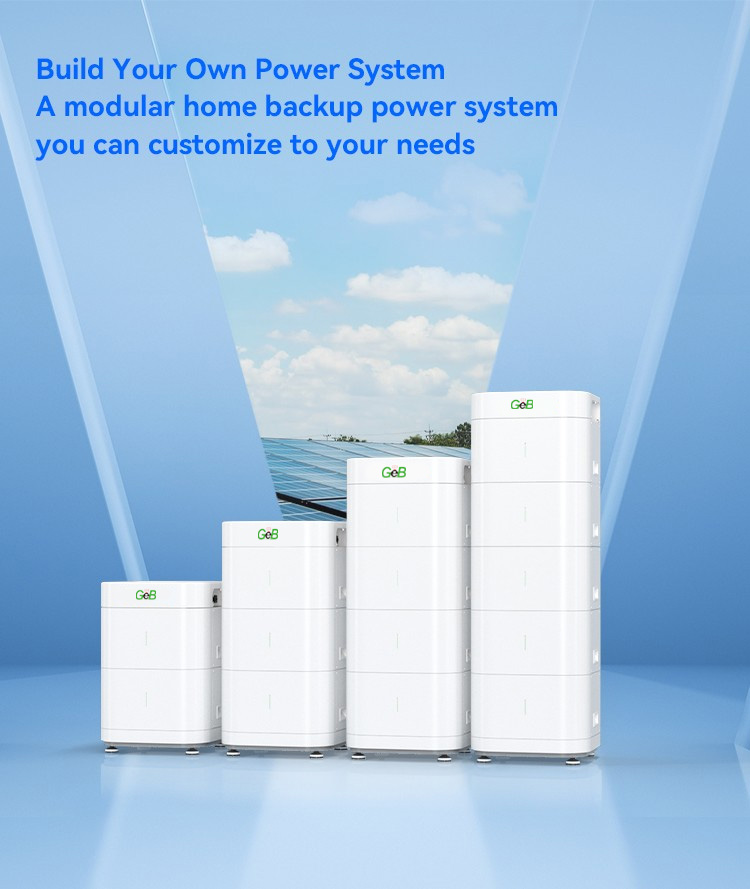

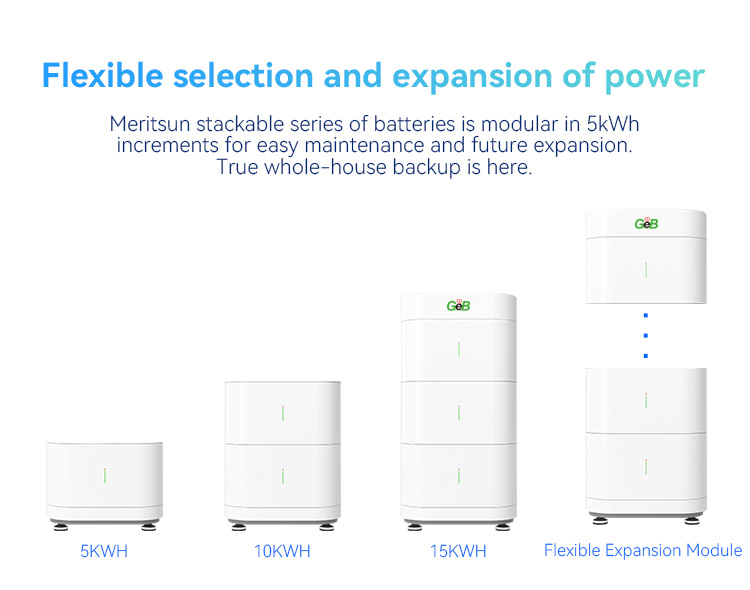

Scalable energy solutions: This battery system offers a range of capacities (10KWH, 15KWH, 20KWH, 30KWH, and 40KWH) to accommodate a range of energy storage requirements, from modest homes to huge commercial buildings.


Effective energy management: By maximizing efficiency, preventing overcharging and overdischarging, and ensuring optimal energy consumption, the battery management system (BMS) prolongs the battery's lifespan.

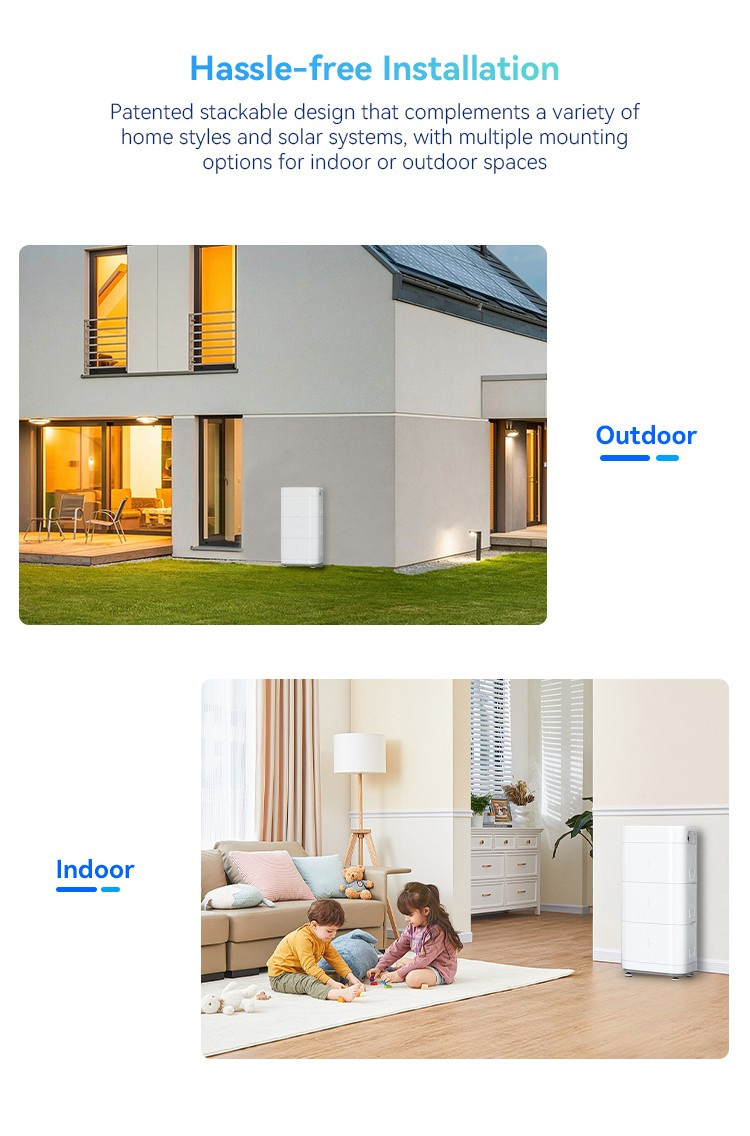

High energy density: LiFePO4 batteries store more power in a smaller package thanks to their high energy density. To make the most of available space, they can be placed both indoors and outside.

Environmentally friendly: LiFePO4 batteries are more environmentally friendly than conventional lead-acid batteries. They have a reduced lifetime environmental impact and don't contain any hazardous heavy metals.

Broad Temperature Range: These batteries are excellent for a range of climates and environmental circumstances since they function consistently throughout a large temperature range.

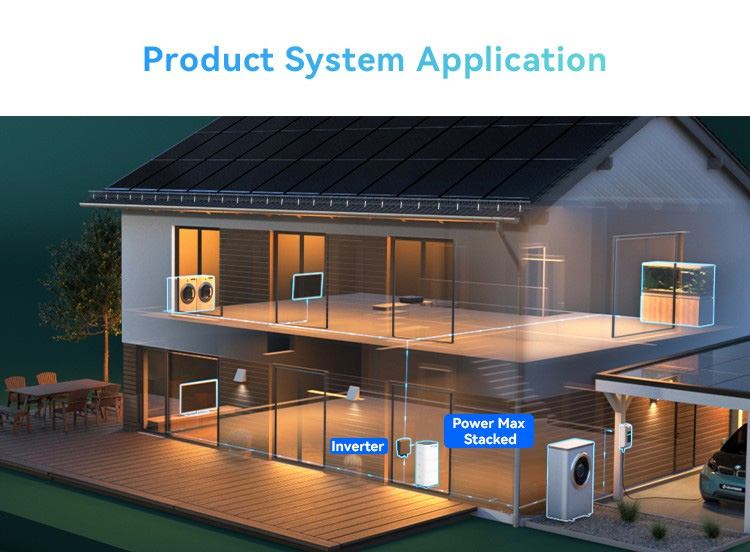

Simple Integration: The battery system is simple to install and maintain, which lowers setup costs and complexity. It is made to integrate easily with solar panels, inverters, and other energy systems.

Rugged Construction: The system is built to last in both indoor and outdoor settings thanks to a weatherproof and sturdy enclosure that can resist challenging climatic conditions.

Cost-Effective: LiFePO4 battery systems are an affordable energy storage option that yield substantial savings over time due to their extended lifespan and low maintenance needs.

FAQ:

Can you solar charge a LiFePO4 battery?
Renewable and Sustainable Energy Source: Solar power is a sustainable energy source. You may lessen your carbon footprint and help the environment by charging your LiFePO4 batteries with solar power. Cost Savings: Using solar energy to charge LiFePO4 batteries can result in lower electricity costs.
What are the disadvantages of LiFePO4 batteries?
High temperatures may result in decreased performance from LiFePO4 batteries. This restriction may make them unsuitable for use in extremely hot situations, such as certain industrial settings or areas with continuously high temperatures.
What is the difference between Li ion and LiFePO4 solar panels?
For Portability and Power: If you require a high-energy, lightweight battery for vehicles or portable equipment, go with Li-ion. For longevity and safety: If you're installing a system that needs a long-lasting, safe battery, such as solar power storage or maritime applications, go with LiFePO4.
Can you use lithium batteries in a solar system?
Globally, lithium-ion batteries are becoming an increasingly common option for solar systems. The development of this kind of battery was influenced greatly by its use in the electric vehicle sector. Its prismatic shape helps with solar system use and permits ventilation.
