Description
Feature | * HDMI/VGA/YPbPr/CVBS Input |
Specification | |
Video Input(Switchable) | 1xHDMI,1xVGA,1xCVBS,1xYPbPr |
Video Resolution | 4096x2160p30,1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i |
Loop Out | 1xHDMI(1080p) |
Audio | HDMI/RCA Audio/External Line In |
Display Screen | 3 Inch |
Remote Control | Yes |
Screeshot in Recording | Yes |
Playback | Yes |
Alone Mode | |
Record Resolution | 1920x1080/1280x720/1280x1024/1024x768 |
Storage Device | Flash USB Drive(up to 512G),Harddisk(up to 8T),SD(up to 512G) |
Storage File System | FAT32/exFAT/NTFS |
Record Format | MP4(H.264 Codec) |
Video Bitrate | Low 4MB/Mid 10MB/High 18MB |
Audio Bitrate | 128KB |
Size of Each File | 4G(FAT32) or 16G(NTFS/exFAT) |
Schedule Recording | Support |
Computer Mode | |
Record Resolution | 1920x1080/1280x720/1280x1024/1024x768 |
Compatible UVC/UAC | Yes |
Comatible System | Win10/Mac OS/Linux |
Compatibility with 3rd application software | OBS/Xsplit/Wirecast/FLME/QuickTime/VLC/Potplayer/Skype |
Attached Software | UXplayer(separately to buy) |
General | |
Language | English/Chinese/Janpanese/Italian |
Dimension (W×L×H) | 158x70x25mm |
Package(W×L×H) | 186x145x78mm |
Net/Gross Weight | 0.18kg/0.6kg |
Temperature | 0-55(Work),-20-80(Storage) |

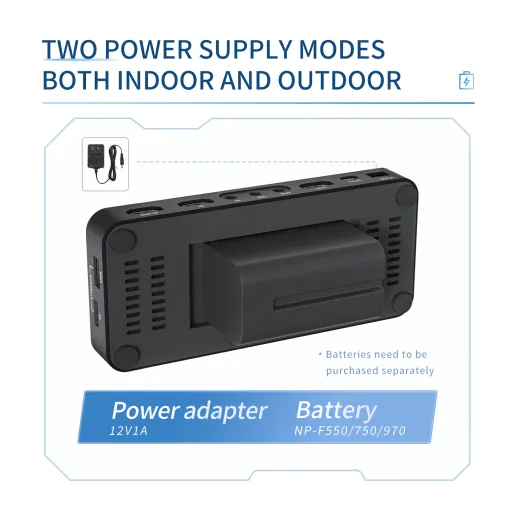

Power/Consumption | 12V DC 1.0A/5w |

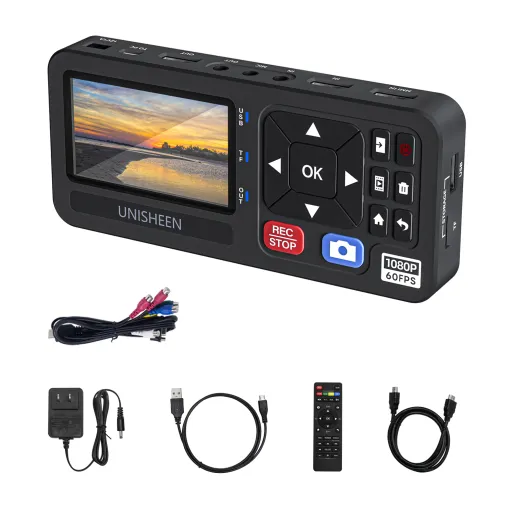

Included in Package | |
UR500A-M | 1pcs |
MMC Cable | 1pcs |
HDMI Cable 1.2M | 1pcs |
USB Cable 0.8M | 1pcs |
Power Adapter 12V1A | 1pcs |
Remote Control | 1pcs |
Manual | 1pcs |
