Description

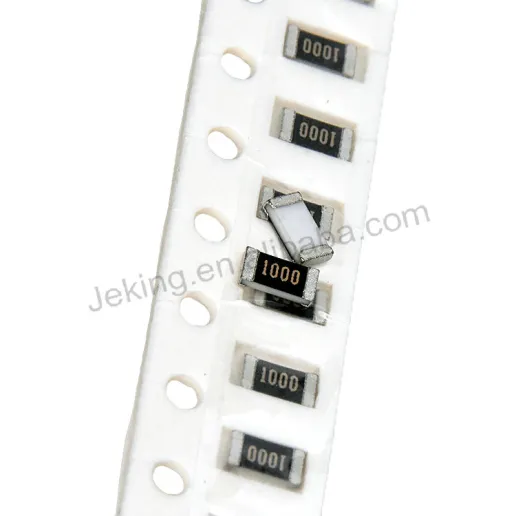

The Jeking APC1206T100RZ Thin Film Resistors - SMD 100Ohm 0.01% 1206 5 PPM is a high-precision surface-mount resistor designed for applications requiring exceptional stability and accuracy. This resistor offers a resistance value of 100 Ohms with a tolerance of 0.01%, ensuring precise control in critical circuits. The 1206 size format provides a robust and space-efficient form factor, suitable for a wide range of electronic designs.
Key Features:
- High-precision thin film resistor for critical applications
- Resistance value of 100 Ohms with a tolerance of 0.01%
- 1206 size format for space-saving designs
- Temperature coefficient of 5 PPM for excellent stability
- Suitable for a variety of electronic circuits and applications
- Robust construction for reliable and stable performance
| Series: | APC |
| Resistance: | 100 Ohms |
| Tolerance: | 0.0001 |
| Power Rating: | 125 mW (1/8 W) |
| Case Code - in: | 1206 |
| Case Code - mm: | 3216 |
| Temperature Coefficient: | 5 PPM / C |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 155 C |
| Voltage Rating: | 150 V |
