Description
Application

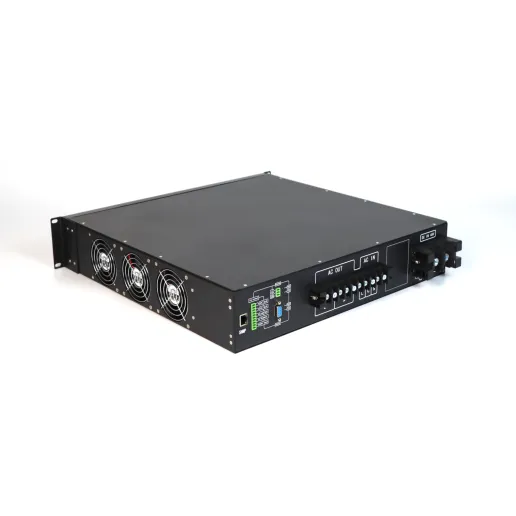

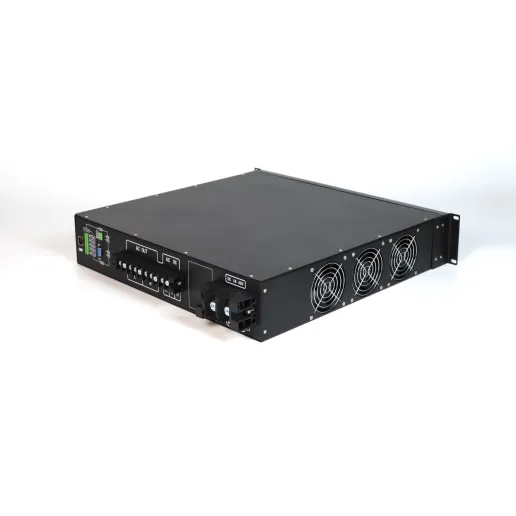

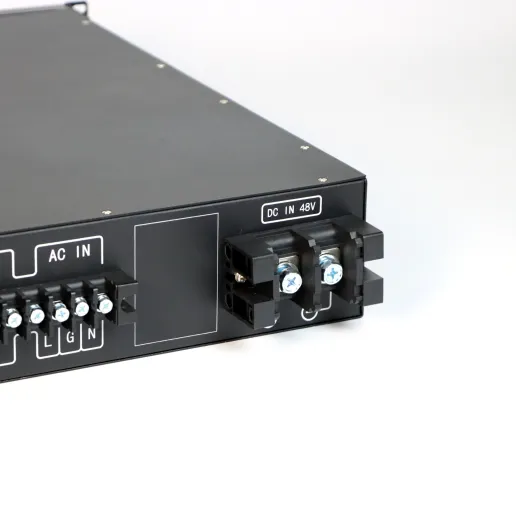

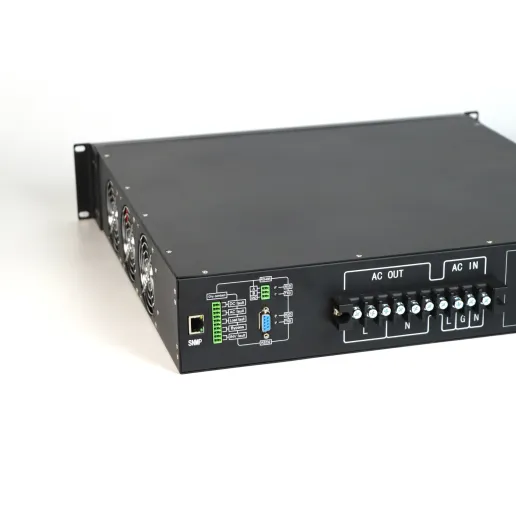

The BVT Rack Mount Inverter is a robust and reliable power conversion solution designed specifically for converting DC48V to AC110V. Available in a range of capacities from 1KVA to 6KVA, it offers flexibility and scalability to meet various power requirements. This inverter features single-phase operation, ensuring compatibility with most electrical systems. The rated power ranges from 800W to 4800W, allowing it to handle a wide variety of loads with ease.
The inverter boasts a voltage range of 85~135Vac and a frequency range that supports both 50Hz and 60Hz systems, making it suitable for use in different power grids worldwide. It supports various battery types, including Lithium Batteries, Lead Acid batteries, Colloidal Batteries, and NICD, offering flexibility in battery selection.
The pure sine wave output of the BVT Rack Mount Inverter provides clean and stable AC power, ensuring the protection of sensitive equipment from potential damage. It has an overload capacity of up to 150% for short durations, allowing it to handle demanding conditions with ease. Additionally, the inverter offers high inversion efficiency of ≥85% (at 80% resistive load), maximizing energy utilization and reducing wasted energy.
Feature
Capacity Options: Available in 1KVA, 2KVA, 3KVA, 4KVA, 5KVA, and 6KVA models, providing flexible solutions for various applications.
Single-Phase Operation: All models are designed for single-phase operation, ensuring compatibility with most electrical systems.
Rated Power: From 800W to 4800W, these inverters are capable of handling a wide range of loads.
Voltage & Frequency Range: With a rated voltage of 110Vac and a voltage range of 85~135Vac, these inverters are suitable for various power grids. The frequency range of 40Hz~55Hz for 50Hz systems and 65Hz~64Hz for 60Hz systems ensures compatibility with different electrical standards.
Battery Compatibility: Supports Lithium Batteries, Lead Acid batteries, Colloidal Batteries, and NICD, allowing for flexibility in battery selection.
Pure Sine Wave Output: Provides clean and stable AC power, protecting sensitive equipment from damage.
Specification
-Standard 19” Rack mount2 RU Chassis, Pure sine wave output
-5 Routes Dry contact for system (DC input fault, AC input fault, overload information, by-pass information and output fault)
-Real-time monitoring of the system operating status, audible and visual alarm
-RS232 and RS485 & Optional SNMP communication port
-Designed for the field of communication system
FAQ
Do you have charging solution?
A：Yes, BVT suitable for battery charging usage. In this application, our rectifier system is widely used for N+1 power supply and battery charging system management.
Does the product support the SNMP function?
A：Yes, 90% BVT product support SNMP. And all product built-in RS485 communication for standard.
What is RS485?
A：RS485 is a communication interface, support real-time data communication function, and can use the monitoring software to monitor and control the working condition of the inverter power supply in a real-time manner. supply.(Optional)
Can the inverter adapt to high temperature and operate stably?
A：BVT supports a maximum temperature of -20℃~60℃, and the stable operation is unchanged. If you configure air conditioning cooling in a high temperature environment, the product life will be increased
Can the inverter power supply be used on the plane?
A：Currently not supported, because the height problem will affect the operation of the inverter and fail. Haibo ≥ 2000 meters, the inverter will fail and not work
How about the inverter load?
A：Super overload capacity, can withstand full load startup, with bypass switch, can switch to bypass power supply when overloaded
How about high frequency inverter power supply noise?
A：≤55dB
Can I choose the mains mode for my inverter power supply?
A：Yes, BVT inverter support AC main power supply and DC main power supply, 2 modes can be selected flexibly, and the mode can be changed through the LCD panel or the communication background software
What will causes Power failure and what can be done to resolve?
A: Check whether the positive and negative poles are reversed, and reconnect after confirming. If it cannot be turned on, please return the power supply back to BVT for inspection & repairing
What are the protection functions of the inverter power supply?
A：Input under-voltage protection, anti-DC input reverse connection, buffer protection, over-voltage protection, overload protection, short-circuit protection, over-temperature protection, temperature-controlled fan, etc.
