Description
Product Description:

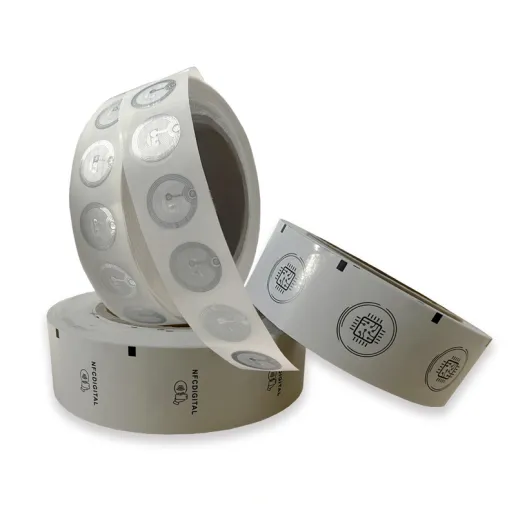

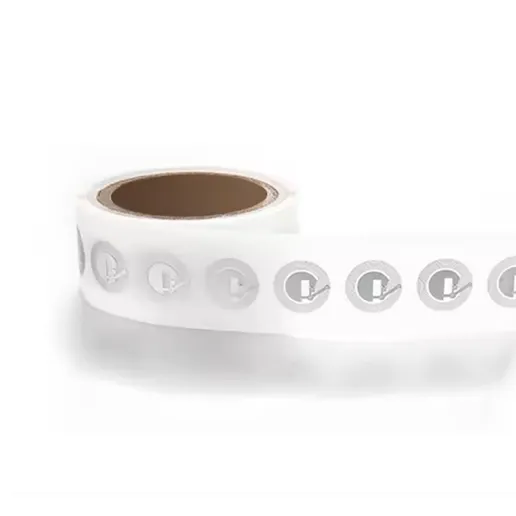

NFC sticker is a kind of high-frequency tag, working on 13.56MHz and ISO14443A. Paper / PET coated on surface, can be print any color as needed. HF chip is the core of this NFC sticker, Read distance betwen 0-10cm,readable and writable and lockable,which gives it the vitality of NFC technology, enabling it to achieve many functions, such as access control, socialinteraction, tracking, payment, etc.
Product Parameters:
| Item | Description | ||
| Product | NFC Social Media share Tag Miφ21-NTAG | ||
| Chip Type | NTAG®213 | NTAG®215 | NTAG®216 |
| EPC Memory | 180 Byte | 540 Byte | 924 Byte |
| User Memory | 144 Byte | 504 Byte | 888 Byte |
| Frequency | 13.56MHz | ||
| Operating Mode | Passive | ||
| Protocol | ISO/IEC 14443A | ||
| ESD Voltage Immunity | 2KV | ||
| IC Life | 100,000 Programming cycles, 10 years data retention | ||
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | ||
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | ||
| ANTENNA SIZE(mm) | φ21 | ||
| Available Dimensions(mm) | φ25 | ||
| or Customized | |||
| Application | Contactless Payments、Access Control、Public Transport、Marketing and Advertising、Event Management、Smart Posters and Signage、Inventory and Asset Tracking、Healthcare、Consumer Electronics、Authentication and Security、Product Authentication、Data Sharing、Gaming and Toys etc | ||
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | ||
