Description
Product Description:

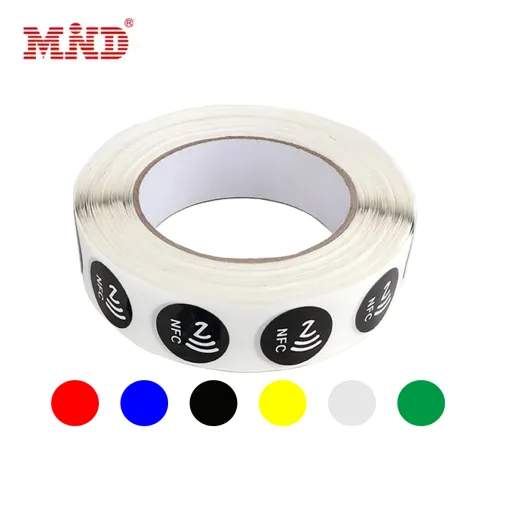

NFC sticker is a kind of high-frequency tag, working on 13.56MHz and ISO14443A. Paper / PET coated on surface, can be print any color as needed. HF chip is the core of this NFC sticker, Read distance betwen 0-10cm,readable and writable and lockable,which gives it the vitality of NFC technology, enabling it to achieve many functions, such as access control, socialinteraction, tracking, payment, etc.
Product Parameters:
| Item | Description |
| Product | NFC Tag for Smart Phone Miφ21-NTAG® 216 |
| Chip Type | NTAG® 216 |
| User Memory | 888 bits |
| Frequency | 13.56MΗz |
| Operating Mode | Passive |
| Protocol | ISO 14443A |
| ESD Voltage Immunity | 2KV |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| ANTENNA SIZE(mm) | Dia 21mm |
| Available Dimensions(mm) | Dia 30mm |
| or Customized | |
| Application | asset tracking, inventory management and access control. |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
