Description
Product Description:
Mi4210 is a label with a tail designed by mind for jewelry labels according to a specific environment. After testing, it is not only used in jewelry labels, but also widely used in cable, glasses, luxury goods, retail management and other fields
Product Parameters:
| Item | Description | |

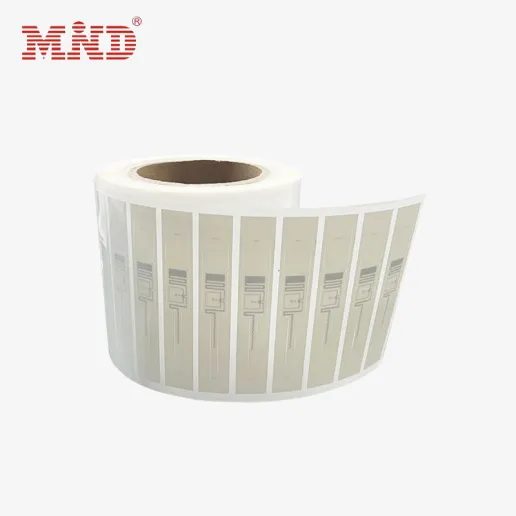

| Product | UHF RFID Jewelry Label Mi4210-M730 | |
| Chip Type | Impinj/M730 | |
| EPC Memory | 128Bits | |
| User Memory | 0Bits | |
| TID Memory | 48Bits | |
| Frequency | 860～960MHz | |
| Operating Mode | Passive | |
| Protocol | ISO 18000-63/Gen2v2 | |
| ESD Voltage Immunity | 2KV Max. 2000V | |
| IC Life | 100,000 Programming cycles, 10 years data retention | |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | |
| ANTENNA SIZE(mm) | 42*10mm | |
| Available Dimensions(mm) | 100*17mm | |
| or Customized | ||
| Application | Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking | |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | |
