Description
Product Description:

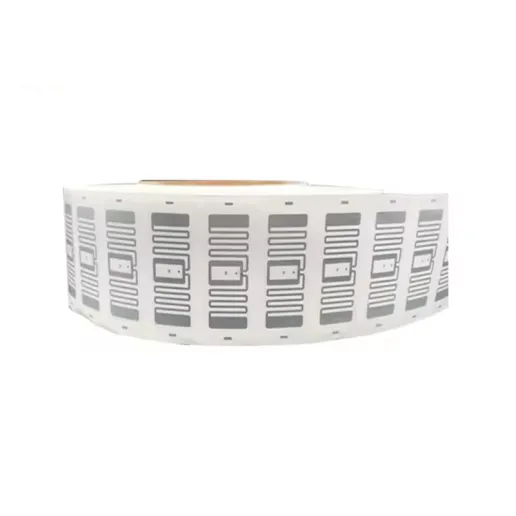

This antenna is designed for Medical applications. Its high efficiency and excellent performance make it widely used in medical packages field etc.
Product Parameters:
| Item | Description | |
| Product | UHF RFID Medical Label Mi4015-UCODE 9/R-6P | |
| Chip Type | NXP/UCODE 9 | Impinj/Monza R6-P |
| EPC Memory | 96 Bits | 128 Bits |
| User Memory | 0Bits | 32Bits |
| TID Memory | 96Bits | 48Bits |
| Frequency | 860～960MHz | |
| Operating Mode | Passive | |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 | |
| ESD Voltage Immunity | 2KV Max. 2000V | |
| IC Life | 100,000 Programming cycles, 10 years data retention | |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | |
| ANTENNA SIZE(mm) | 38*18mm | |
| Available Dimensions(mm) | 50*50mm | |
| 48*18mm | ||
| or Customized | ||
| Application | Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking | |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | |
