Description
Product Description:
This antenna is designed for Medical applications. Its high efficiency and excellent performance make it widely used in medical packages field etc.
Product Parameters:
| Item | Description |

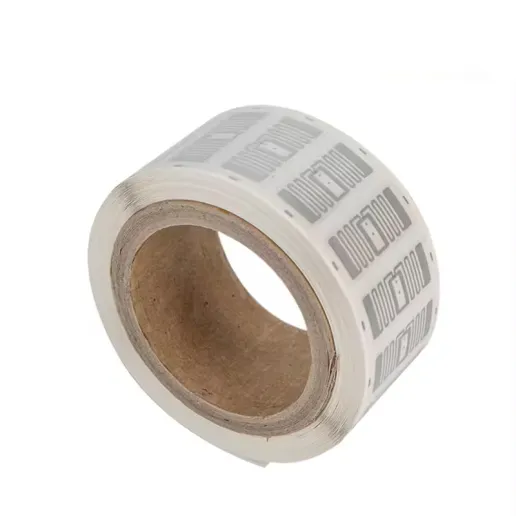

| Product | UHF RFID Medical Label Mi4015-UCODE®9 |
| Chip Type | UCODE®9 |
| EPC Memory | 96 Bits |
| User Memory | 0Bits |
| TID Memory | 96Bits |
| Frequency | 860～960MHz |
| Operating Mode | Passive |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 |
| ESD Voltage Immunity | 2KV Max. 2000V |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| ANTENNA SIZE(mm) | 38*18mm |
| Available Dimensions(mm) | 50*50mm |
| 48*18mm | |
| or Customized | |
| Application | Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
