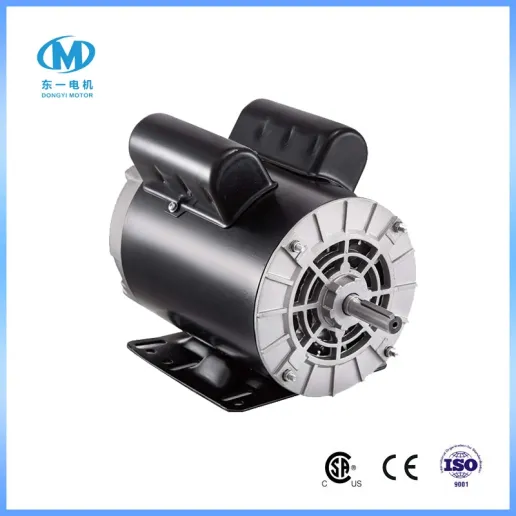

Description
Standard Features:
---------------------------------------------------------------------
Horsepower: 5HP (Specially Designed for Air Compressor Motor)
145TFrame Rated RPM: 3450 RPM
Amps: 22.0-21.0A @ 208-230V
Shaft size: 7/8"
Class B Temp Rise
Rolled Steel Construction
Removable Universal Base
Overload Protection With Manual Reset
Capacitor Start/ Capacitor Run
Waterproof can be used outdoors
ROT--CCW /CW
Basic Info.
Model NO.
CM series
Function
Driving, Control
Casing Protection
Open Type
Number of Poles
2
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC
Frame Size
143t
Winding
100% Copper Wire
Protection Class
IP23
AC Voltage
208-230V
Housing
Steel Shell
Insulation Class
F
Service Factor
1.0
Duty
Continuous(S1)
Installation
Horizontal
Certificates
CSA, CE, CCC, ISO9001
Motor Type
Asynchronous Single Phase
Frequency
50/60Hz
Cooling Method
IC411
Enclosure Type
Odp
Rotation
Ccw/Cw
Transport Package
Plywood Box or Carton Box
Specification
Induction Motor
Trademark
DONGYI
Origin
China
HS Code
8501400000
Production Capacity
10000 Pieces/ Month
