Description
WATER PUMP MOTORS,SINGLE PHASE MOTORS
♦INTRODUCE
♣The YC series heavy-duty single-phase motors are suitable for powering small type machine tools and water pumps,especially for family workshops where only single-phase current is available.Motors of this series are integrated with up-to-date design,built with the best quality materials and attractive appearance.They have outstanding performance,easy maintenance and are reliable.They completely conform to international I.E.C. standards.
♣YC series protected motors are of IP44 totally enclosed fan-cooling type.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.
WATER PUMP MOTORS,SINGLE PHASE MOTORS
♦OPERATING CONDITIONS
♣Ambient temperature:-15°c<Θ<40°c
♣Altitude:not exceed 1000m
♣Rated voltage:220v
♣Rated frequency:50Hz/60Hz
♣Dyty:S1(continuous)
♣Insulation class:B/F
♣Protection class:IP44/IP54
♣Cooling method:IC0141
| TYPE | OUTPUT | VOLTAGE (V) | CURRENT(A) | SPEED(R/MIN) | EFF(%) | POWER FACTOR |
IST/IN | T.MAX/TN | |
| HP | KW | ||||||||
| YC-80A-2 | 0.5 | 0.37 | 220 | 3.7 | 2880 | 62 | 0.73 | 6.5 | 1.8 |
| YC-80B-2 | 0.75 | 0.55 | 220 | 5.3 | 2880 | 65 | 0.73 | 6.5 | 1.8 |
| YC-80C-2 | 1 | 0.75 | 220 | 6.7 | 2880 | 68 | 0.75 | 6.5 | 1.8 |
| YC-90S-2 | 1.5 | 1.1 | 220 | 9.1 | 2880 | 71 | 0.77 | 7 | 1.8 |
| YC-90L-2 | 2 | 1.5 | 220 | 12.1 | 2900 | 72 | 0.78 | 7 | 1.8 |
| YC-100L-2 | 3 | 2.2 | 220 | 17.1 | 2900 | 74 | 0.79 | 7 | 1.8 |
| YC-112M1-2 | 4 | 3 | 220 | 21.4 | 2900 | 76 | 0.84 | 7 | 1.8 |
| YC-112M2-2 | 8 | 3.7 | 220 | 24.8 | 2900 | 79 | 0.86 | 7 | 1.8 |
| YC-80A-4 | 1/3 | 0.25 | 220 | 3.4 | 1450 | 56 | 0.6 | 6 | 1.8 |
| YC-80B-4 | 0.5 | 0.37 | 220 | 4.5 | 1450 | 60 | 0.62 | 6 | 1.8 |
| YC-80C-4 | 0.75 | 0.55 | 220 | 6 | 1450 | 64 | 0.65 | 6 | 1.8 |
| YC-90S-4 | 1 | 0.75 | 220 | 7.7 | 1450 | 67 | 0.66 | 6.5 | 1.8 |
| YC-90L-4 | 1.5 | 1.1 | 220 | 10.5 | 1450 | 70 | 0.68 | 6.5 | 1.8 |
| YC-100L-4 | 2 | 1.5 | 220 | 13.5 | 1450 | 72 | 0.7 | 6.5 | 1.8 |
| YC-112M-4 | 3 | 2.2 | 220 | 19.3 | 1450 | 72 | 0.72 | 6.5 | 1.8 |
| YC-132SA-4 | 4 | 3 | 220 | 25.2 | 1450 | 74 | 0.73 | 6.5 | 1.8 |
| YC-132SB-4 | 5 | 3.7 | 220 | 30 | 1450 | 75 | 0.74 | 6.5 | 1.8 |
| YC-132M-4 | 7.5 | 5.5 | 220 | 32.5 | 1450 | 81 | 0.95 | 6.5 | 1.8 |

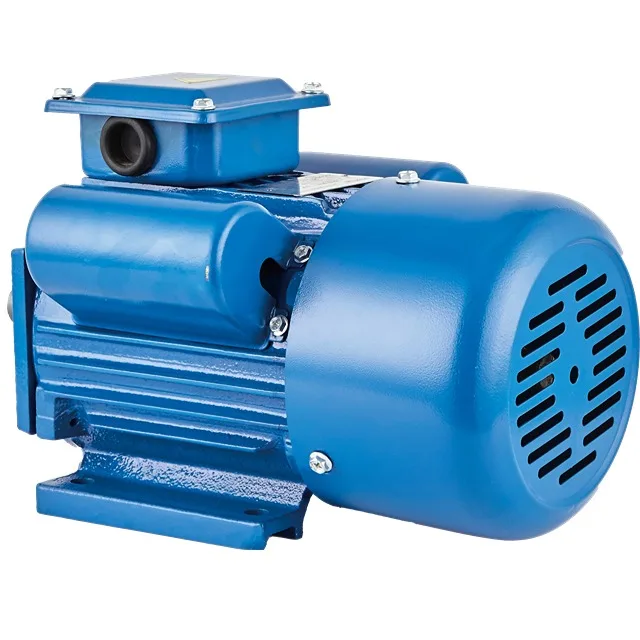

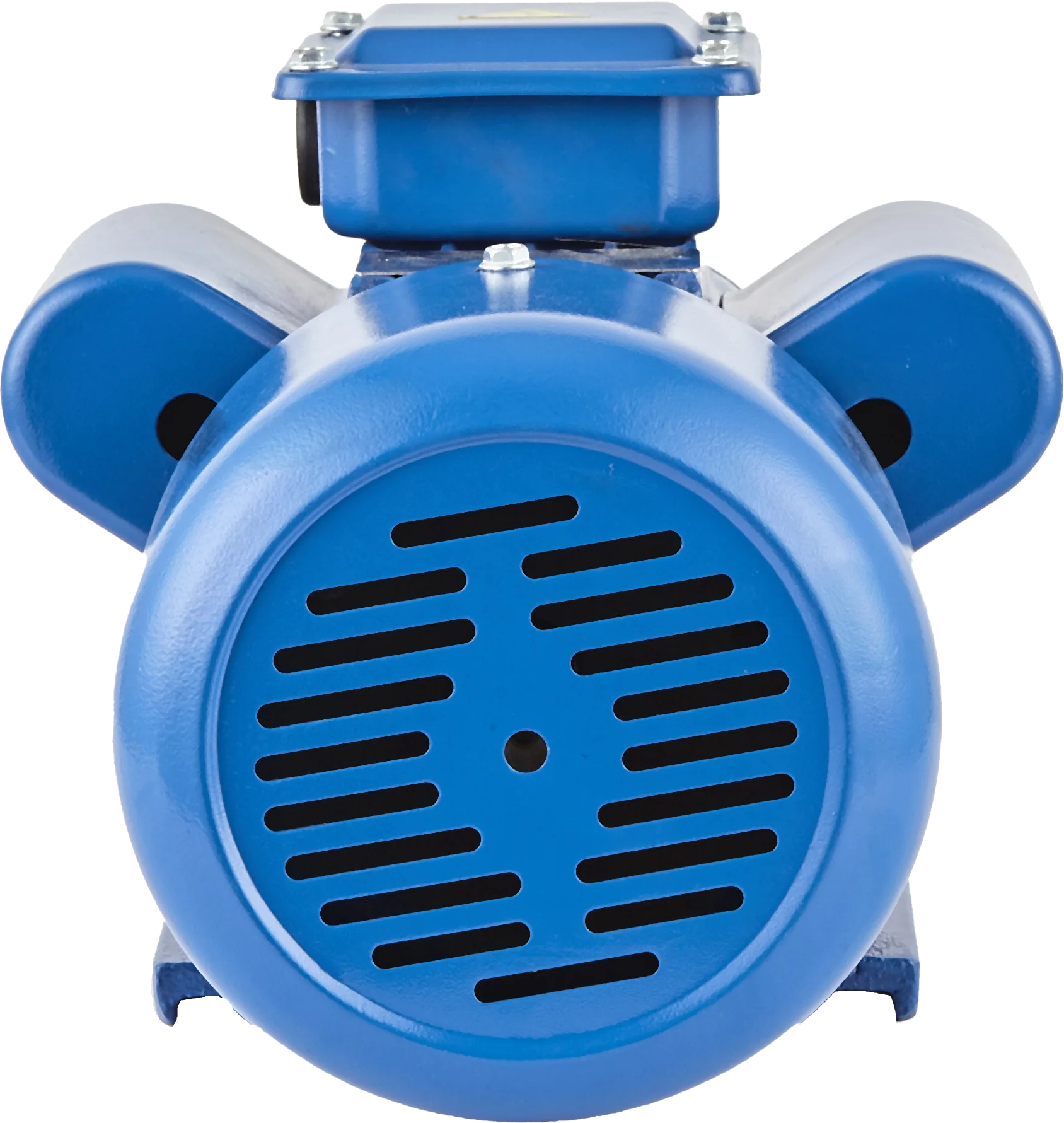

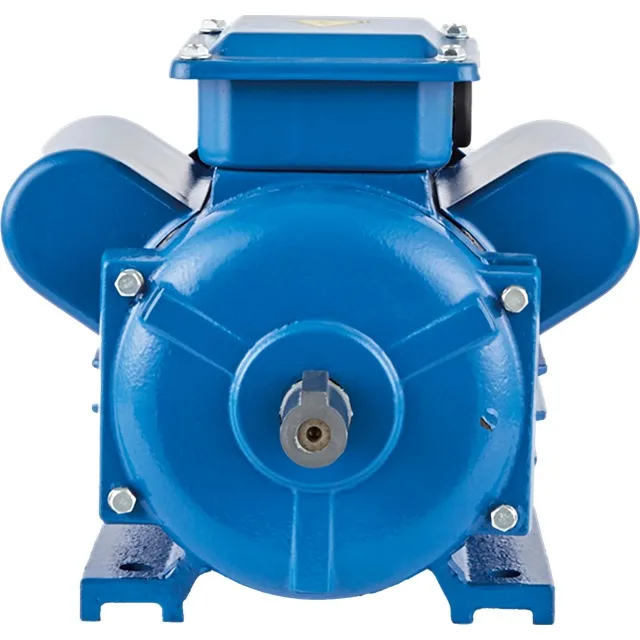

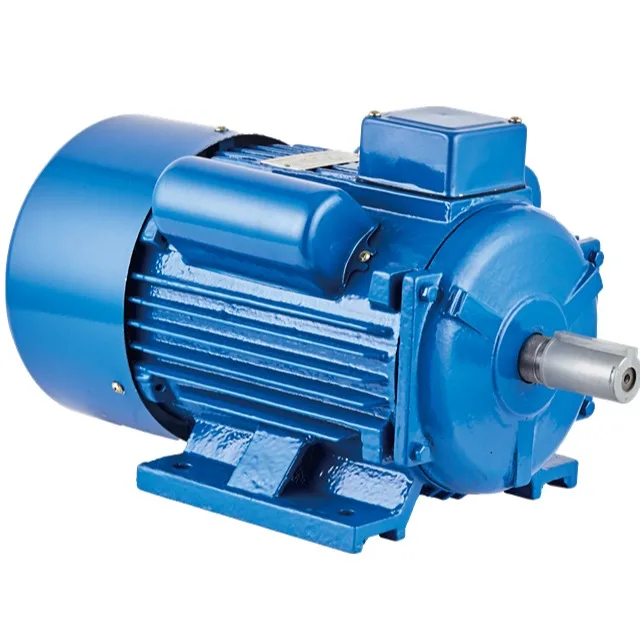

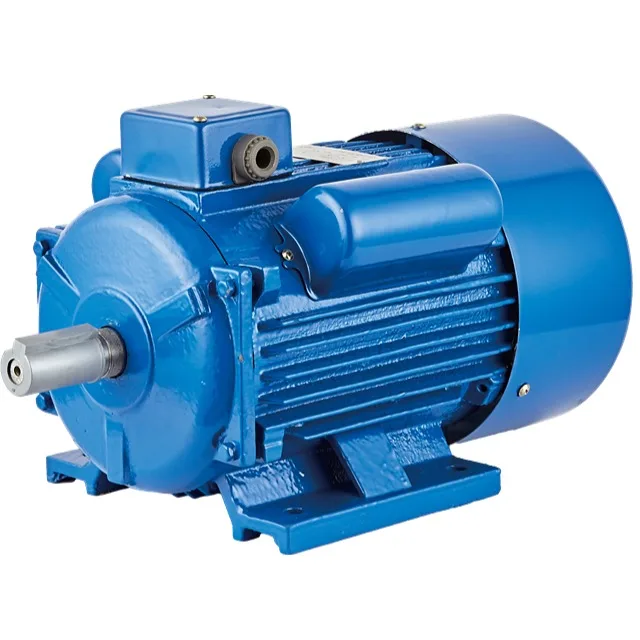

Detailed Images
