Description
Introduce

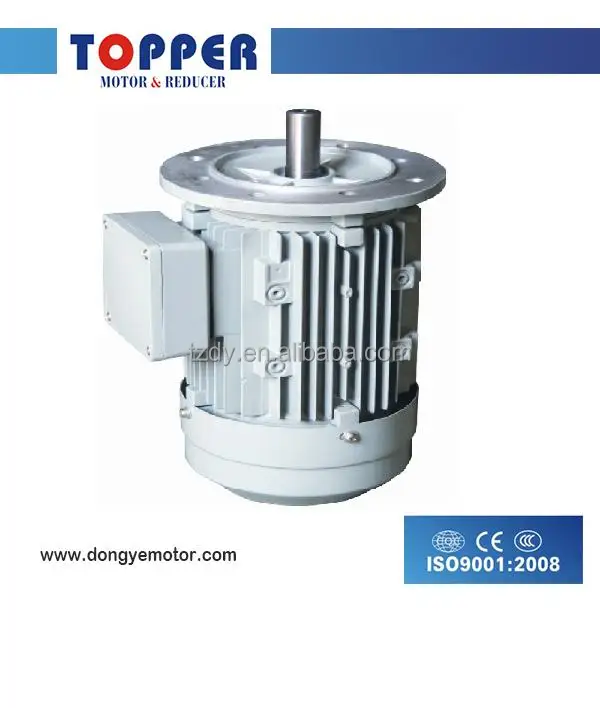

Ms series three phase asynchronous electric motors are defined as totally enclosed, fancooled, squirrel cage type and noted for their novel design, beautiful modelling, compact structure, low noise, high efficiency, large torque, excellent starting performance, easy serving, ect.
Operating Conditions
Ambient temperature: -15≤θ≤40
Altitude:Altitude should be lower than 1000meters above sea level.
Rated voltage:380V Rated frequency:50Hz/60Hz
Connection:Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Duty/Rating:Conntinuous(S1).
Insulation class:F,the temperature rise of the stator winding is examined at 80K(by resistance method).
Protection class:The main body of the motor is IP54,but the terminal box reaches IP55.
Cooling method:IC411.
If the motor of which the frequency,voltage and connection are specially,please stale when ordering.
Specification
Technical Data
Certification
