Product Description

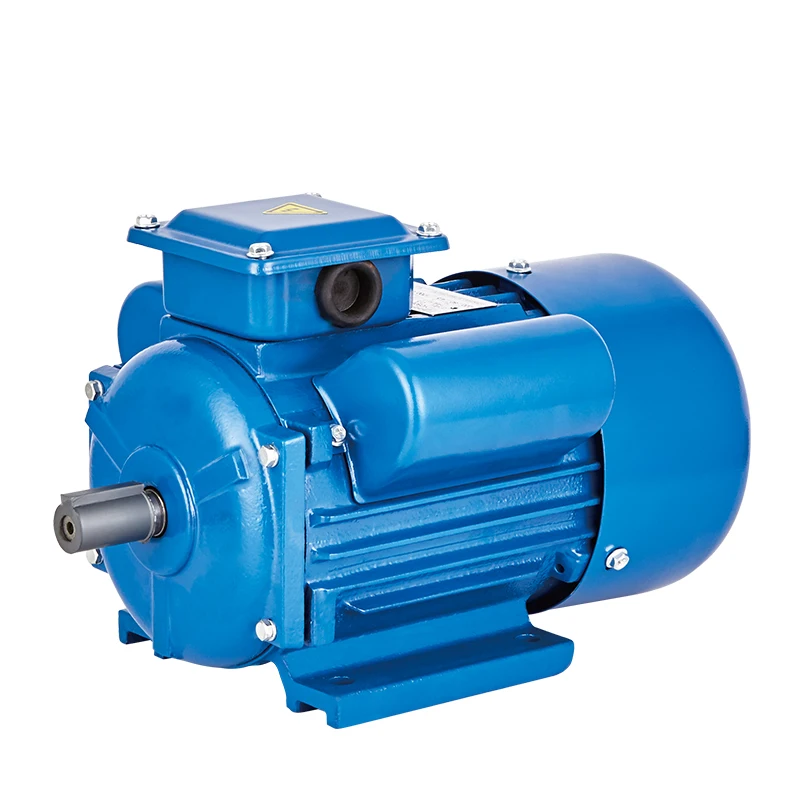

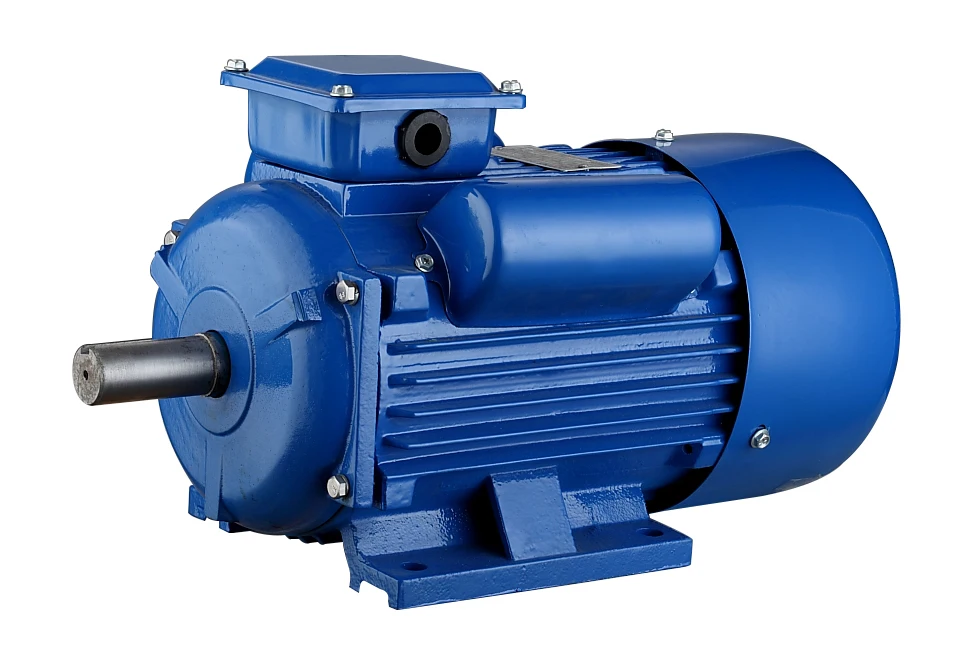

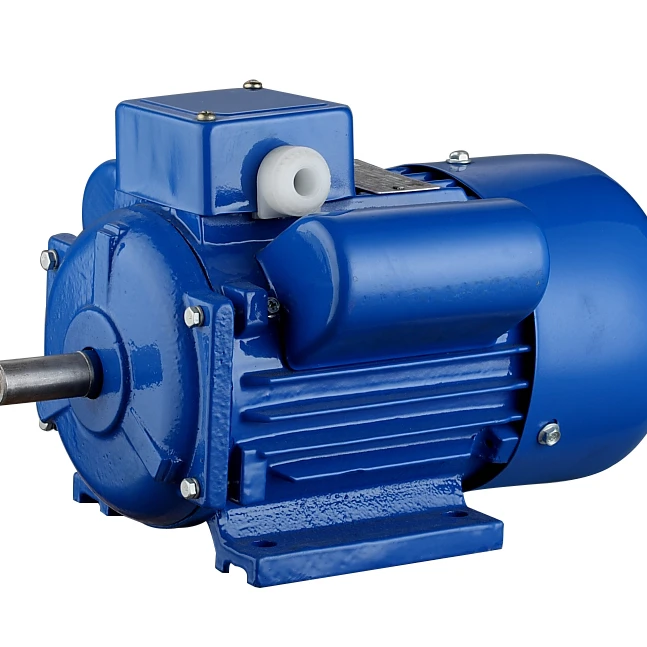

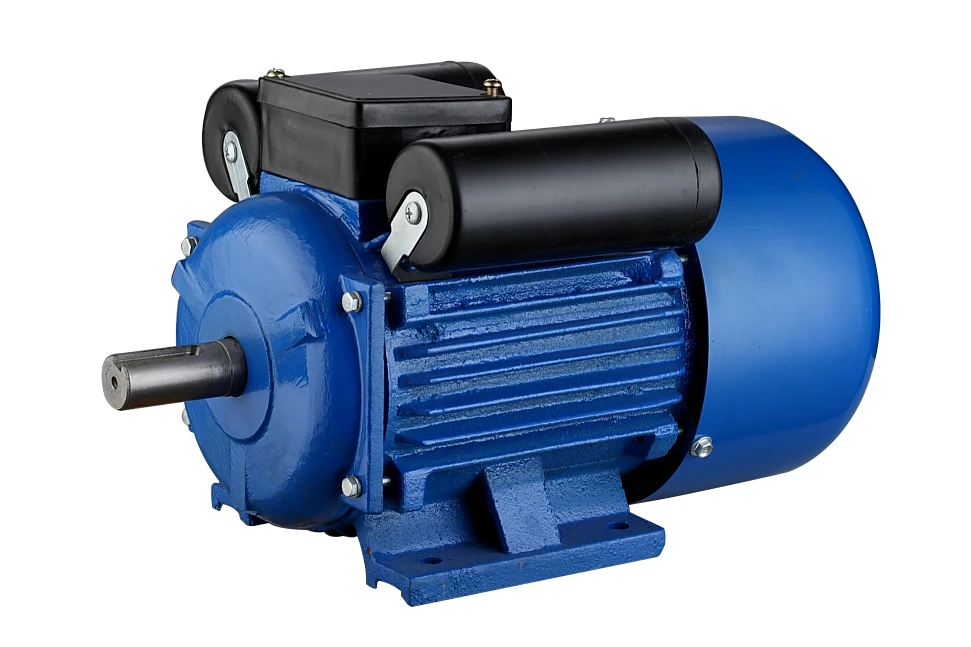

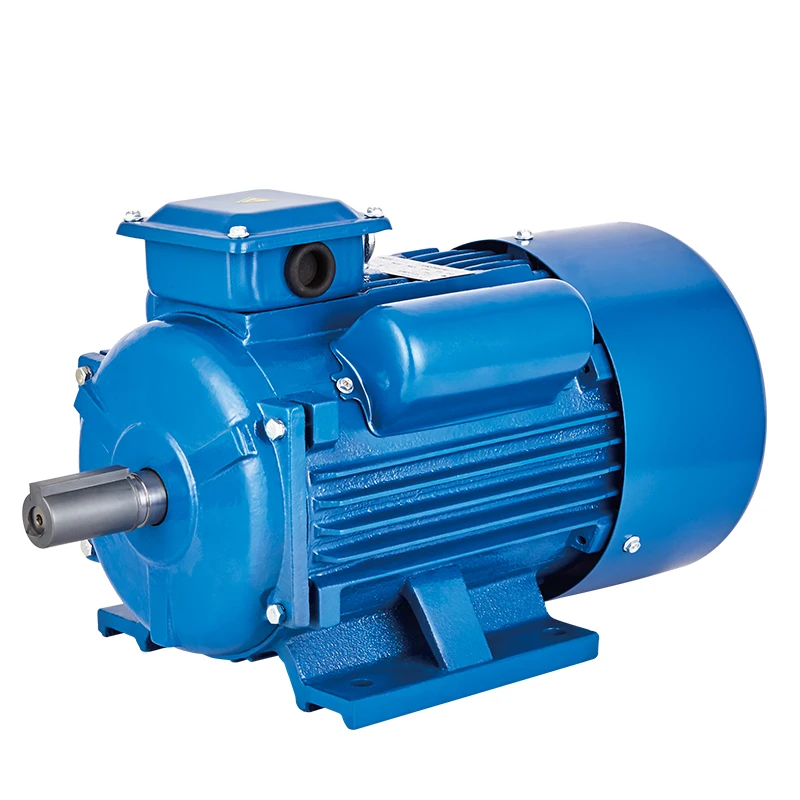

YC SERIES PUMP MOTORS,SINGLE PHASE MOTORS
♦INTRODUCE
♣The YC series heavy-duty single-phase motors are suitable for powering small type machine tools and water pumps,especially for family workshops where only single-phase current is available.Motors of this series are integrated with up-to-date design,built with the best quality materials and attractive appearance.They have outstanding performance,easy maintenance and are reliable.They completely conform to international I.E.C. standards.
♣YC series protected motors are of IP44 totally enclosed fan-cooling type.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.
YC SERIES PUMP MOTORS,SINGLE PHASE MOTORS
♦OPERATING CONDITIONS
♣Ambient temperature:-15°c<Θ<40°c
♣Altitude:not exceed 1000m
♣Rated voltage:220v
♣Rated frequency:50Hz/60Hz
♣Dyty:S1(continuous)
♣Insulation class:B/F
♣Protection class:IP44/IP54
♣Cooling method:IC0141
Rated frequency: 50 HZ or 60 HZ
| TYPE | OUTPUT | VOLTAGE (V) | CURRENT(A) | SPEED(R/MIN) | EFF(%) | POWER FACTOR |
IST/IN | TMA.X/TN | |
| HP | KW | ||||||||
| YC-80A-2 | 0.5 | 0.37 | 220 | 3.7 | 2880 | 62 | 0.73 | 6.5 | 1.8 |
| YC-80B-2 | 0.75 | 0.55 | 220 | 5.3 | 2880 | 65 | 0.73 | 6.5 | 1.8 |
| YC-80C-2 | 1 | 0.75 | 220 | 6.7 | 2880 | 68 | 0.75 | 6.5 | 1.8 |
| YC-90S-2 | 1.5 | 1.1 | 220 | 9.1 | 2880 | 71 | 0.77 | 7 | 1.8 |
| YC-90L-2 | 2 | 1.5 | 220 | 12.1 | 2900 | 72 | 0.78 | 7 | 1.8 |
| YC-100L-2 | 3 | 2.2 | 220 | 17.1 | 2900 | 74 | 0.79 | 7 | 1.8 |
| YC-112M1-2 | 4 | 3 | 220 | 21.4 | 2900 | 76 | 0.84 | 7 | 1.8 |
| YC-112M2-2 | 8 | 3.7 | 220 | 24.8 | 2900 | 79 | 0.86 | 7 | 1.8 |
| YC-80A-4 | 1/3 | 0.25 | 220 | 3.4 | 1450 | 56 | 0.6 | 6 | 1.8 |
| YC-80B-4 | 0.5 | 0.37 | 220 | 4.5 | 1450 | 60 | 0.62 | 6 | 1.8 |
| YC-80C-4 | 0.75 | 0.55 | 220 | 6 | 1450 | 64 | 0.65 | 6 | 1.8 |
| YC-90S-4 | 1 | 0.75 | 220 | 7.7 | 1450 | 67 | 0.66 | 6.5 | 1.8 |
| YC-90L-4 | 1.5 | 1.1 | 220 | 10.5 | 1450 | 70 | 0.68 | 6.5 | 1.8 |
| YC-100L-4 | 2 | 1.5 | 220 | 13.5 | 1450 | 72 | 0.7 | 6.5 | 1.8 |
| YC-112M-4 | 3 | 2.2 | 220 | 19.3 | 1450 | 72 | 0.72 | 6.5 | 1.8 |
| YC-132SA-4 | 4 | 3 | 220 | 25.2 | 1450 | 74 | 0.73 | 6.5 | 1.8 |
| YC-132SB-4 | 5 | 3.7 | 220 | 30 | 1450 | 75 | 0.74 | 6.5 | 1.8 |
| YC-132M-4 | 7.5 | 5.5 | 220 | 32.5 | 1450 | 81 | 0.95 | 6.5 | 1.8 |
YC SERIES PUMP MOTORS,SINGLE PHASE MOTORS
EXPLODEDVIEW:
YC SERIES PUMP MOTORS,SINGLE PHASE MOTORS
Detailed Images
YC SERIES PUMP MOTORS,SINGLE PHASE MOTORS
Production line:
YC SERIES PUMP MOTORS,SINGLE PHASE MOTORS
Certifications
Packaging & Shipping
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-30days, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
