Description
Product Description
Model selection
1.Installation method: Horizontal ( foot) installation, Vertical ( flange) installation
2.Requirement for the output shaft of motor: 18,22,28,32,40,50mm
3.Power requirement: 100W, 200W....3700W
4.Speed of the motor you need
5.Ratio: Motor input speed/output speed. Or advise your required output speed. We have 3,5,10...1800
6.Voltage: Three phase 220V/380V 50/60Hz; Single phase 110, 220V 50/60Hz
7.Additional parts:DC 90V brake unit; Hand release brake unit; DC 24V brake unit, 110V forced draft fan; 220V forced draft fan.
8.Position of terminal box: view from output shaft
9.Wire inlet direction
Features of AC Gear motor
1.Small size, light weight, knot no noise, compact, maintenance-free
2.High tightness. Geared motor output section has the configuration of seals and O-ring to avoid grease refluxing and damage of insulation aging .
3.High efficiency. The gear motor products using the new silicon steel stamping die design, high precision core, strong magnetic properties, geared motor cooling structure using the new shape .
4.Optimal design, the ST ( speed - torque ) features optimized so that gear motors can work for a variety of operating environments.
5.Customized, our company has developed its own design team, geared motors can be customized according to the customer 's specific needs specifications.
Application:
Various industrial production lines, coveyor machinery, food machinery, medical machinery, printing machinery, office facility, instrument, automatic mahjong machine

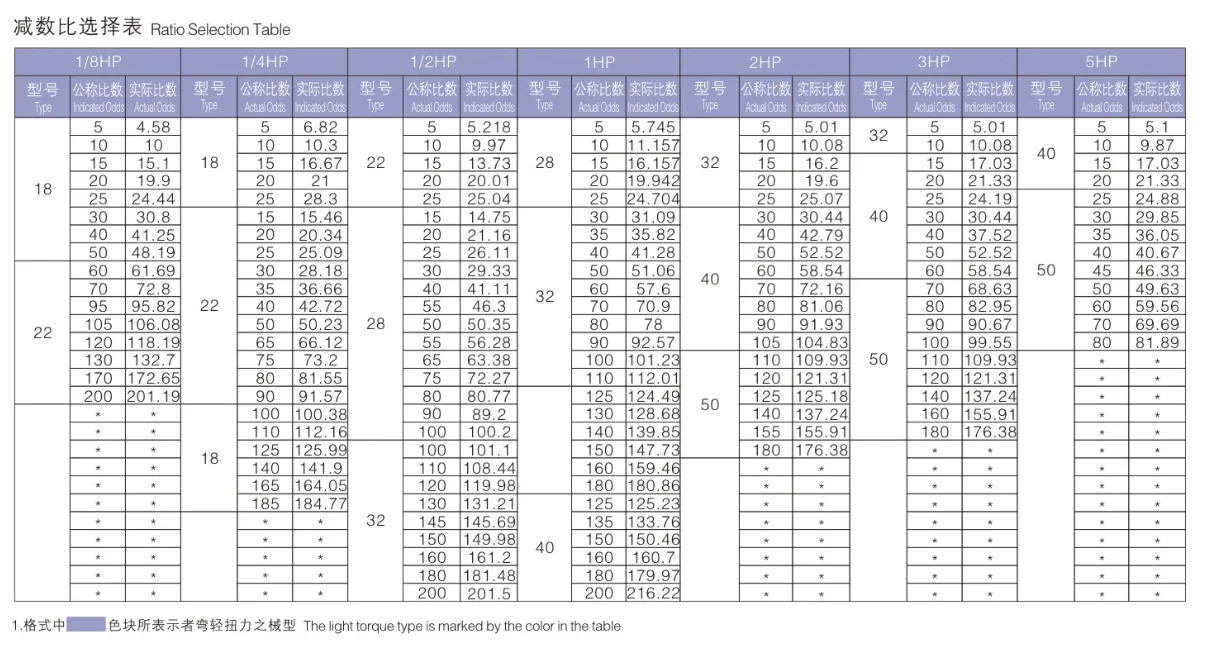

| 1/8hp-100w | 1/4hp-200w | 1/2hp-400w | 1hp-750w | 2hp-1.5kw | 3hp-2.2kw | 5hp-3.7kw | ||||||||||||||
| Type | Indicated Odds |
Actual odds |
Type | Indicated Odds |
Actual odds |
Type | Indicated Odds |
Actual odds |
Type | Indicated Odds |
Actual odds |
Type | Indicated Odds |
Actual odds |
Type | Indicated Odds |
Actual odds |
Type | Indicated Odds |
Actual odds |
| 18 | 5 | 4.58 | 18 | 5 | 6.82 | 22 | 5 | 5.218 | 28 | 5 | 5.745 | 32 | 5 | 5.01 | 32 | 5 | 5.01 | 40 | 5 | 5.1 |
| 10 | 10 | 10 | 10.3 | 10 | 9.97 | 10 | 11.157 | 10 | 10.08 | 10 | 10.08 | 10 | 9.87 | |||||||
| 15 | 15.1 | 15 | 16.67 | 15 | 13.73 | 15 | 16.157 | 15 | 16.2 | 40 | 15 | 17.03 | 15 | 17.03 | ||||||
| 20 | 19.9 | 20 | 21 | 20 | 20.01 | 20 | 19.942 | 20 | 19.6 | 20 | 21.33 | 20 | 21.33 | |||||||
| 25 | 24.44 | 25 | 28.3 | 25 | 25.04 | 25 | 24.704 | 25 | 25.07 | 25 | 24.19 | 50 | 25 | 24.88 | ||||||
| 40 | 41.25 | 20 | 20.34 | 20 | 21.16 | 35 | 35.82 | 40 | 42.79 | 40 | 37.52 | 35 | 36.05 | |||||||
| 50 | 48.19 | 25 | 25.09 | 25 | 26.11 | 40 | 41.28 | 50 | 52.52 | 50 | 52.52 | 40 | 40.67 | |||||||
Packaging & Shipping
Company Information
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2001,sell to South Asia(30.00%),South America(20.00%),Western Europe(20.00%),Southeast Asia(20.00%),Eastern Asia(5.00%),Africa(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Electric Motor, Worm Reducer, AC Gear Motor
4. why should you buy from us not from other suppliers?
The company manufacture the motor and worm reducer together.It is convenient to the customer. The company have more than 10 years' experience to produce electirc motor,we have strictly quality control system.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
