Description
INTRODUCE
Y2 series three-phase asynchronous motors,developed with new techniques,are renewed and upgrading products based on Y series motors.
Y2 series motors are in total-sealed design and fan cooled type,squirrel cage type and novel in design and nice in appearance, compact structure.lower noise,high efficiency,large torque,excellent starting performance,easy maintaince,etc. this series motor adopt F class insulation and designed as the insulation system addessing method in accordance of international practice.
Y2 series motors can be widly applied to various of driving equipments such as machine tools, blowers pumps,gear boxes,compressors,teansporters,agricultural machines etc.
Operating conditons
altitude:no higher than 1000meters from sea level
rated voltage:380+/-5%
rated frequency:50HZ or 60HZ
Protection class:IP44,IP54,IP55
Insulation class :B/F
Coolong type:IC411
Duty type:S1
Connection:star-connection for up to 3kw,delta-connection for 4kw and above

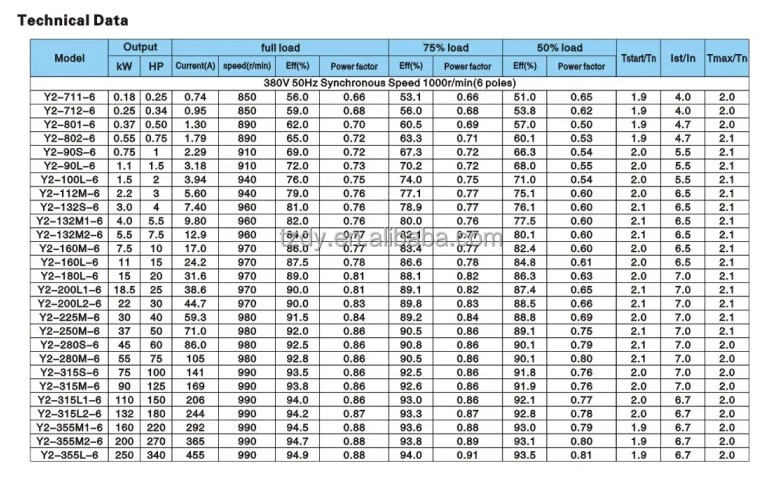

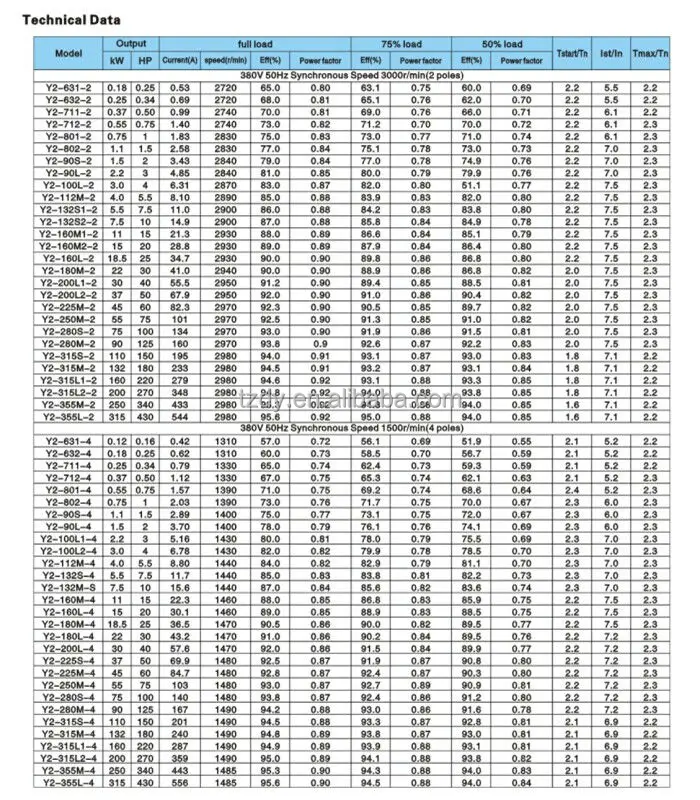

Specification

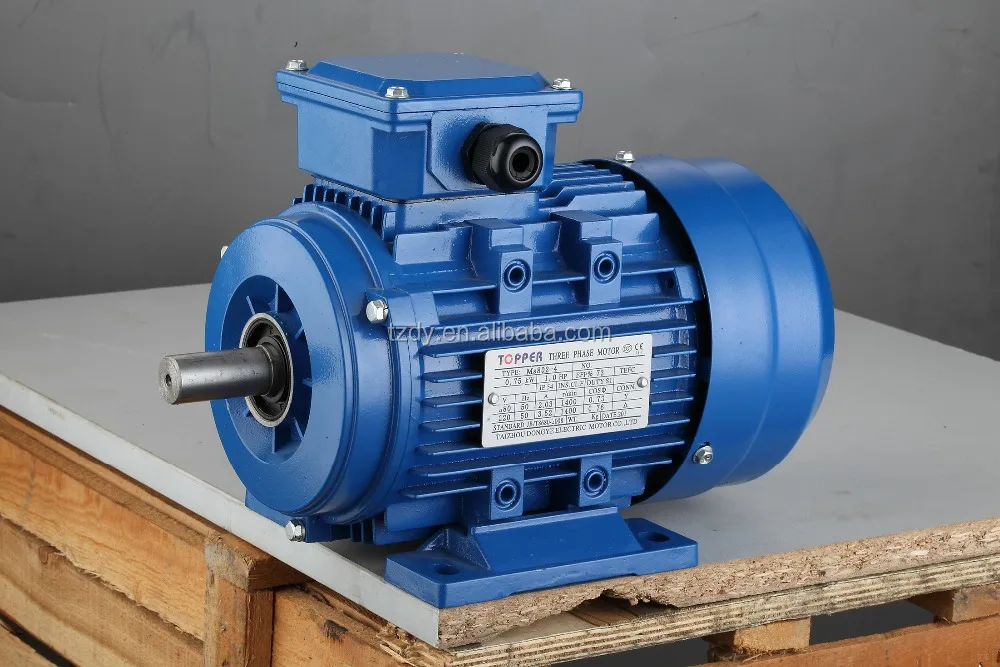

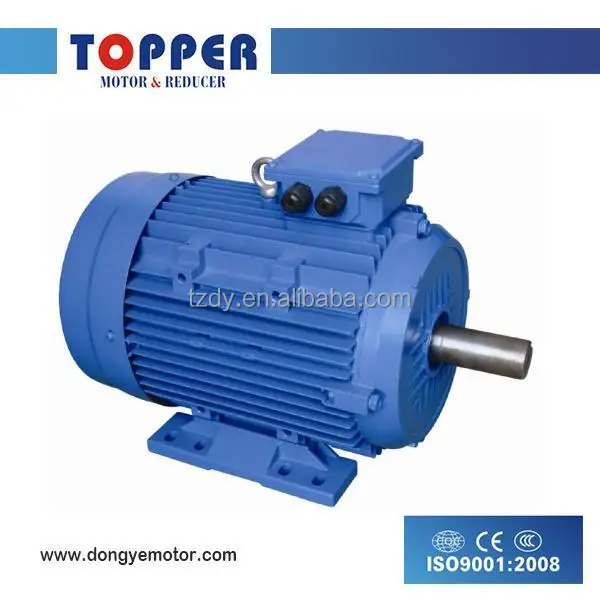

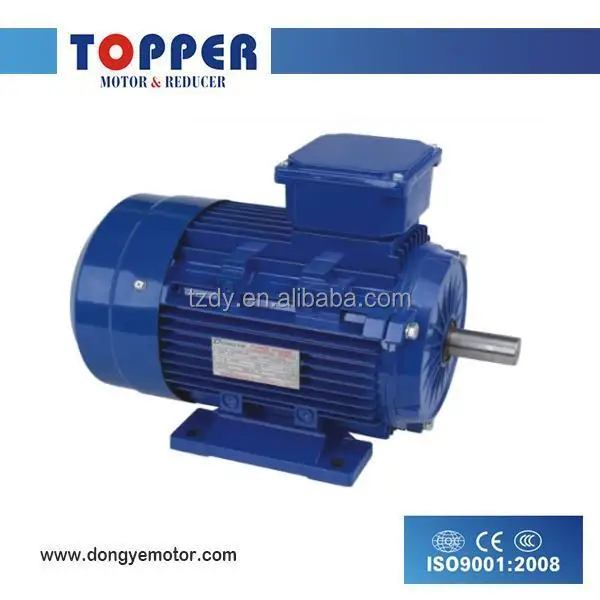

Pictures For Reference
