Product Description

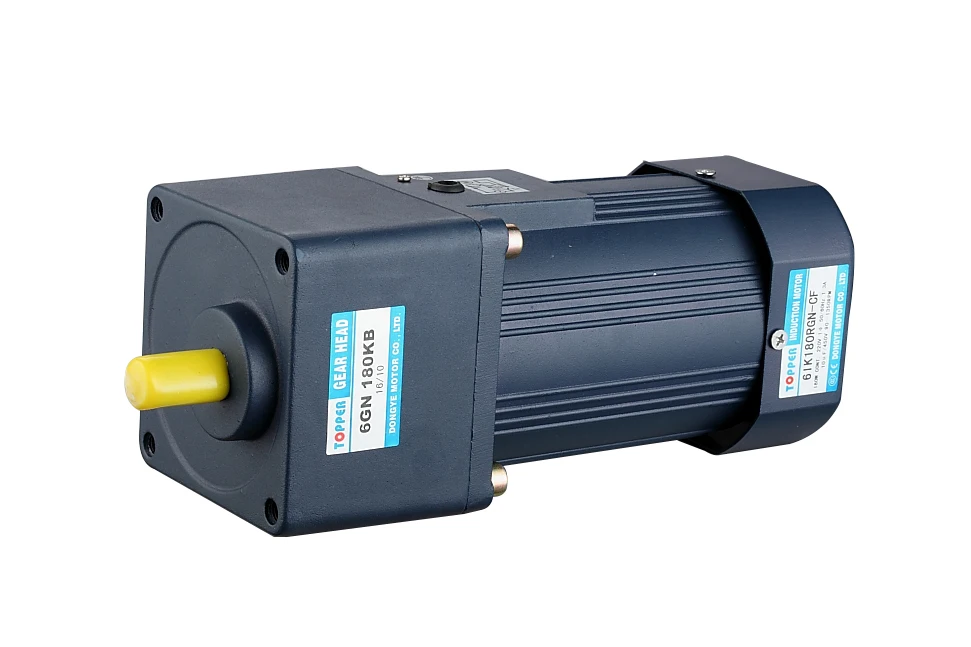

This series of mechatronic products are combined by three parts :Micro gear reducer or K Series ,electronic governor ,micro motor capable of operating in reverse direction
Through the different combinations of the three parts ,the whole machine can have different performance .the whole machine can not only use the gearbox to obtain any fixed speed ,but aslo can achieve the goal of stepless speed regulation through electronic speed governor .due to have wind range of reduction ,high force -energy .convenient to use and higher operation reliability ,etc .this series or products are widely used in light industry machinery ,packaging machinery ,food machinery ,textile machinery ,cosmetics (beauty) machinery,printing equipment ,instruments and various automation equipmenbt ,production lines
The micro gear reducer of k series using high precision gear ,the oil seal ,O ring gear box ,the lubricating grease ,with the characteristics of high efficiency .low noise ,long service life ,small volume ,high power ,etc .the product has wide speed range ,the rations are 13-1:1500 ,and can make others according to the customer's special requirements for speed
The micro motors are :Micro AC motor (Single phase :220v ,110v ,etc .three phase :220v ,380v ),ZYT(sz )series of micro Dc motor (Frame size :55-110,voltage :12,24,48,110,220v ) .WZJ series of brushless DC motor
The governor are :US/SS/ AC electronic governor ,the stepless speed governor of WK,SK series .with characteristics of adjustable speed ,no crawing phenomenon
Ensure the frequent positive inversion of the motor ,the motor aslo can be equipped with micro electomagnet brake ,achieve power parking ,accuracy control the stop position

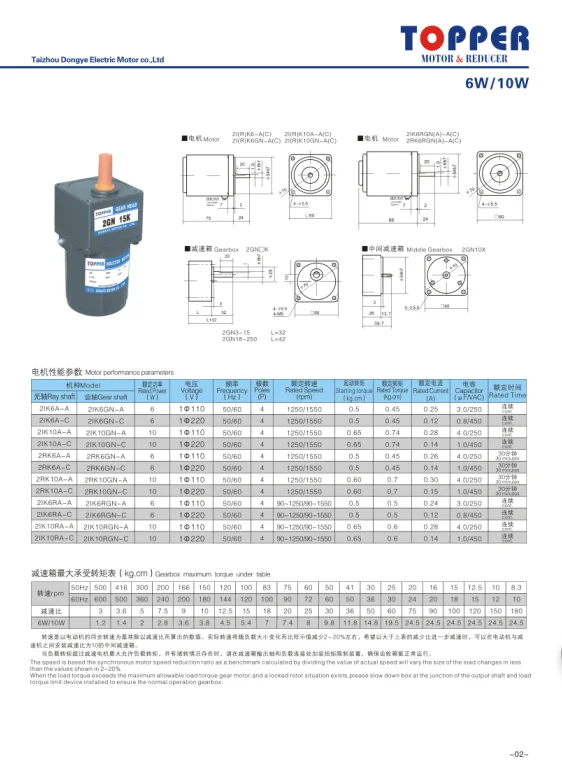

| Model | Rated power (W) |
Voltage (V) |
Frequency (hz) |
Rated speed (Rpm) |
Pole (P) |
Starting torque (Kg .cm) |
Rated torque (Kg.cm) |
capacitor (Uf/vac) |
Rated time | |
| Ray shaft | gear shaft | |||||||||
| 2lk6A-A | 2IK6GN-A | 6 | 1Φ110 | 50/60 | 1250/1550 | 4 | 0.5 | 0.45 | 3/250 | Cont |
| 2lk6A-A | 2IK6GN-C | 6 | 1Φ220 | 50/60 | 1250/1550 | 4 | 0.5 | 0.45 | 0.8/450 | Cont |
| 2lk6A-A | 2IK10GN-A | 10 | 1Φ110 | 50/60 | 1250/1550 | 4 | 0.65 | 0.74 | 4/250 | Cont |
| 2lk6A-A | 2IK6GN-C | 10 | 1Φ220 | 50/60 | 1250/1550 | 4 | 0.65 | 0.74 | 1/450 | Cont |
| 2RK6A-A | 2RK6GN-A | 6 | 1Φ110 | 50/60 | 1250/1550 | 4 | 0.5 | 0.45 | 4/250 | 30mins |
| 2RK6A-A | 2RK6GN-C | 6 | 1Φ220 | 50/60 | 1250/1550 | 4 | 0.5 | 0.45 | 1/450 | 30mins |
| 2RK6A-A | 2RK10GN-A | 10 | 1Φ110 | 50/60 | 1250/1550 | 4 | 0.6 | 0.7 | 4/250 | 30mins |
| 2RK6A-A | 2RK10GN-C | 10 | 1Φ220 | 50/60 | 1250/1550 | 4 | 0.6 | 0.7 | 1/450 | 30mins |
| 2lk6A-A | 2IK6RGN-A | 6 | 1Φ110 | 50/60 | 90-1250/90-1550 | 4 | 0.5 | 0.5 | 3/250 | Cont |
| 2lk6A-A | 2IK6RGN-C | 6 | 1Φ220 | 50/60 | 90-1250/90-1550 | 4 | 0.5 | 0.5 | 0.8/450 | Cont |
| 2lk6A-A | 2IK10RGN-A | 10 | 1Φ110 | 50/60 | 90-1250/90-1550 | 4 | 0.65 | 0.6 | 4/250 | Cont |
| 2lk6A-A | 2IK10GN-C | 10 | 1Φ220 | 50/60 | 90-1250/90-1550 | 4 | 0.65 | 0.6 | 1/450 | Cont |
Packaging & Shipping
Company Information
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-30days, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
