Description
Features:
1.High efficiency,elegant apperance
2.Run stably with low noise and lower temperature increase

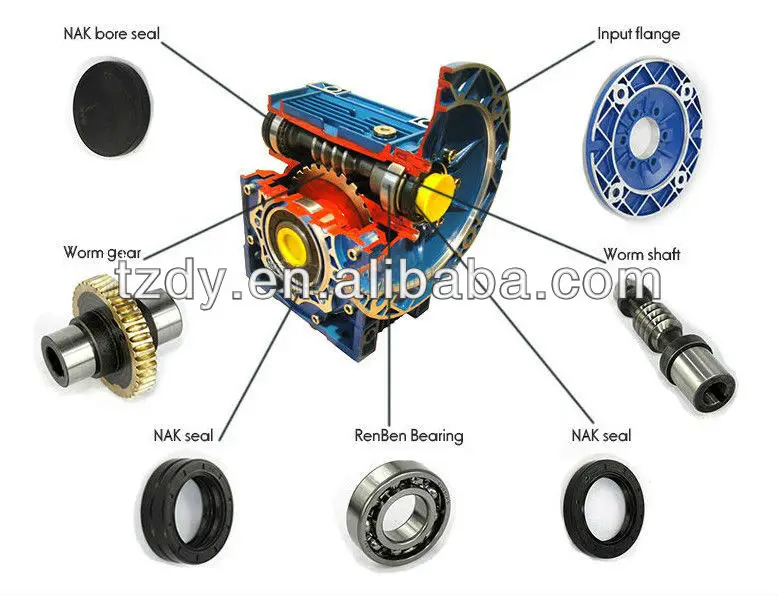

3.High accuracy worm gear and worm shaft

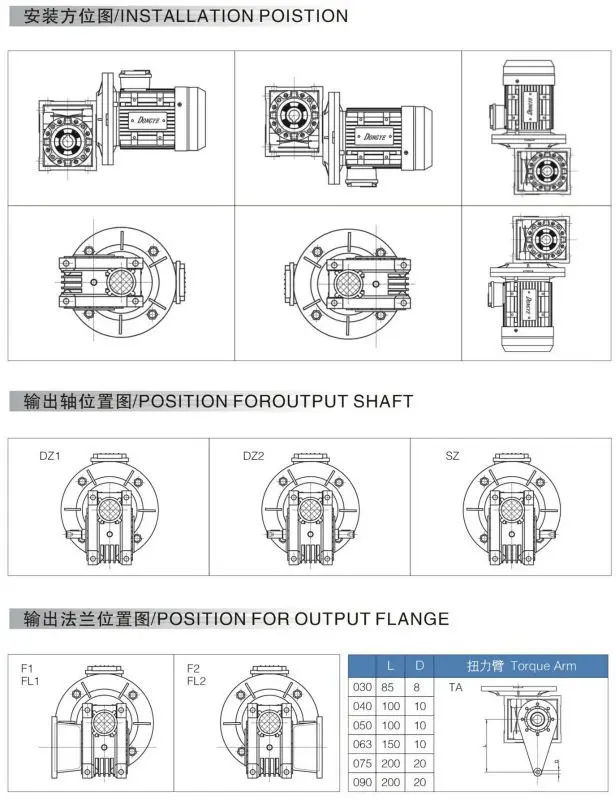

4.Installed in multiple surface,hollow output shaft,various output and input type,can join with other transmission parts easily
5.Compact,light,easy mounting and linking
Specification

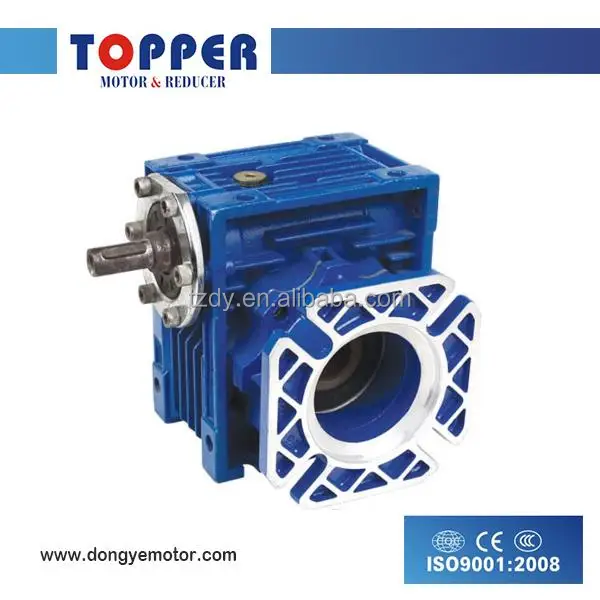

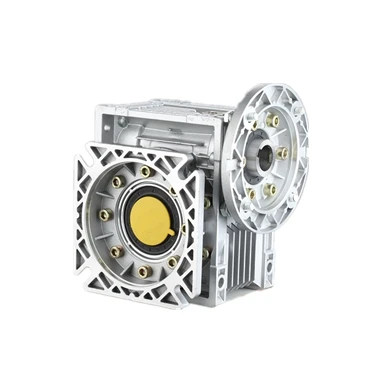

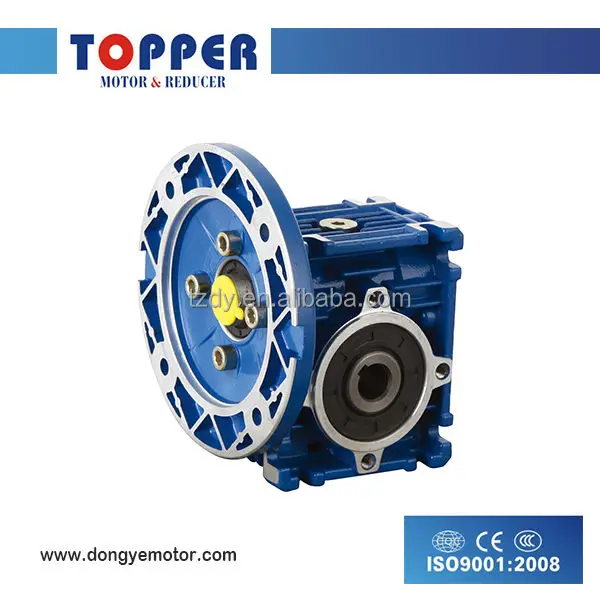

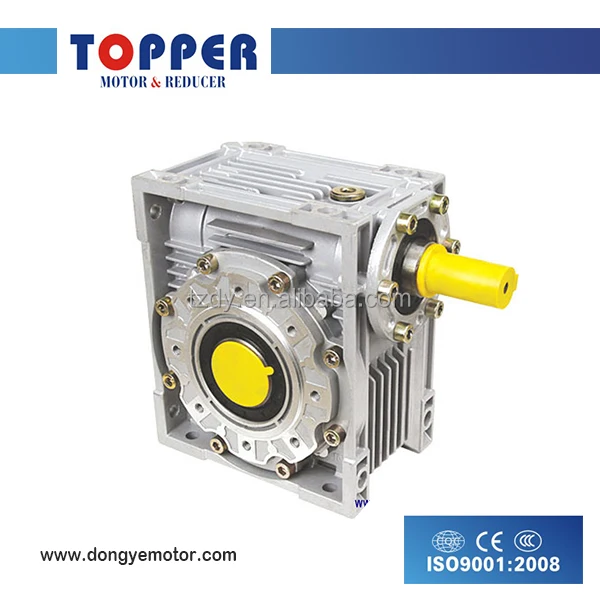

High quality worm gear reducer
Aluminum and cast iron worm gear reducer,model:NMRV025-NMRV150,ratio speed:5-100
Technical data:
1.Worm reducer ranging from 020 to 150
2.Speed ratio:ranging from 7.5 to 100
3.Power:ranging from 0.06 to 15kw
4.Output torque:from 2.6 to 1074 N.M
CERTIFICATION
PICTURE FOR REFERENCE
