Description

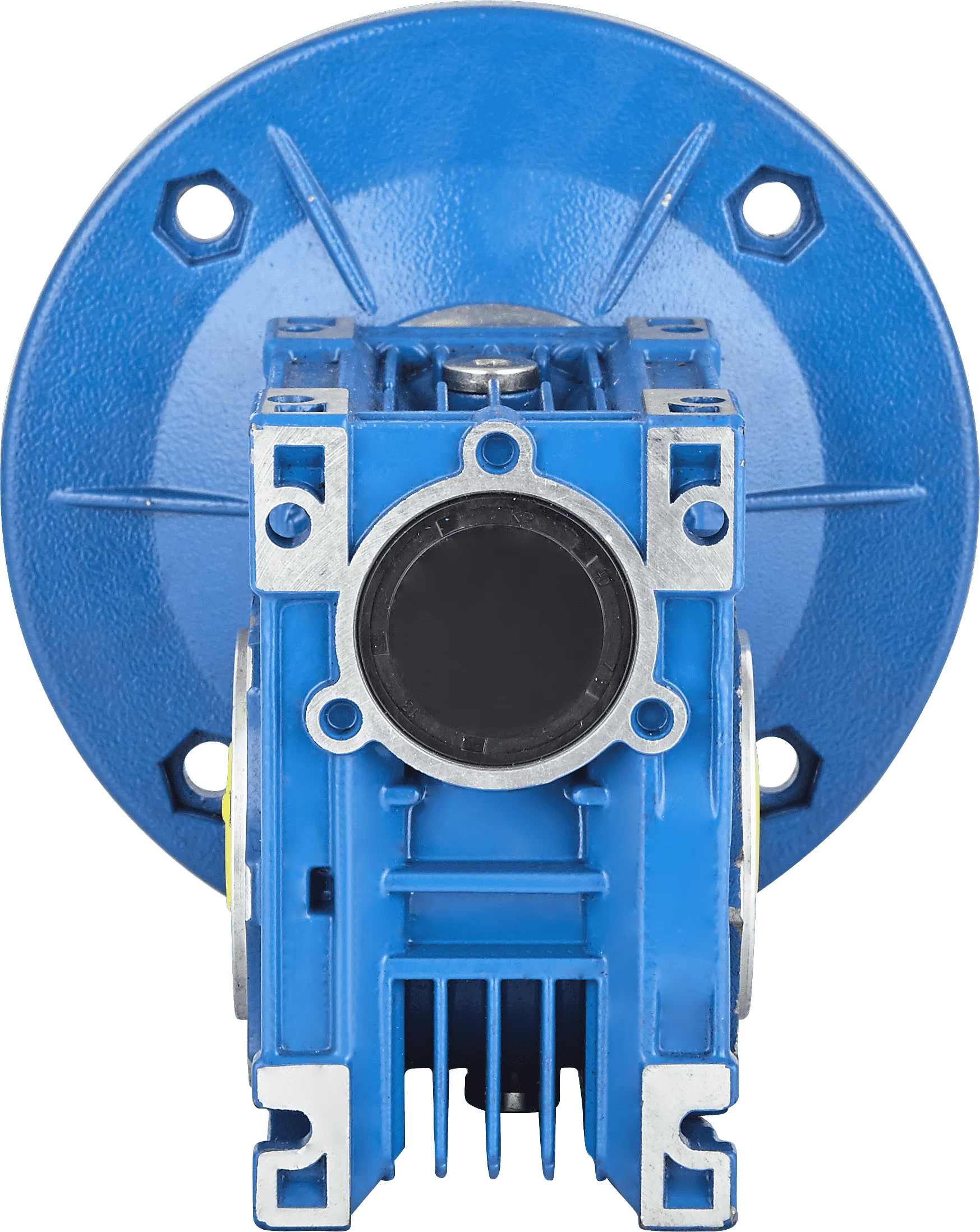

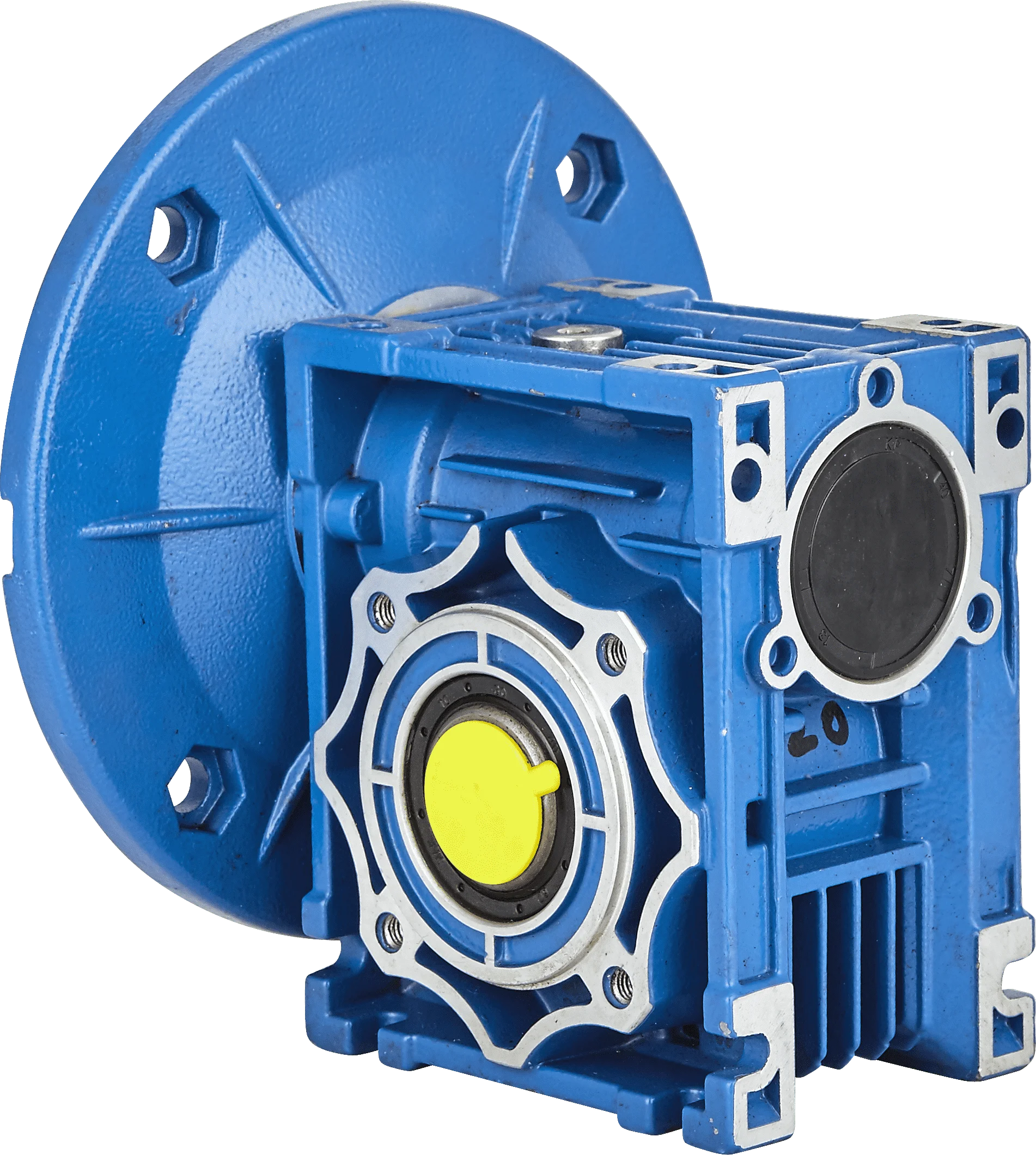

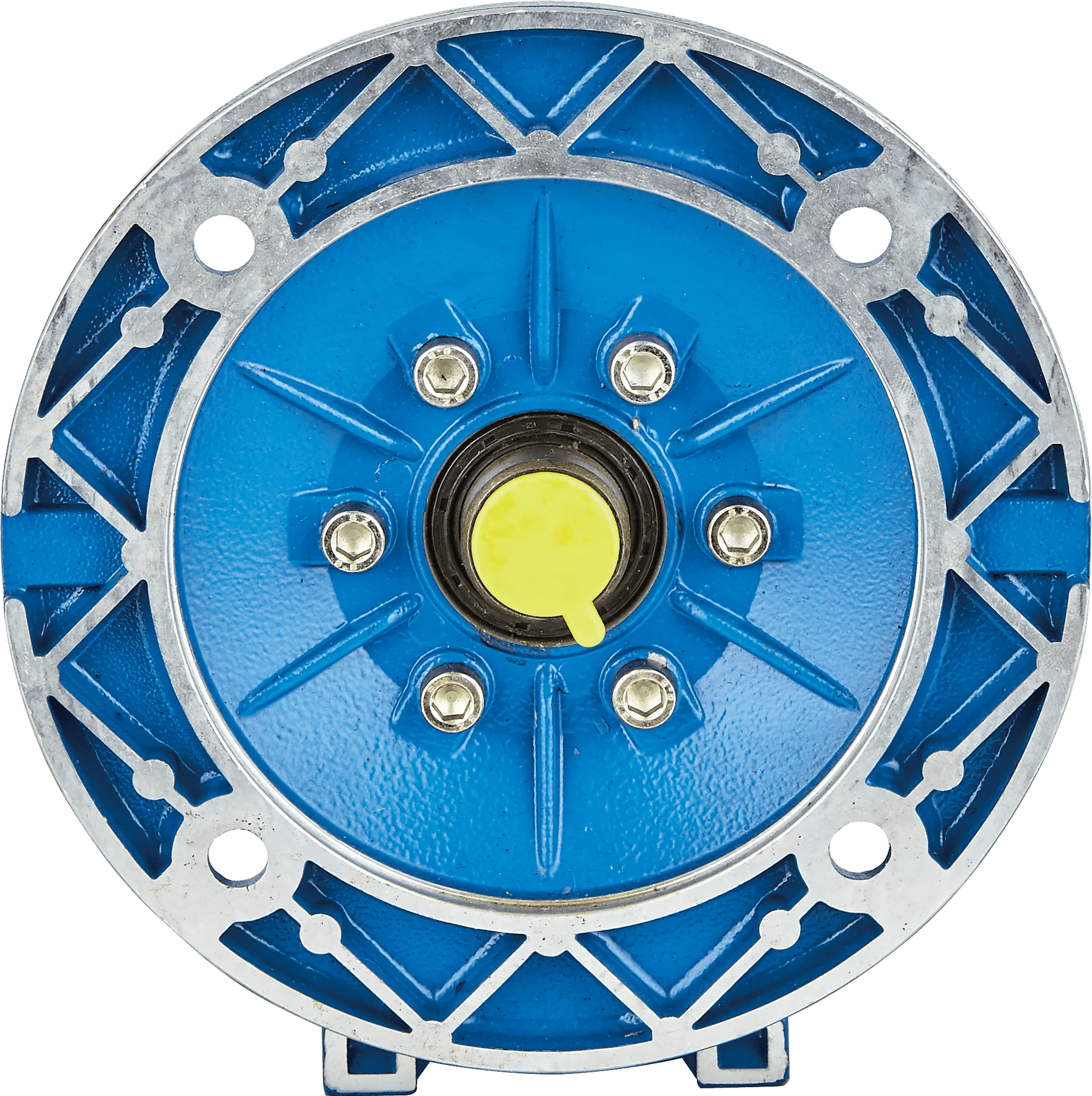

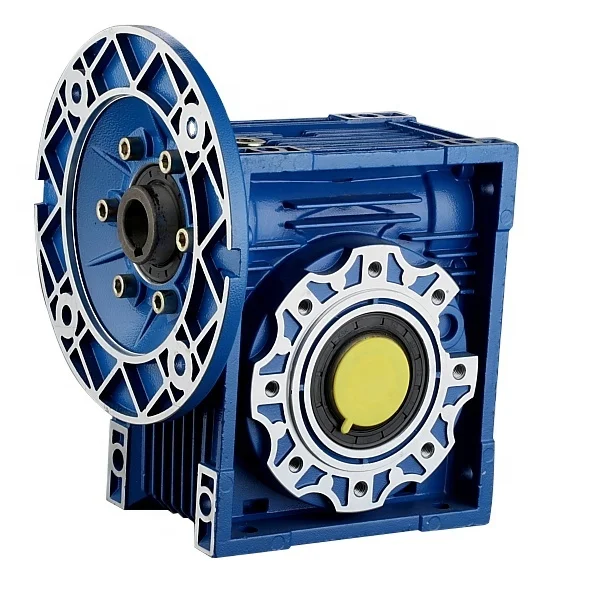

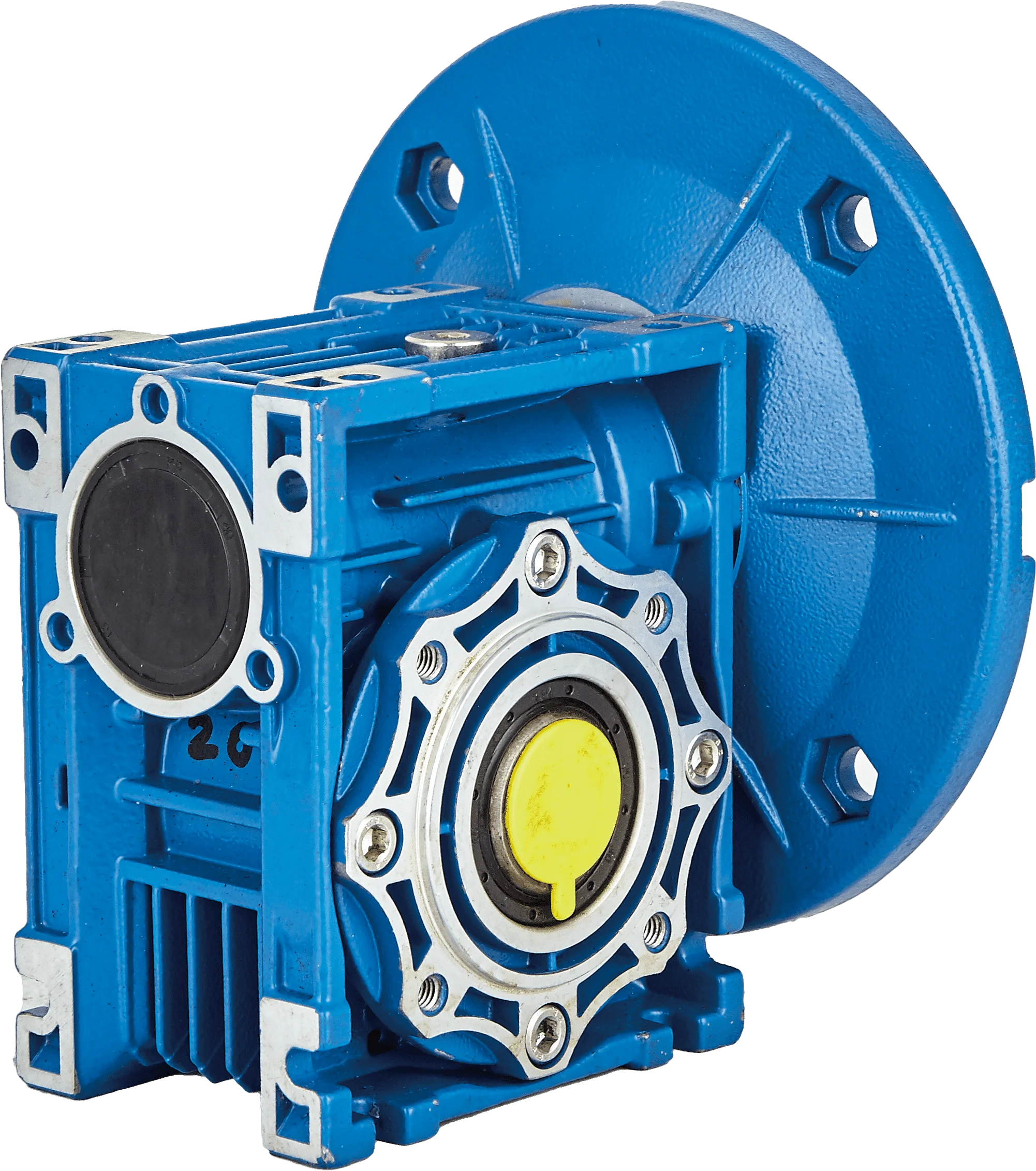

Vertical Aluminum Shell Flange Ratio 100 Gearbox Worm Reducer
NMRV worm gear reducer with output shaft:
1.High quality aluminium alloy
2.Large output torque
3.Smooth running and low noise
NMRV worm gear reducer with output shaft:
1) High quality aluminum alloy die cast gearbox
2) High accuracy worm gear and worm shaft
3) Less noise and lower temperature increase
4) Easy mounting and linking, high efficiency
5) Power: 0.06 - 15kW
6) Output torque: 2.7 - 1,760N.m
7) Transmission rate: 5 - 100 Inner packing: CartonOuter packing: Wooden case
You also can order color for silver, green, and other color
8)model number:NR025,NRV30,NRV40,NRV050,NRV063,NRV075,NRV090,NRV110,NRV130,NRV150
Vertical Aluminum Shell Flange Ratio 100 Gearbox Worm Reducer
| model | PAM IEC | N | M | P | 7.5D | 10D | 15D | 20D | 25D | 30D | 40D | 50D | 60D | 80D |
| NMRV030 | 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | / | / | / |
| NMRV030 | 63B14 | 60 | 75 | 90 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | / | / | / |
| NMRV030 | 56B5 | 80 | 100 | 120 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| NMRV030 | 56B14 | 50 | 65 | 80 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| NMRV040 | 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | / | / | / |
| NMRV040 | 71B14 | 70 | 85 | 105 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | / | / | / |
| NMRV040 | 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| NMRV040 | 63B14 | 60 | 75 | 90 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| NRMV050 | 90B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | / | / | / | / | / |
| NRMV050 | 80B14 | 80 | 100 | 120 | 19 | 19 | 19 | 19 | 19 | / | / | / | / | / |
| NRMV050 | 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| NRMV050 | 71B14 | 70 | 85 | 105 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| NMRV063 | 90B5 | 130 | 165 | 200 | 24 | 24 | 24 | 24 | 24 | 24 | / | / |
Vertical Aluminum Shell Flange Ratio 100 Gearbox Worm Reducer
Packaging & Shipping
Vertical Aluminum Shell Flange Ratio 100 Gearbox Worm Reducer
Company Information
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-30days, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
