Description
Product Description
TPRV WORM SPEED REDUCER,FA&FB OUTPUT FLANGE REDUCER,GEAR BOX
Advantage of the products:
NMRV worm and gear reducer:
1.High quality aluminium alloy
2.Large output torque
3.Smooth running and low noise
4.High speed ratio
TPRV WORM SPEED REDUCER,FA&FB OUTPUT FLANGE REDUCER,GEAR BOX
Specification:
| model | PAM IEC | N | M | P | 7.5D | 10D | 15D | 20D | 25D | 30D | 40D | 50D | 60D | 80D |
| NMRV030 | 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | / | / | / |
| NMRV030 | 63B14 | 60 | 75 | 90 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | / | / | / |
| NMRV030 | 56B5 | 80 | 100 | 120 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| NMRV030 | 56B14 | 50 | 65 | 80 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| NMRV040 | 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | / | / | / |
| NMRV040 | 71B14 | 70 | 85 | 105 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | / | / | / |
| NMRV040 | 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| NMRV040 | 63B14 | 60 | 75 | 90 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| NRMV050 | 90B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | / | / | / | / | / |
| NRMV075 | 100/112B5 | 180 | 215 | 250 | 28 | 28 | 28 | / | / | / | / | / | / | / |
| NRMV075 | 100/112B14 | 110 | 130 | 160 | 28 | 28 | 28 | / | / | / | / | / | / | / |
| NRMV075 | 90B5 | 130 | 165 | 200 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | / | / | / |
| NRMV075 | 90B14 | 95 | 115 | 140 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | / | / | / |
| NMRV090 | 100/112B5 | 180 | 215 | 250 | / | / | / | / | 24 | 24 | 24 | 24 | 24 | 24 |
| NMRV090 | 100/112B14 | 110 | 130 | 160 | / | / | / | / | 24 | 24 | 24 | 24 | 24 | 24 |
| NMRV090 | 90B5 | 130 | 165 | 200 | / | / | / | / | / | / | / | 19 | 19 | 19 |
| NMRV090 | 90B14 | 95 | 115 | 140 | / | / | / | / | / | / | / | 19 | 19 | 19 |
TPRV WORM SPEED REDUCER,FA&FB OUTPUT FLANGE REDUCER,GEAR BOX

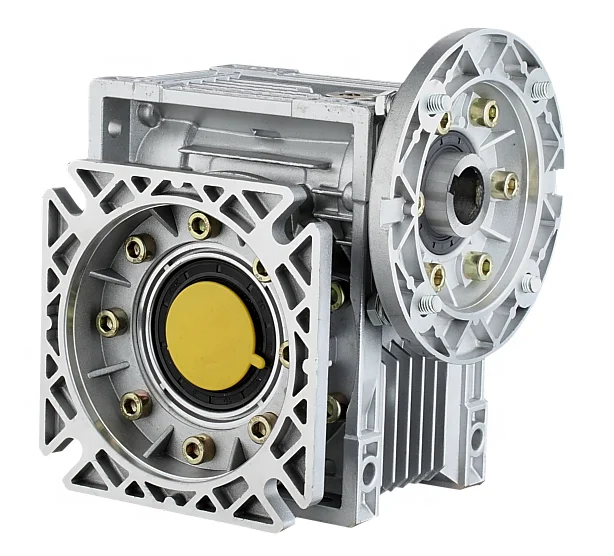

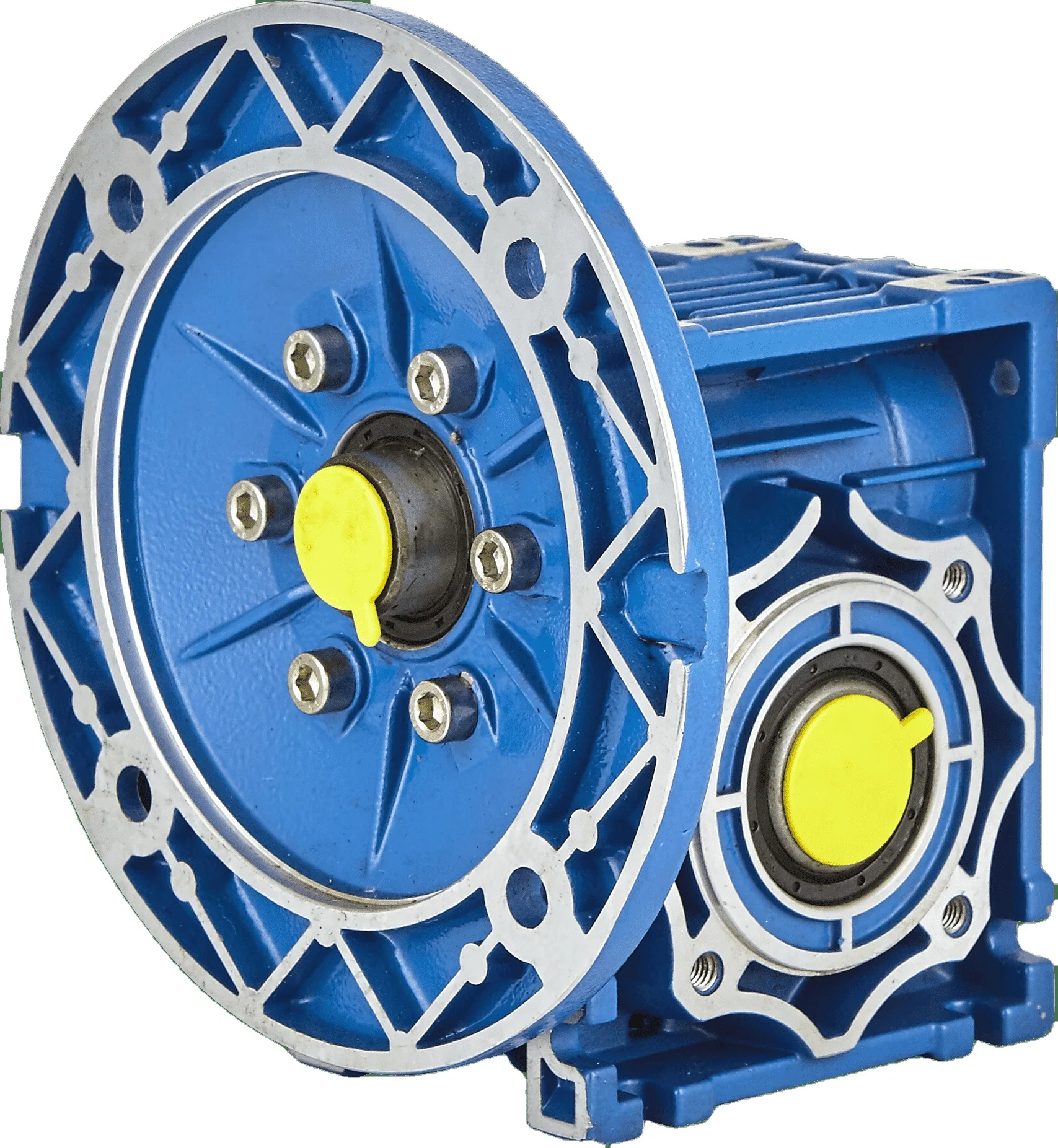

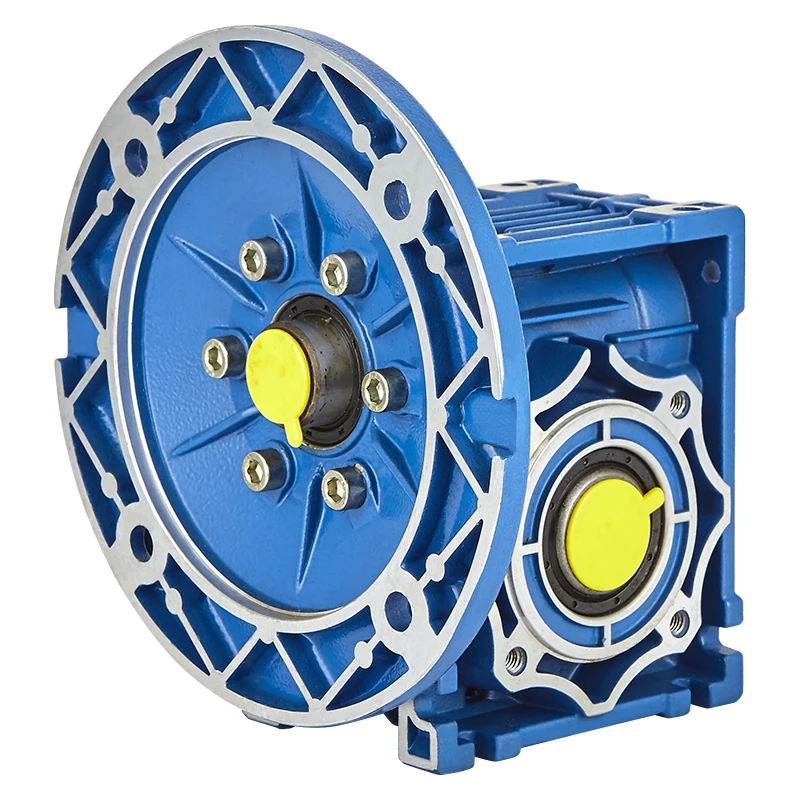

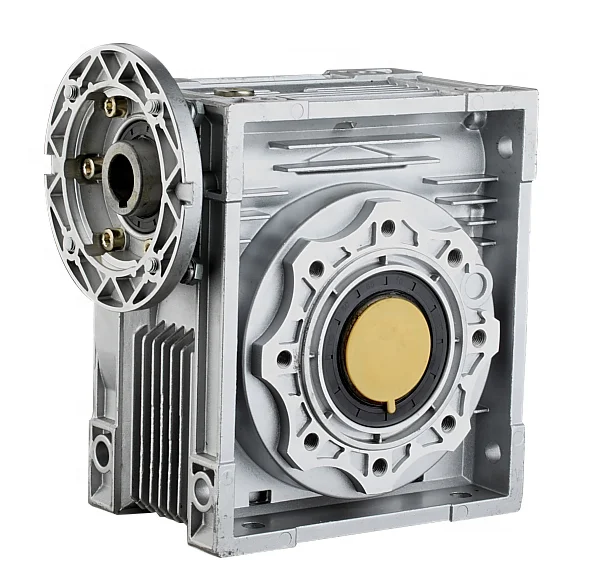

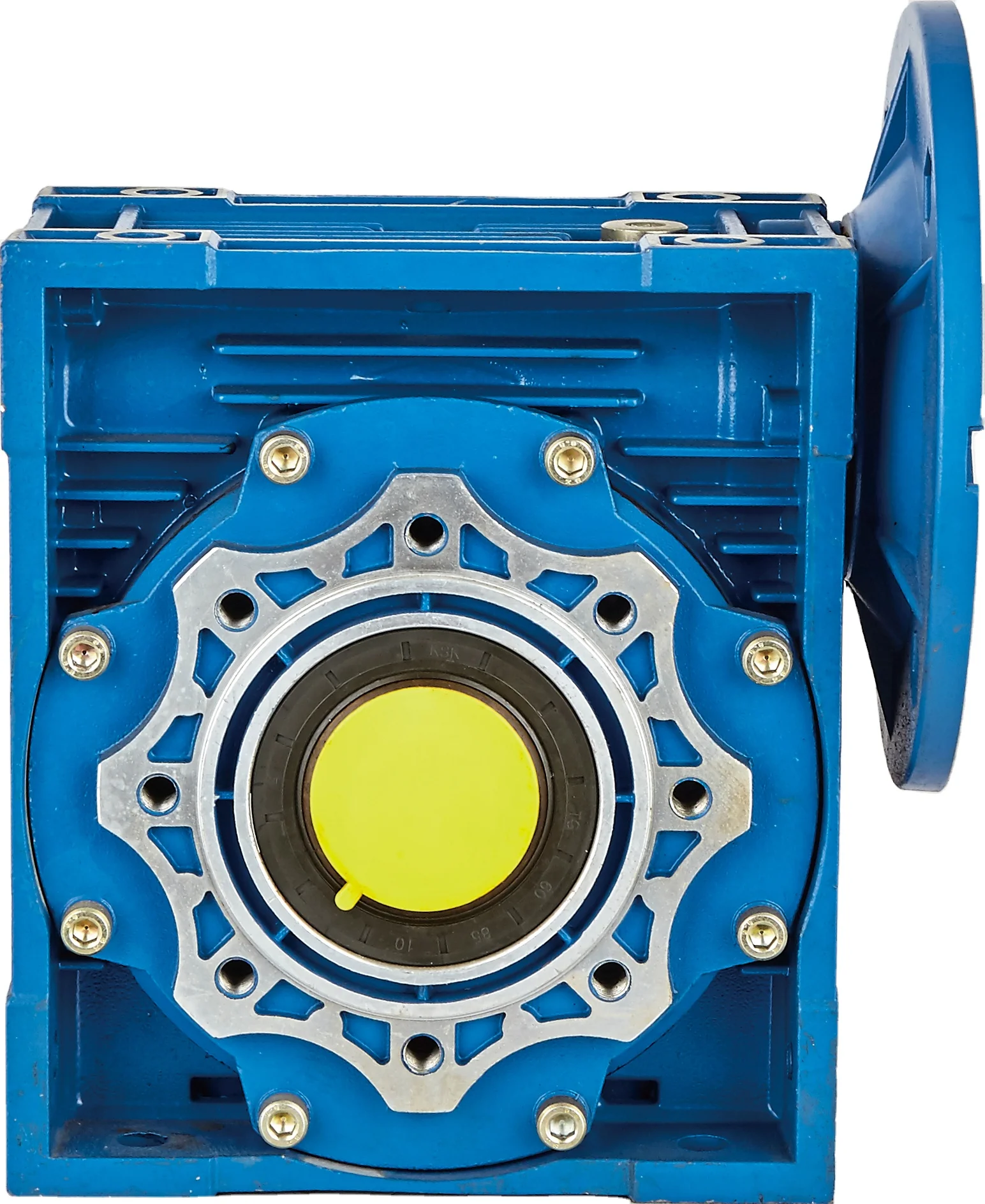

Detailed Images
TPRV WORM SPEED REDUCER,FA&FB OUTPUT FLANGE REDUCER,GEAR BOX
Certifications
Packaging & Shipping
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-30days, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
