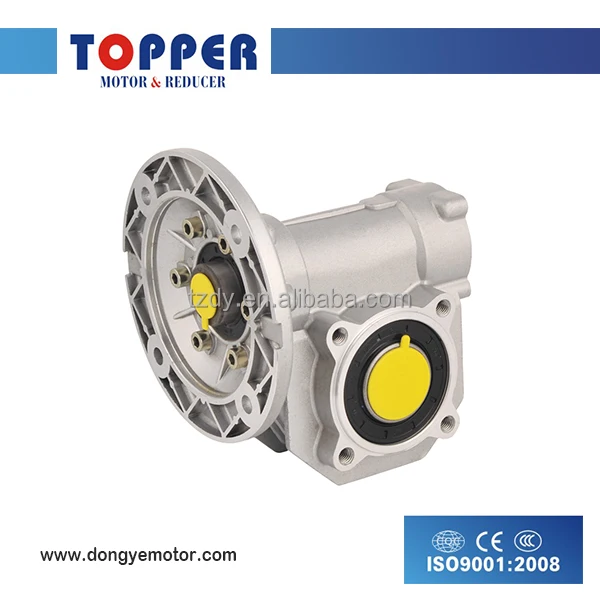

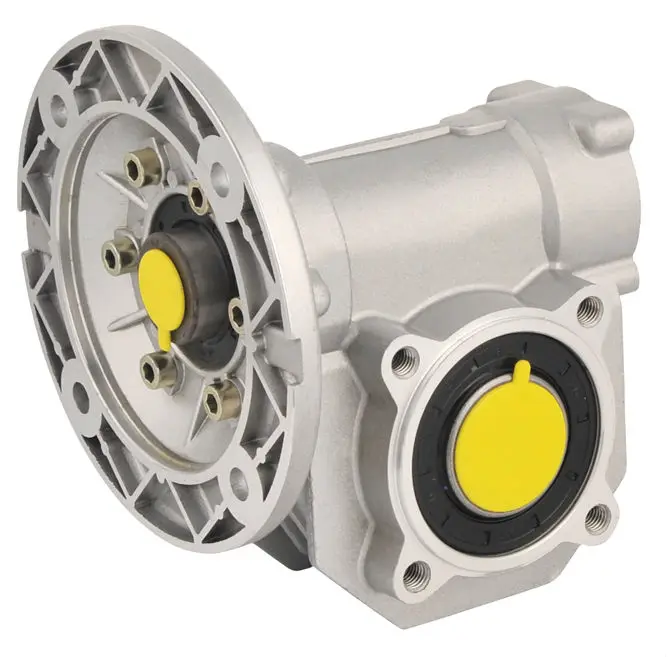

TPVF SERIES WORM GEAR REDUCER
FEATURE: 1. More compact
2. Appearance is more beautiful
3. It provides bigger torque
Performance parameter
![VF2]()
![1]()
| Size | Ratio(i) | Input Power(kW) | Output |
| n2(r/min) | M2(N·m) |
| 30 | 7.00 | 0.42 | 200.00 | 16.00 |
| 10.60 | 0.28 | 132.00 | 16.00 |
| 15.00 | 0.24 | 93.00 | 18.00 |
| 19.00 | 0.20 | 74.00 | 18.00 |
| 30.00 | 0.16 | 47.00 | 20.00 |
| 39.00 | 0.13 | 36.00 | 19.00 |
| 61.00 | 0.01 | 23.00 | 19.00 |
| 80.00 | 0.06 | 17.50 | 15.00 |
| 45 | 7.00 | 0.76 | 200.00 | 29.00 |
| 10.00 | 0.54 | 140.00 | 29.00 |
| 14.00 | 0.39 | 100.00 | 29.00 |
| 21.00 | 0.41 | 67.00 | 39.00 |
| 28.00 | 0.31 | 50.00 | 39.00 |
| 37.00 | 0.25 | 38.00 | 39.00 |
| 46.00 | 0.21 | 30.00 | 39.00 |
| 60.00 | 0.17 | 23.00 | 39.00 |
| 70.00 | 0.11 | 20.00 | 29.00 |
| 102.00 | 0.08 | 13.70 | 28.00 |
| 50 | 7.00 | 1.40 | 200.00 | 54.00 |
| 10.00 | 1.10 | 140.00 | 59.00 |
| 14.00 | 0.86 | 100.00 | 65.00 |
| 18.00 | 0.64 | 78.00 | 59.00 |
| 26.00 | 0.52 | 54.00 | 63.00 |
| 36.00 | 0.41 | 39.00 | 69.00 |
| 43.00 | 0.34 | 33.00 | 65.00 |
| 60.00 | 0.25 | 23.00 | 59.00 |
| 68.00 | 0.21 | 21.00 | 55.00 |
| 80.00 | 0.18 | 17.50 | 54.00 |
| 100.00 | 0.14 | 14.00 | 49.00 |
| 63 | 7.00 | 3.00 | 200.00 | 119.00 |
| 10.00 | 2.30 | 140.00 | 128.00 |
| 15.00 | 1.60 | 93.00 | 131.00 |
| 19.00 | 1.30 | 74.00 | 131.00 |
| 24.00 | 1.10 | 58.00 | 135.00 |
| 30.00 | 0.92 | 47.00 | 139.00 |
| 36.00 | 0.84 | 39.00 | 140.00 |
| 45.00 | 0.63 | 31.00 | 129.00 |
| 67.00 | 0.43 | 21.00 | 118.00 |
| 80.00 | 0.36 | 17.50 | 113.00 |
| 94.00 | 0.31 | 14.00 | 103.00 |
| 85 | 7.00 | 5.80 | 200.00 | 245.00 |
| 10.00 | 4.90 | 140.00 | 270.00 |
| 14.00 | 3.90 | 100.00 | 290.00 |
| 20.00 | 2.60 | 70.00 | 280.00 |
| 22.00 | 2.40 | 64.00 | 280.00 |
| 28.00 | 2.30 | 50.00 | 330.00 |
| 38.00 | 1.70 | 37.00 | 320.00 |
| 46.00 | 1.40 | 30.00 | 310.00 |
| 52.00 | 1.20 | 27.00 | 275.00 |
| 67.00 | 0.93 | 21.00 | 275.00 |
| 74.00 | 0.87 | 18.90 | 255.00 |
| 96.00 | 0.66 | 14.60 | 230.00 |
