Description

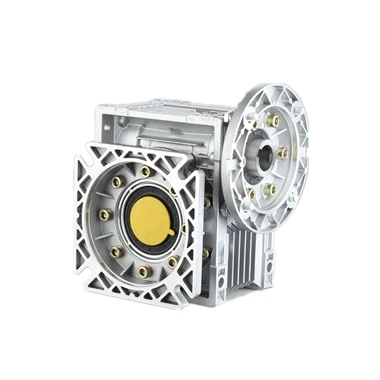

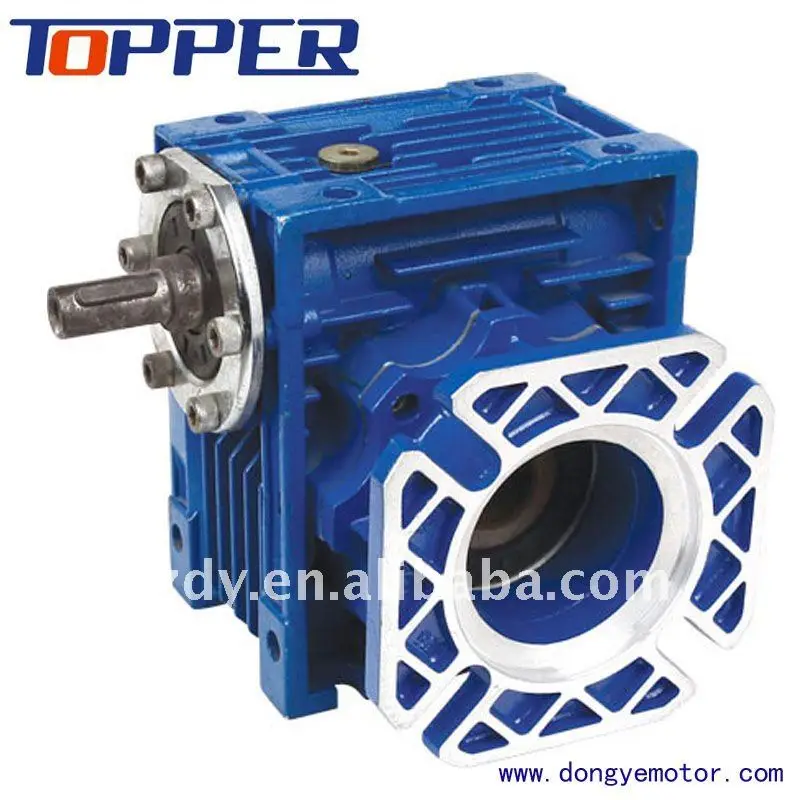

Type:RV025-RV150
Material:RV025,RV030,RV040,RV050,RV063,RV075,RV090 Aluminium alloy
RV110,RV130,RV150 Cast Iron
Features
1.High quality aluminum alloy die cast,elegant apperance,efficient heat radiation and non-rusting
2.High accuracy worm gear and worm shaft
3.Run stably with low noise and lower temperature increase
4.installed in multiple surface,hollow output shaft,various output and input types,can join with other transmission parts easily
5.Compact,light,easy mounting and linking
6.Suitable for omnibearing installation
Technical data:
1.Worm reducer ranging from 025 to 150
2.Speed ratio:ranging from 5 to 100
3.Power:ranging from 0.06 to 15kw
4.Output torque: from 2.6 to 1074 N.M
