Description

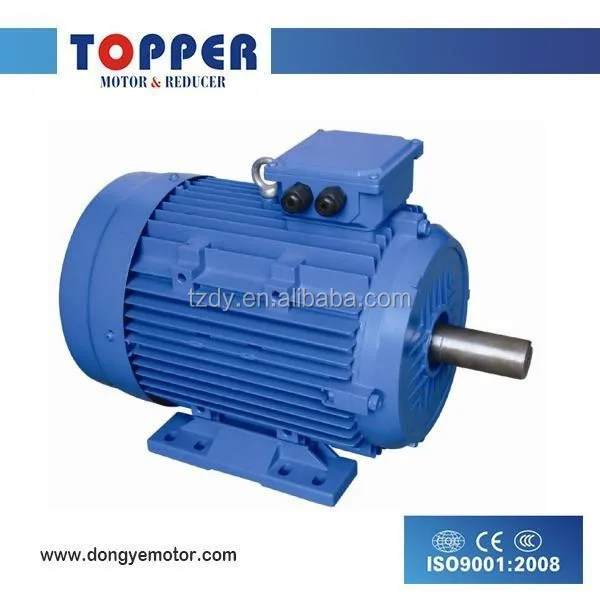

Y2 Series three-phase asynchronous motor Property and Featurs: Y2 series motors are defined as totally enclosed, fan cooled, squirrel cage type and noted for their novel design, beautiful model, compact structured, low noise, high efficiency, large torque, excellent starting performance, easy maintaince, etc. The motors adopt F class insulation and designed with assessing method for insulation system according to international practice. Y2 series motors can be widly applied to various of driving equipments such as machine tools,blowers pumps ,gear boxes, compressors, transporters,agricultural machines etc. Pedestal installation size and centre height and other indexes of the motor completely measures by Y series three-phase asynchronous motor.
Operating Conditons Ambient temperature:-15oC≤θ≤40oC Altitude: no higher than 1000 meters from sea level Rated voltage:380V±5%(380V or any voltage between 220-760V) Rated frequency: 50Hz or 60Hz Insulation class: F Cooling type:IC411 Duty type: S1
| |
| |
There are three kinds of installation way for motor:
1. B3 Frame with foot end shield without flange
2. B35 Frame with foot end shield with flange
3. B5 Frame without foot end shield with flange
