Description

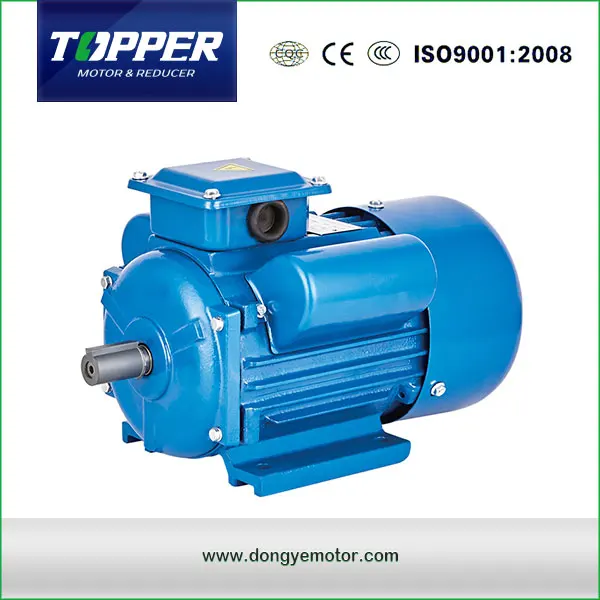

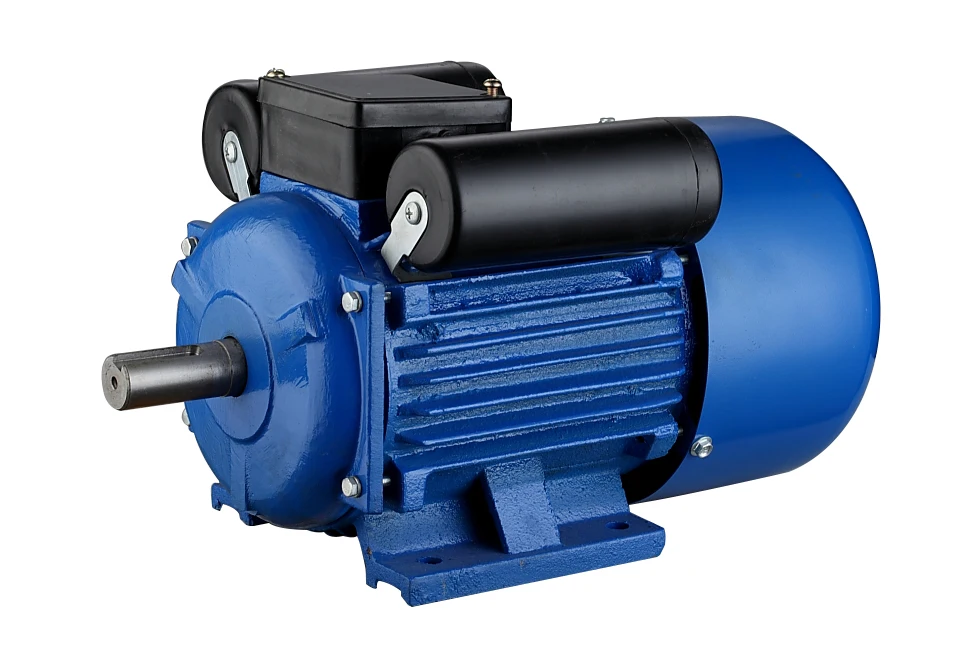

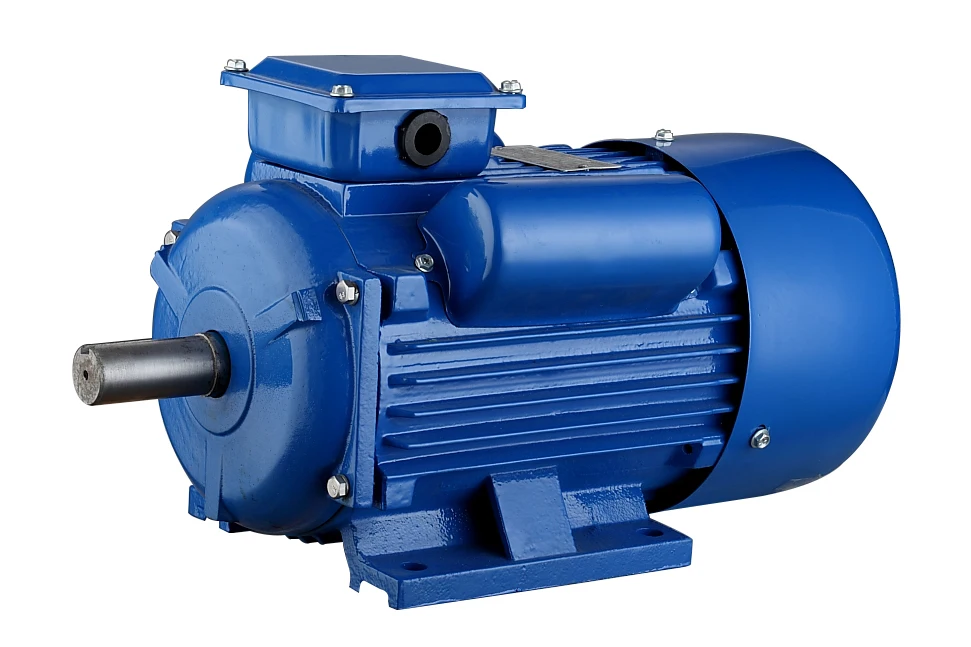

YC SERIES MOTOR ELECTRIC AIR COMPRESSOR SINGLE PHASE MOTOR
Motor Data:
YC Series Heavy-duty single phase capacitor motors are suitable for small size machine tools and water pumps, especially for family workshops where only single-phase power supply is available. Motors of this series are integrated with up-to-date design, manufacture with the best quality materials, possess the features of pleasant-looking appearance and meet the IEC standard.
YC series single phase capacitors motors are of IP44 totally enclosed fan-cooling type, rated outputs is 3HP or below, capacitor starting, Within rated voltage and 50Hz, the starting torque is three times more than the rated torque and 60Hz is 2.75 times more. Motors for 4HP or over are of capacitor start and run type. It has concentrate the advantages of high starting torque, smooth running, low temperature rising, low noise and greater overload performance. The designation number and nominative valves are all in conformity with IEC standards.
YC SERIES MOTOR ELECTRIC AIR COMPRESSOR SINGLE PHASE MOTOR
♦OPERATING CONDITIONS
♣Ambient temperature:-15°c<Θ<40°c
♣Altitude:not exceed 1000m
♣Rated voltage:220v
♣Rated frequency:50Hz/60Hz
♣Dyty:S1(continuous)
♣Insulation class:B/F
♣Protection class:IP44/IP54
♣Cooling method:IC0141
YC SERIES MOTOR ELECTRIC AIR COMPRESSOR SINGLE PHASE MOTOR
EXPLODEDVIEW:
YC SERIES MOTOR ELECTRIC AIR COMPRESSOR SINGLE PHASE MOTOR

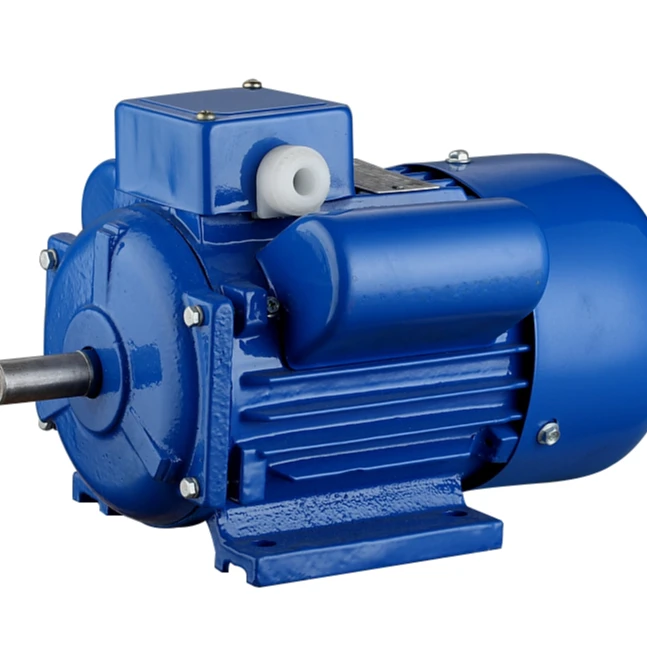

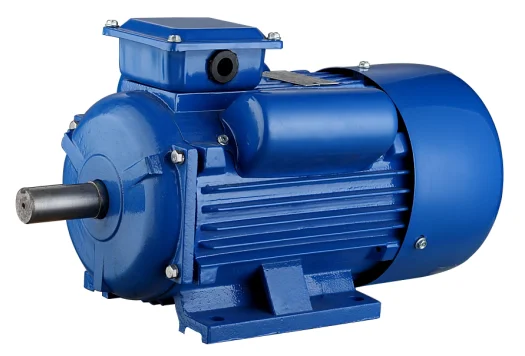

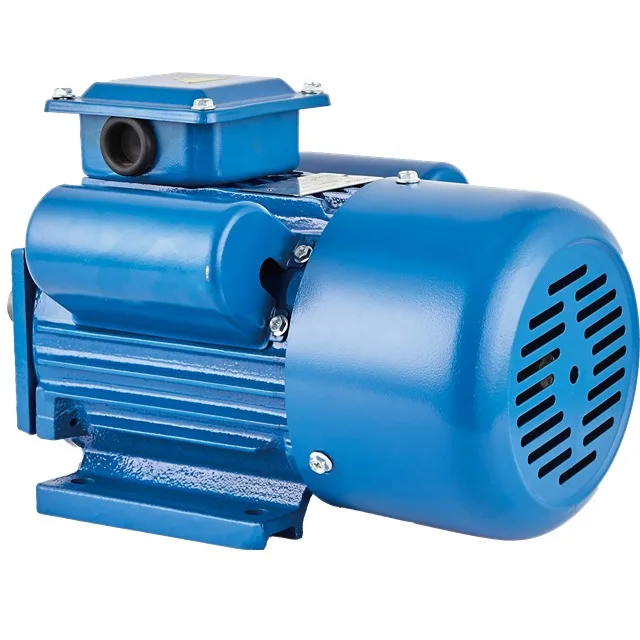

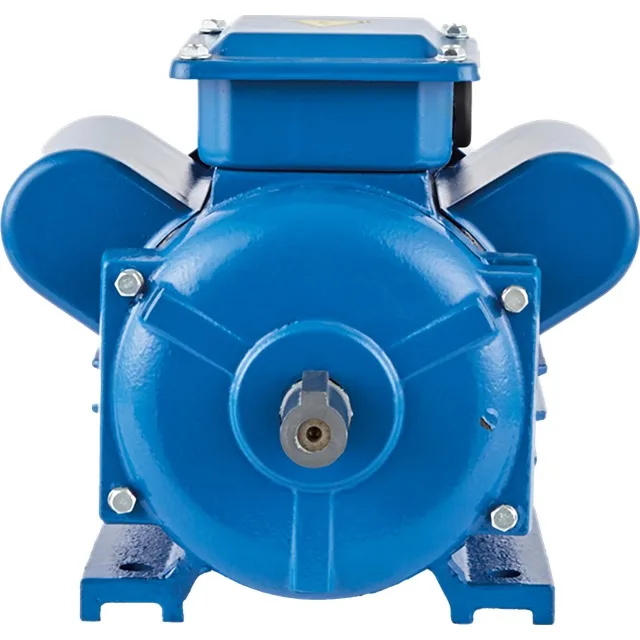

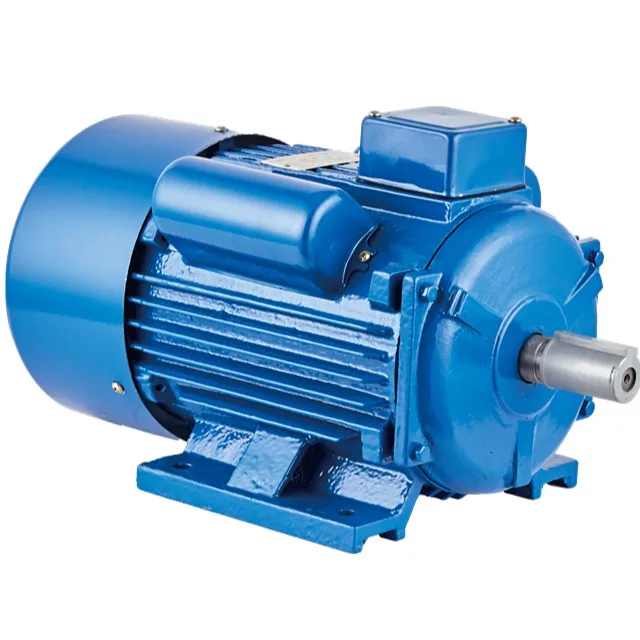

Detailed Images
YC SERIES MOTOR ELECTRIC AIR COMPRESSOR SINGLE PHASE MOTOR
Certifications
YC SERIES MOTOR ELECTRIC AIR COMPRESSOR SINGLE PHASE MOTOR
Packaging & Shipping
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-30days, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
