Description

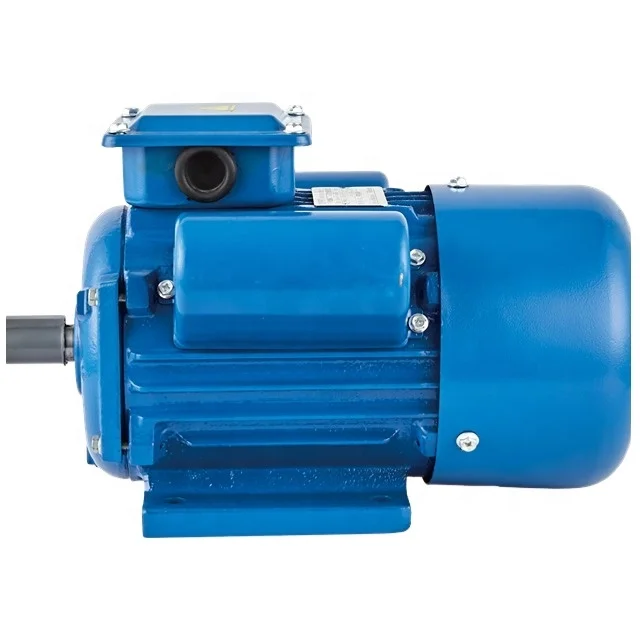

YC series pump motors,single phase motors,electric motors
♦INTRODUCE
♣The YC series heavy-duty single-phase motors are suitable for powering small type machine tools and water pumps,especially for family workshops where only single-phase current is available.Motors of this series are integrated with up-to-date design,built with the best quality materials and attractive appearance.They have outstanding performance,easy maintenance and are reliable.They completely conform to international I.E.C. standards.
♣YC series protected motors are of IP44 totally enclosed fan-cooling type.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.
| TYPE | OUTPUT | VOLTAGE (V) | CURRENT(A) | SPEED(R/MIN) | EFF(%) | POWER FACTOR |
IST/IN | T.MAX/TN | |
| HP | KW | ||||||||
| YC-80A-2 | 0.5 | 0.37 | 220 | 3.7 | 2880 | 62 | 0.73 | 6.5 | 1.8 |
| YC-80B-2 | 0.75 | 0.55 | 220 | 5.3 | 2880 | 65 | 0.73 | 6.5 | 1.8 |
| YC-80C-2 | 1 | 0.75 | 220 | 6.7 | 2880 | 68 | 0.75 | 6.5 | 1.8 |
| YC-90S-2 | 1.5 | 1.1 | 220 | 9.1 | 2880 | 71 | 0.77 | 7 | 1.8 |
| YC-90L-2 | 2 | 1.5 | 220 | 12.1 | 2900 | 72 | 0.78 | 7 | 1.8 |
| YC-100L-2 | 3 | 2.2 | 220 | 17.1 | 2900 | 74 | 0.79 | 7 | 1.8 |
| YC-112M1-2 | 4 | 3 | 220 | 21.4 | 2900 | 76 | 0.84 | 7 | 1.8 |
| YC-112M2-2 | 8 | 3.7 | 220 | 24.8 | 2900 | 79 | 0.86 | 7 | 1.8 |
| YC-80A-4 | 1/3 | 0.25 | 220 | 3.4 | 1450 | 56 | 0.6 | 6 | 1.8 |
| YC-80B-4 | 0.5 | 0.37 | 220 | 4.5 | 1450 | 60 | 0.62 | 6 | 1.8 |
| YC-80C-4 | 0.75 | 0.55 | 220 | 6 | 1450 | 64 | 0.65 | 6 | 1.8 |
| YC-90S-4 | 1 | 0.75 | 220 | 7.7 | 1450 | 67 | 0.66 | 6.5 | 1.8 |
| YC-90L-4 | 1.5 | 1.1 | 220 | 10.5 | 1450 | 70 | 0.68 | 6.5 | 1.8 |
| YC-100L-4 | 2 | 1.5 | 220 | 13.5 | 1450 | 72 | 0.7 | 6.5 | 1.8 |
| YC-112M-4 | 3 | 2.2 | 220 | 19.3 | 1450 | 72 | 0.72 | 6.5 | 1.8 |
| YC-132SA-4 | 4 | 3 | 220 | 25.2 | 1450 | 74 | 0.73 | 6.5 | 1.8 |
| YC-132SB-4 | 5 | 3.7 | 220 | 30 | 1450 | 75 | 0.74 | 6.5 | 1.8 |
| YC-132M-4 | 7.5 | 5.5 | 220 | 32.5 | 1450 | 81 | 0.95 | 6.5 | 1.8 |
YC series pump motors,single phase motors,electric motors
♦OPERATING CONDITIONS
♣Ambient temperature:-15°c<Θ<40°c
♣Altitude:not exceed 1000m
♣Rated voltage:220v
♣Rated frequency:50Hz/60Hz
♣Dyty:S1(continuous)
♣Insulation class:B/F
♣Protection class:IP44/IP54
♣Cooling method:IC0141
YC series pump motors,single phase motors,electric motors

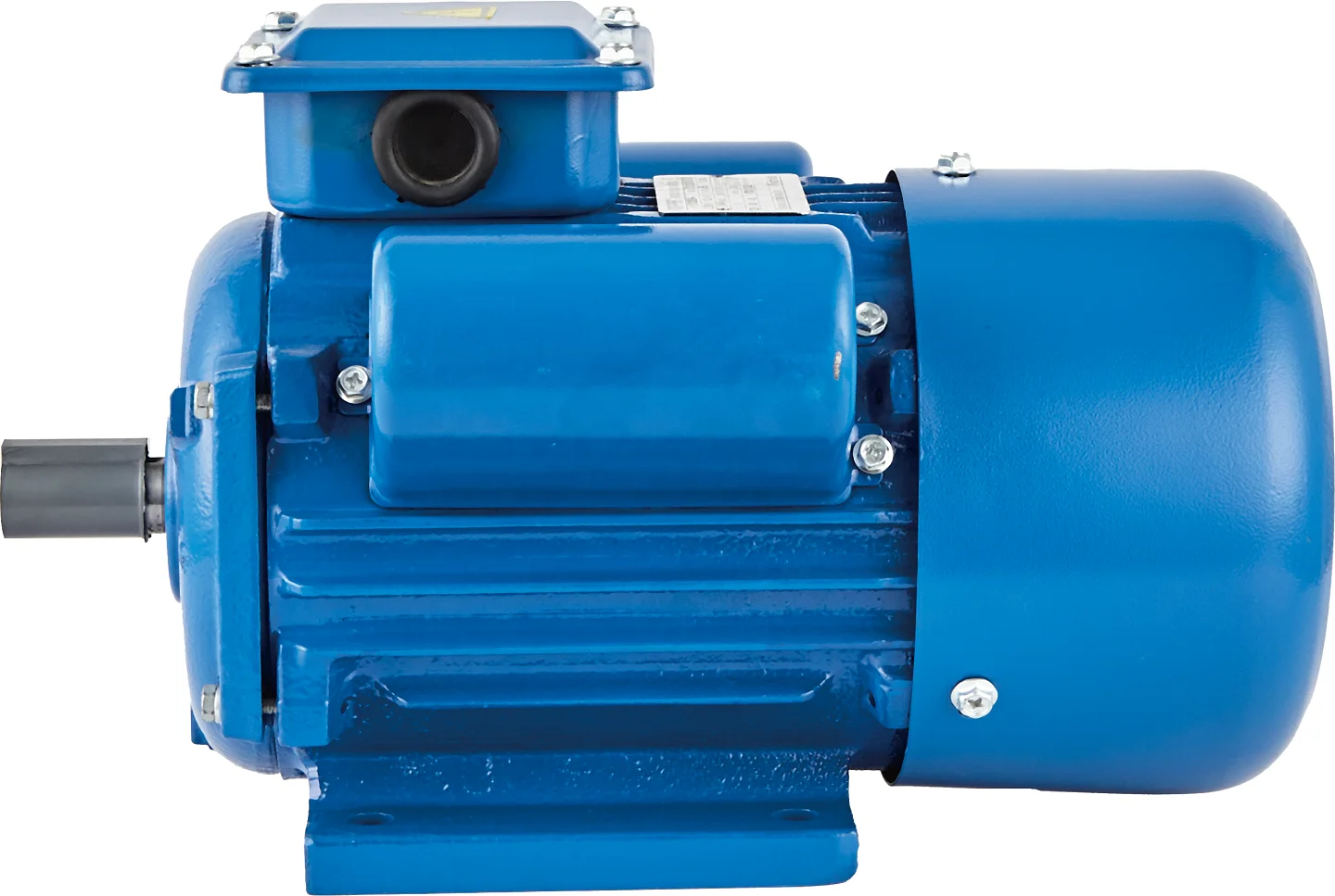

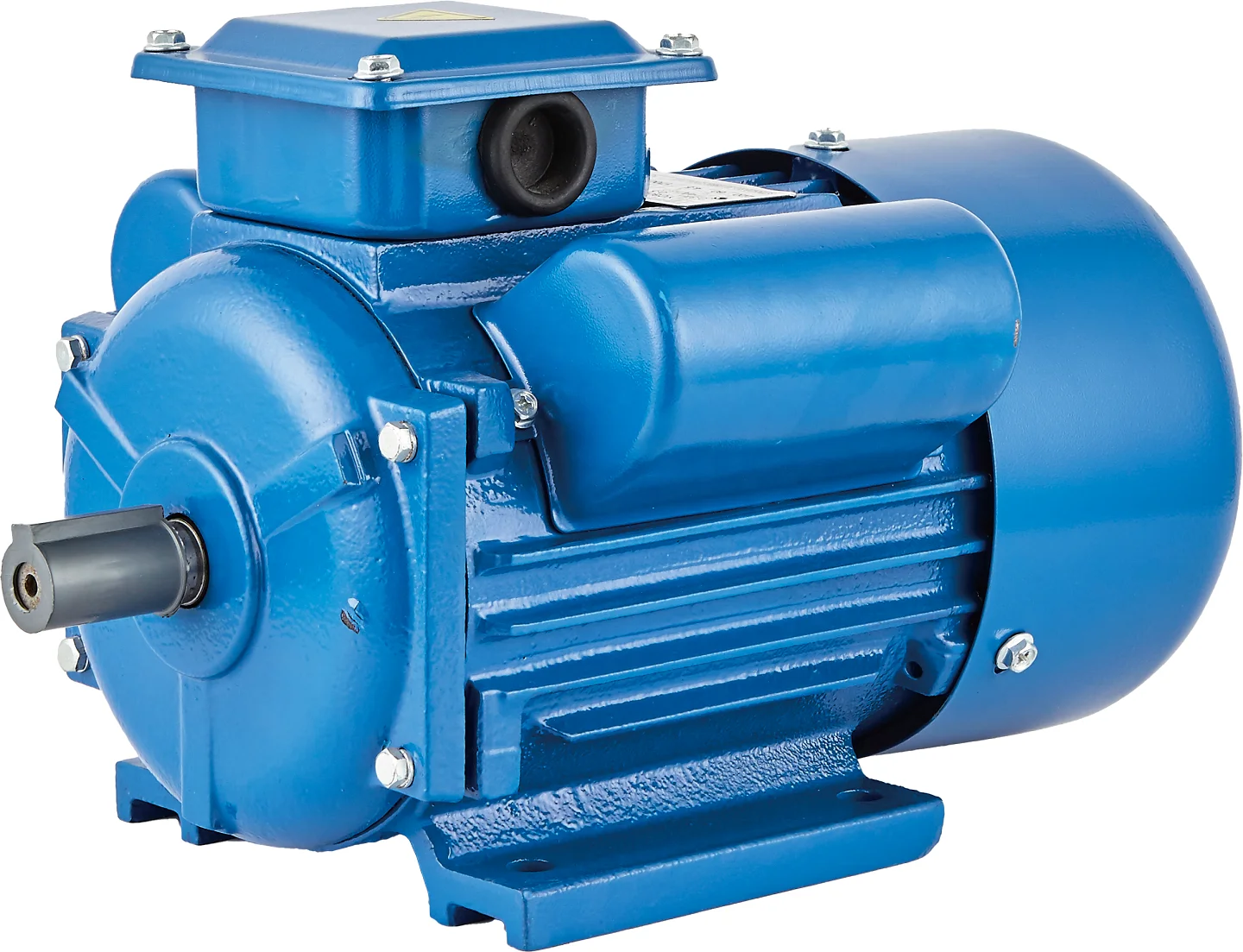

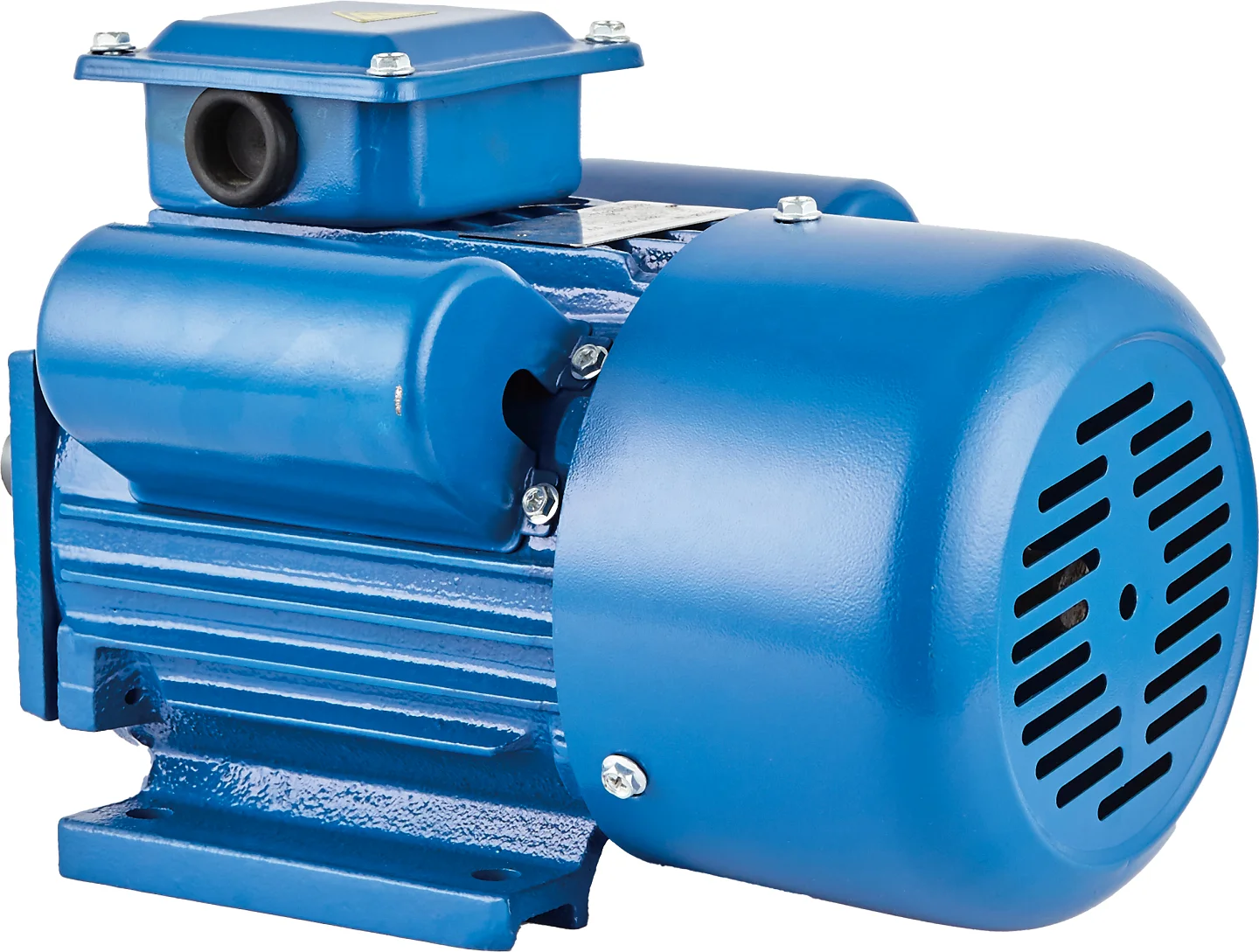

Detailed Images
Certifications
Packaging & Shipping
YC series pump motors,single phase motors,electric motors
Production line:
Company Information
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2001,sell to South Asia(30.00%),South America(20.00%),Western Europe(20.00%),Southeast Asia(20.00%),Eastern Asia(5.00%),Africa(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Electric Motor, Worm Reducer, AC Gear Motor
4. why should you buy from us not from other suppliers?
The company manufacture the motor and worm reducer together.It is convenient to the customer. The company have more than 10 years' experience to produce electirc motor,we have strictly quality control system.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
