Description
1.Dotless
Consistent and Uniform Lights with No Hot Spots, perfect solution for a wide variety of applications where you don’t want to see the dots.
2.Flexibility
Due to the Chip on board technology, it is so flexible even for tiny bend Radius.
3.Wide viewing angle
180° Viewing angle makes the lighting performance cozy and even
4.Shallow profile mate
COB LED strip is a perfect mate for different types of shallow profiles to create dotless lighting performance
With high density LED chips mounted on FPC, the phosphor can be the CCT regulator and also the diffuser to create dot free lighting effect, it is high CRI and high efficacy, perfect for shallow profiles in under cabinet lighting applications.
|
Model No. |
LT-SWCOBN528-2410-140 |
|
Power |
14W/m |
|

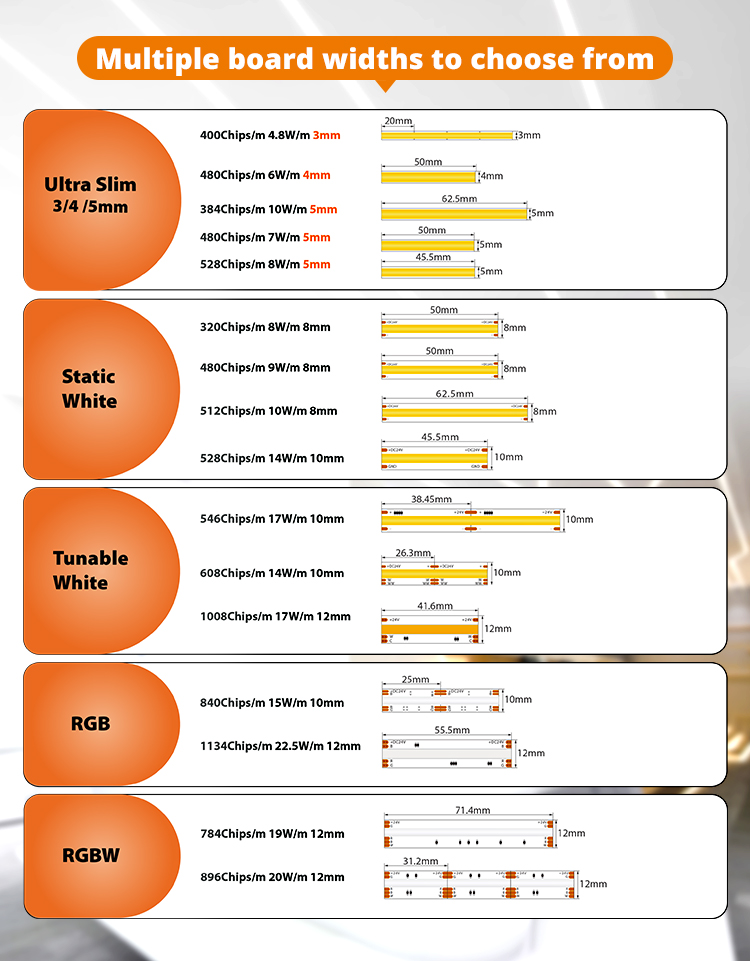

PCB width |
10mm |
|
Lumen output (4000K) |
1400Lm/m CRI 90+ |
|
MAXRUN |
5m |
|
LEDs/m |
COB 528Chips/m |
|
Cut Length |
45.5mm |
|
Voltage |
24 VDC |
|

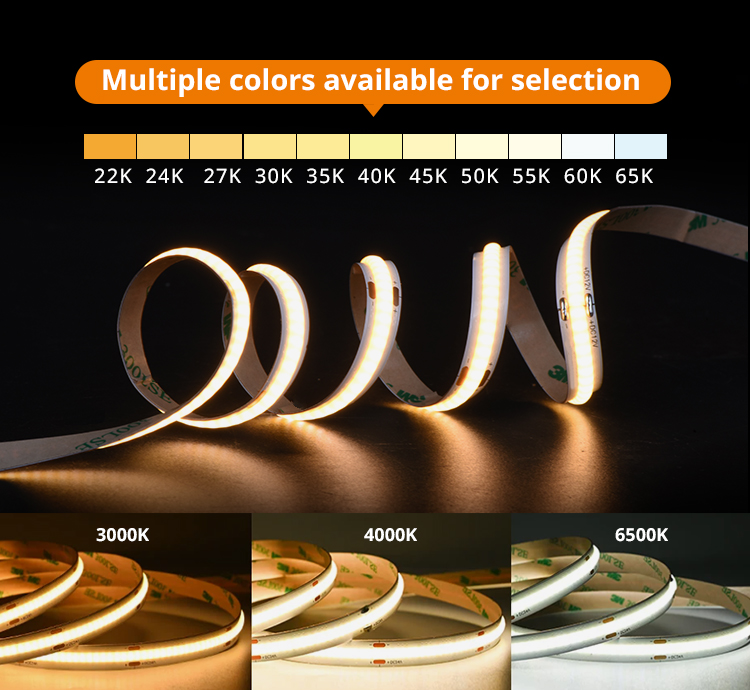

CCT |
2700K~6500K |
|
CRI |
CRI 90+~95+ |
|
Dimmable |
Yes (PWM, DALI, 0/1-10V, Triac) |
|
IP Ratiing |
IP20/IP65/IP67/IP68 |
|
Ambient temp. |
-35°C ~ 50°C |
|
Beam Angle |
180° |
|
Strip length/reel |
0.5m ~ 50m |
|
Lifespan |
50,000Hrs |
