Description

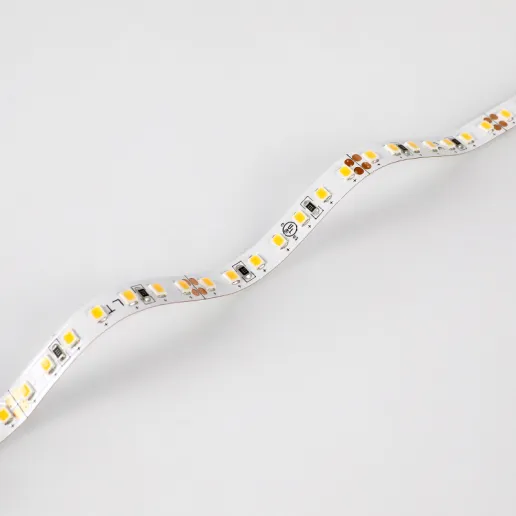

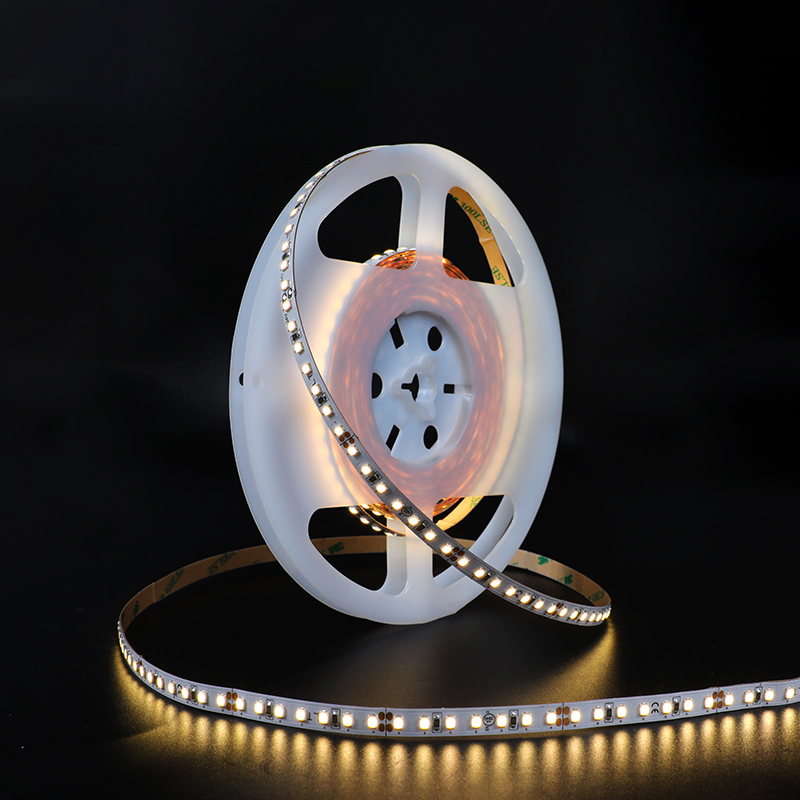

The 2835SMD LED Strips are widely used as the most popular type in the market, features high efficacy and long life span. It's available in various density from 60LEDs/m to 280LEDs/m, and multiple PCB width to meet the different demands like 4mm slim request, and 12mm high wattage request, and etc.
They're designed to provide high quality linear lighting for a wide variety of applications.
|
Part number |
LT-SW28P140-XX98-24 |
LED QTY/M |
140pcs 2835 |
|
Power/meter |
14.4W/m |
Dimension |
L5000*W8*H3mm |
|
Voltage range |
23-25V |
Cut length |
50mm |
|
CCT (K) |
1800-6500K |
Installation |
3M 300LSE adhesive tape |
|
Lumen |
1170-1470Lm/m |
Maxrun |
10m |
|
Binning tolerance & code |
SDCM<3 |
Customized length |
0.1-30M |
|
TM30 |
Rf=90 Rg=99 |
Beam angle |
120° |
|
IP rating |
IP68 |
Bend radius |
R<60mm |
|
Dimmable |
PWM/0-10V/DAIL |
Operating temp. |
-25-70℃ |
|
Connection |
Lead wire or Pin connector |
Lifespan and warranty |
30,000Hrs / 3years |
|
Customized length |
Yes |
Certificate |
CE, RoHS, REACH, UL |
