Description

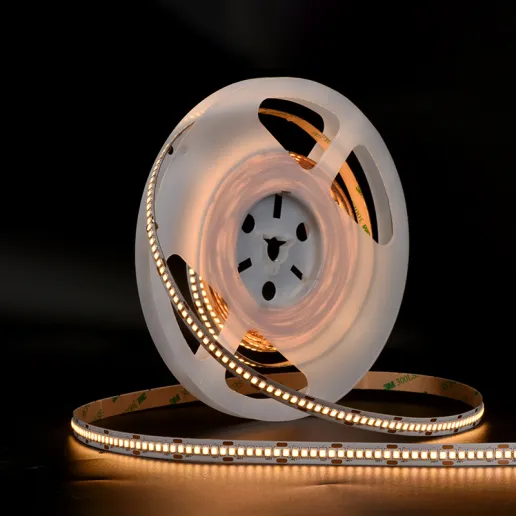

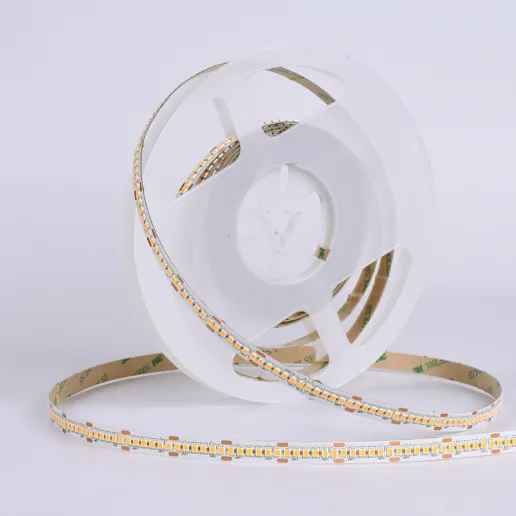

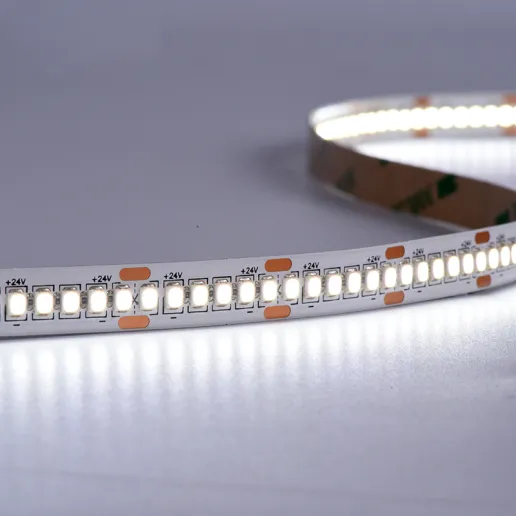

The 2835SMD LED Strips are widely used as the most popular type in the market, features high efficacy and long life span. It's available in various density from 60LEDs/m to 280LEDs/m, and multiple PCB width to meet the different demands like 4mm slim request, and 12mm high wattage request, and etc.
They're designed to provide high quality linear lighting for a wide variety of applications.
|
Model No. |
LT-SW28N240-2408-100 |
LT-SW28N240-2410-192 |
LT-SW28N240-2412-240 |
|
Power |
10 W/m |
19.2W/m |
24 W/m |
|
PCB width |
8mm |
10mm |
12mm |
|
Lumen output(4000K) |
1350Lm/m CRI 80+ |
2090Lm/m CRI 80+ |
2400Lm/m CRI 80+ |
|
MAXRUN |
8m |
6m |
5m |
|
LEDs/m |
2835 240LEDs/m |
||
|
Cut Length |
25mm (6LEDs) |
||
|
Voltage |
24V DC |
||
|
CCT |
1800K~6500K |
||
|
CRI |
CRI 80+~98+ |
||
|
Dimmable |
Yes (PWM, DALI, 0/1-10V, Triac) |
||
|
IP Rating |
IP20 |
||
|
Ambient temp. |
-35°C ~ 50°C |
||
|
Strip length/reel |
0.5m ~ 50m |
||
|
Lifespan |
50,000Hrs |
||
