Description

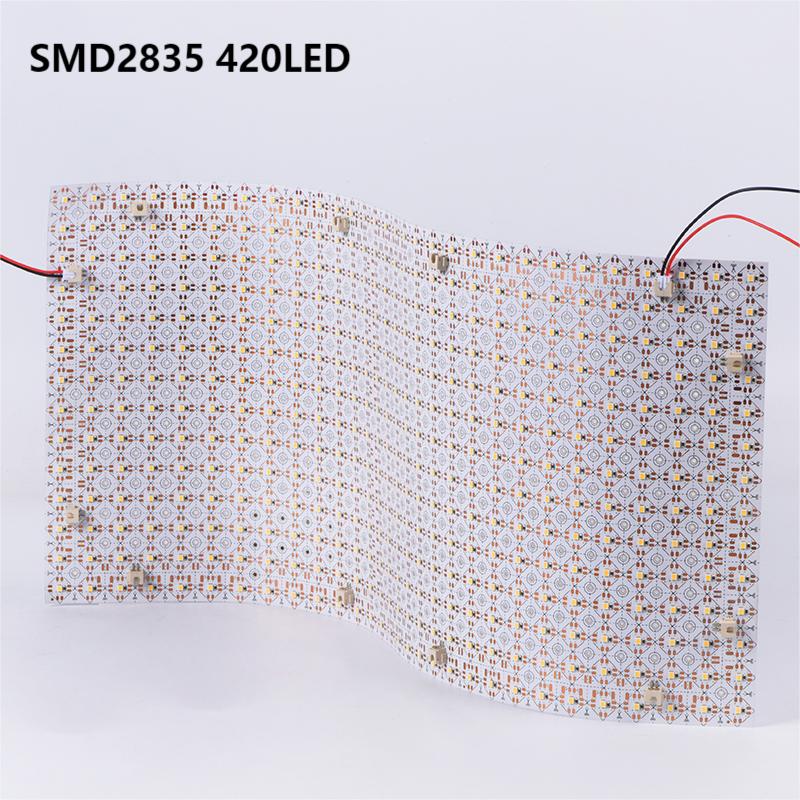

LED FlexSheet is a fully modular way to backlight your display and signage. Easily trim to shape using the on-board trim lines and create complex layouts for most applications. With intuitive, plug and play connections; setting up is fast, simple and safe, reducing installation time and expense. Unlike most backlighting or signage modules, FlexSheet is also daisy-chain linkable for larger scale projects with optical options available to increase the spread of light.
|
Model No. |
LT-SW28N420-24250-300 |
|
Power |
30W/m |
|
Product dimension |
500*250mm |
|
Lumen output (4000K) |
3360Lm/m CRI 80+ |
|
MAXRUN |
\ |
|
LEDs/m |
2835 420LEDs/m |
|
Cut Length |
16.6x16.6mm (1LEDs) |
|
Voltage |
24 VDC |
|
CCT |
1800K~6500K |
|
CRI |
CRI 80+~98+ |
|
Dimmable |
Yes (PWM, DALI, 0/1-10V, Triac) |
|
IP Rating |
IP20 |
|
Ambient temp. |
-35°C ~ 50°C |
|
Beam Angle |
120° |
|
Strip length/reel |
sheet sizes and/or connector placement |
|
Lifespan |
50,000Hrs |
