Description
Features:

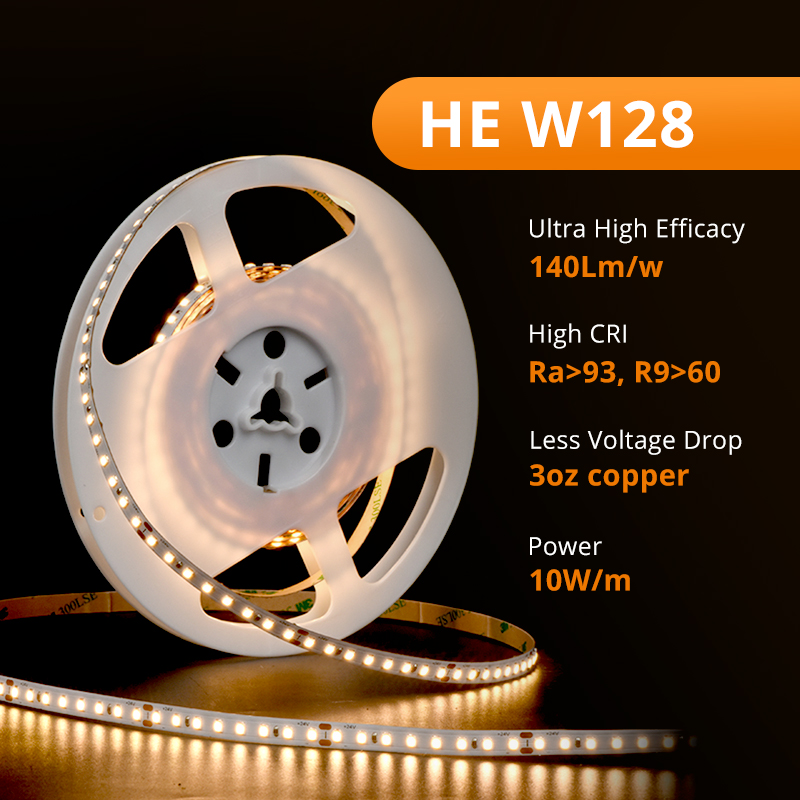

The 2835SMD LED Strips are widely used as the most popular type in the market, features high efficacy ,less voltage drop and long life span.They're designed to provide high quality linear lighting for a wide variety of applications.
1.Ultra High Efficacy 140Lm/w
2.Less voltage drop
3.High CRI Ra>93, R9>60
4.0-10V, DALI, PWM Dimmable
Details:
Our cutting-edge high-efficiency LED strip series, designed to illuminate your space with unparalleled brilliance. With an impressive luminous efficacy ranging from 130lm/wto 215lm/w, our LED light strips are in a league of their own.
Achieving ERPB grade efficiency, they deliver exceptional energy savings without compromising on brightness.
Parameter:
|
Model No. |
LT-HE28N128-xx90-24-100 |
Power |
10W/m |
|
PCB width |
8mm |
Lumen output (4000K) |
1400Lm/m |
|
MAXRUN |
5m |
Leds/m |
128LEDS/M |
|
Cut Length |
62.5mm |
Voltage |
24V DC |
|
CCT |
1800K~6500K |
CRI |
CRI 90+~95+ |
|
Dimmable |
Yes (PWM, DALI, 0/1-10V, Triac) |
IP Rating |
IP20/IP65/IP67/IP68 |
|
Ambient temp |
-35°C ~ 50°C |
Beam Angle |
120° |
|
Strip length/reel |
0.5m ~ 50m |
Lifespan |
50,000Hrs |
