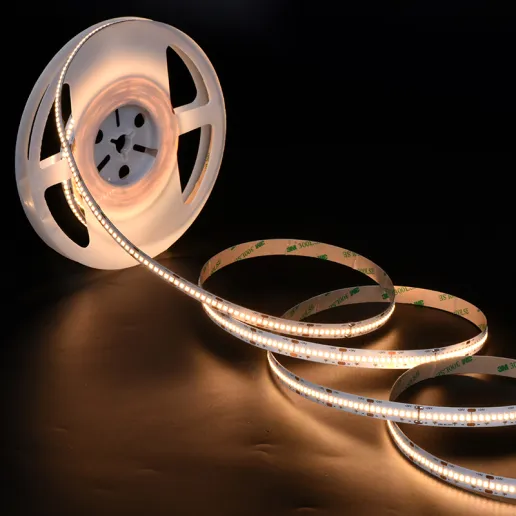

High Efficacy 256LEDs

Get a quote

Description

High Efficacy 256LEDs manufacture

Features:

With high density LED chips mounted, namely 256LEDs/m, this version features :

1, Ultra high efficiency: up to 140lm/w

2, High CRI is also supported: RA>93, R9>60

3, Brighter illumination and less energy consumption

4, Erp. regulation level B



Details:

This cutting-edge high-efficiency LED strip is designed to illuminate your space with unparalleled brilliance. With an impressive luminous efficacy of up to 140lm/w, it achieves ERP B grade efficiency and delivers exceptional energy savings without compromising on brightness.



Parameter:

Model No.

LT-SW28N256-xx90-24-192

Power

19.2W/m

PCB width

12mm

Lumen output (4000K)

2688Lm/m

MAXRUN

5m

Chips/m

2835 256Chips

Cut Length

31.2mm

Voltage

24V DC

CCT

1800K~6500K

CRI

CRI 90+~93+

Dimmable

Yes (PWM, DALI, 0/1-10V, Triac)

IP Rating

IP20/IP65/IP67/IP68

Ambient temp

-35°C ~ 50°C

Beam Angle

12

Strip length/reel

0.5m ~ 50m

Lifespan

50,000Hrs

High Efficacy 256LEDs manufacture
