Description
The Side / Horizontal bending LED neon flex features dot-free lighting, longer lifespan and High efficacy, high CRI, it is designed to provide consistent linear lighting for a wide variety of applications for cove lighting and indirect lighting in hotels, restaurants, shops, offices and homes.
| Electricaltechnical data | |||
| Nominal input voltage | 24V DC | Voltage range | 23-25V DC |

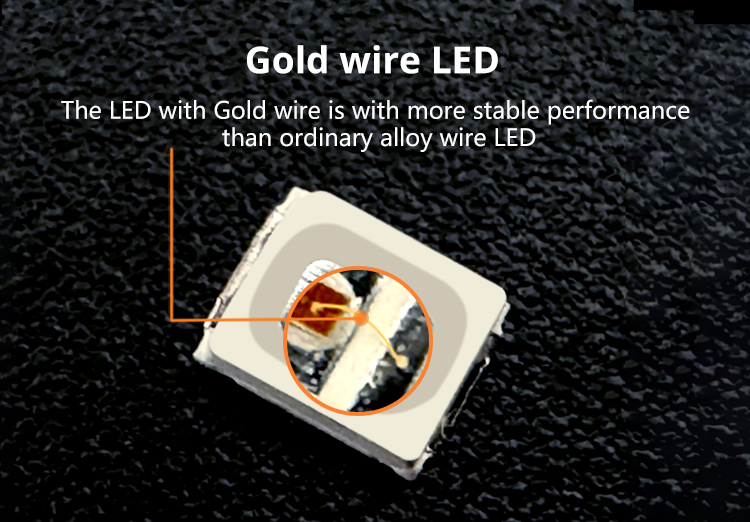

| LEDtypes | 2835 SMD | Product dimension | L5000*W10*H18mm |
| LED QTY/m | 140pcs | PCB dimension | 10mmx 3oz(1/2oz) |
| IPrating(optional) | IP67 | Cut points | 50mm |
| Beam angle | 120° | Materialof coating | ExtrudedSquare |
| Bend radius | R.60m | Customizedength/red | 0.1 to20meters |
| Dimming function | PWM/0-10V/DAL | Standard length/ree | 5mete |

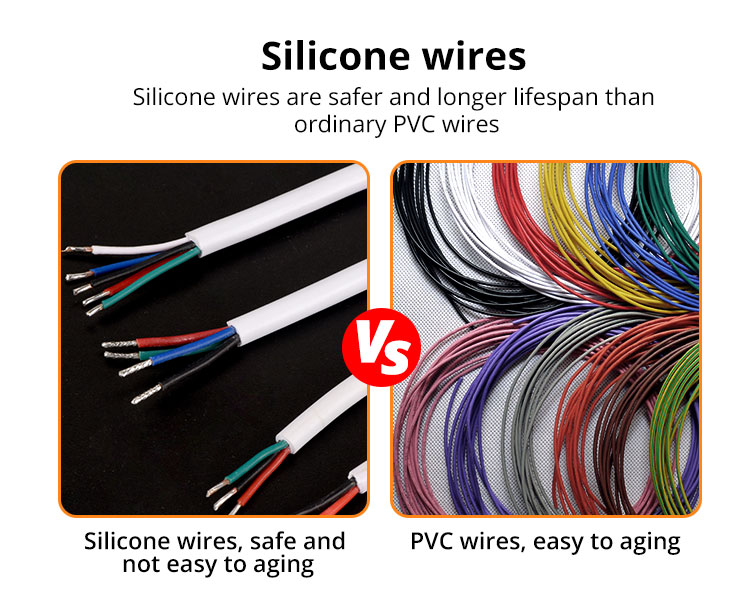

| Connection | 2x0.5MM²/20AWGwire /DCconnector | Installation | 3M VHB 5952 adhesivetape |
