Description

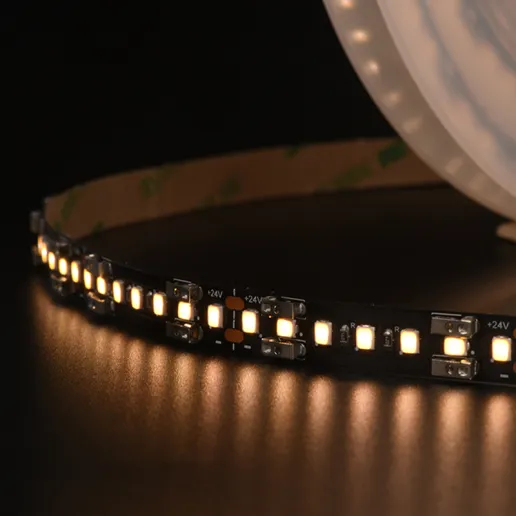

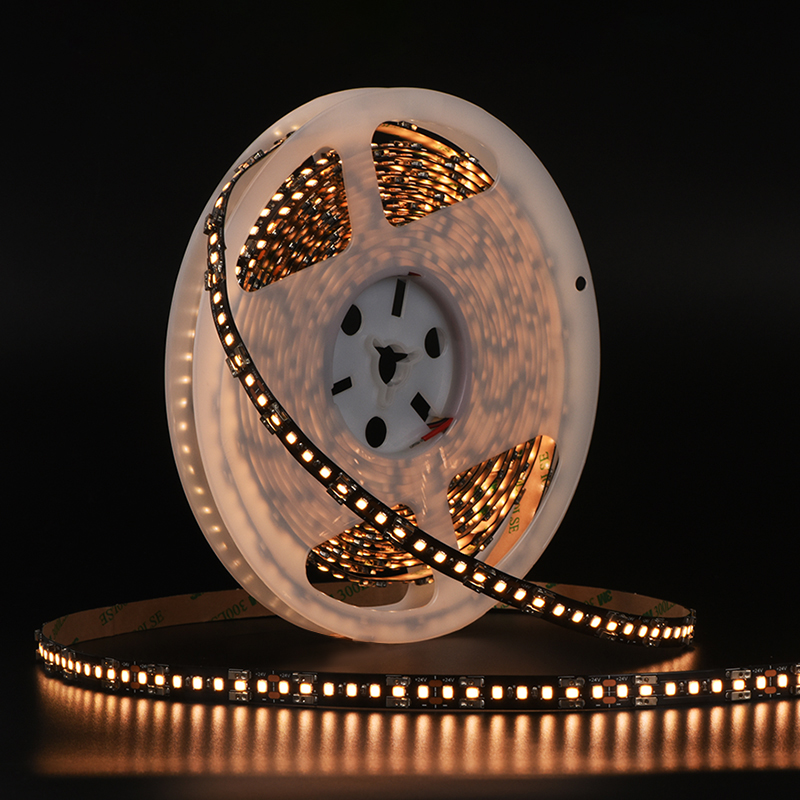

Solder-free LED strips offer the advantage of easy and tool-free installation, reducing the complexity of setup. They are primarily used in applications where quick and hassle-free installation is required, such as DIY projects, temporary lighting setups, and situations where soldering skills or equipment may be lacking.
|
Model No. |
LT-SW28N140-24-SF-144 |
|
Power |
14.4W/m |
|
PCB width |
10mm |
|
Lumen output (RGB) |
1267Lm/m CRI 90+ |
|
MAXRUN |
12m |
|
LEDs/m |
2835 140LEDs/m |
|
Cut Length |
50mm (7LEDs) |
|
Voltage |
24 VDC |
|
CCT |
1800K~6500K |
|
CRI |
CRI 90+~95+ |
|
Dimmable |
Yes (PWM, DALI, 0/1-10V, Triac) |
|
IP Rating |
IP20 |
|
Ambient temp. |
-35°C ~ 50°C |
|
Beam Angle |
120° |
|
Strip length/reel |
0.5m ~ 50m |
|
Lifespan |
50,000Hrs |
