Description
Description:

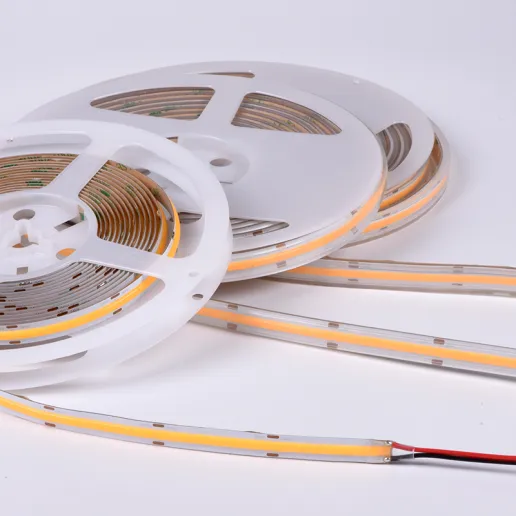

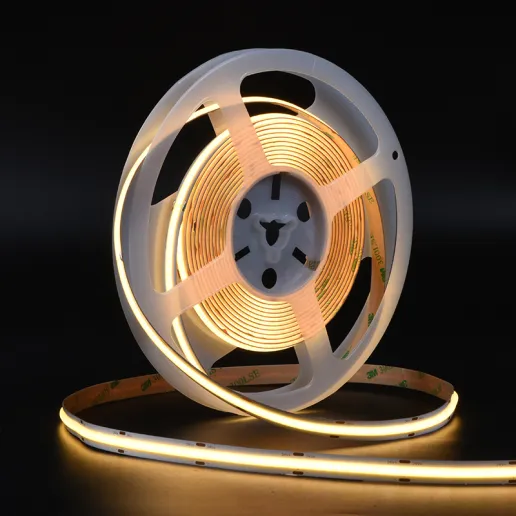

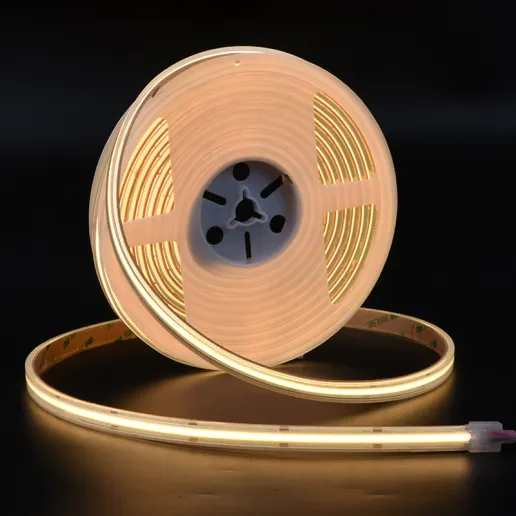

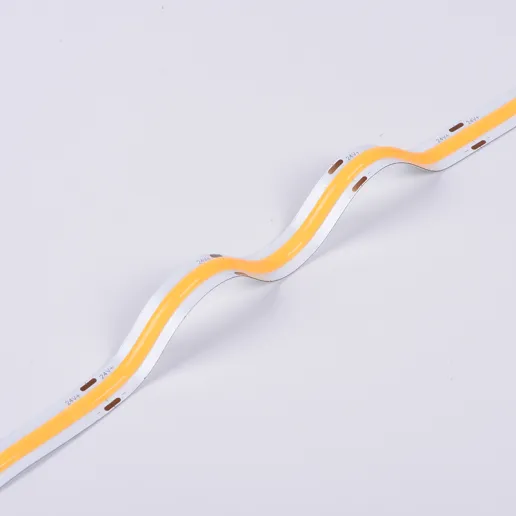

Single-color COB LED strips offer advantages of high brightness, uniform light distribution, and energy efficiency. With a range of 320 to 560 chips per meter.They are commonly used in commercial lighting, interior decoration, display cabinets, stage lighting, and outdoor lighting. The high chip density allows for brighter and more uniform illumination, while the COB technology ensures efficient energy usage.
Details:

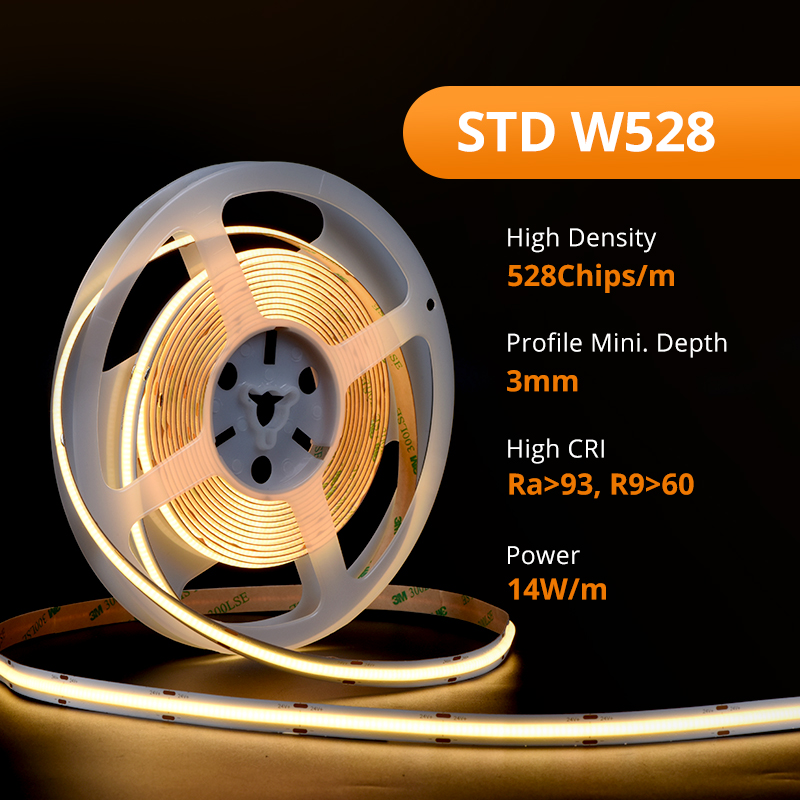

A wider beam angle and higher density brings the different lights comparede to the traditional SMD Strips. The 528Chips/m COB has 140deg beam angle, high CRI and higher wattage than other regular COB strip.
Parameter:
|
Model No. |
LT-SWCOBN528-xx90-24-140 |
Power |
14W/m |
|
PCB width |
10mm |
Lumen output (4000K) |
1400Lm/m |
|
MAXRUN |
5m |
Leds/m |
528LEDS/M |
|
Cut Length |
45.4mm |
Voltage |
24V DC |
|
CCT |
1800K~6500K |
CRI |
CRI 90+ |
|
Dimmable |
Yes (PWM, DALI, 0/1-10V, Triac) |
IP Rating |
IP20/65/67 |
|
Ambient temp |
-35°C ~ 50°C |
Beam Angle |
140° |
|
Strip length/reel |
0.5m ~ 50 |
Lifespan |
50,000Hrs |
