Description

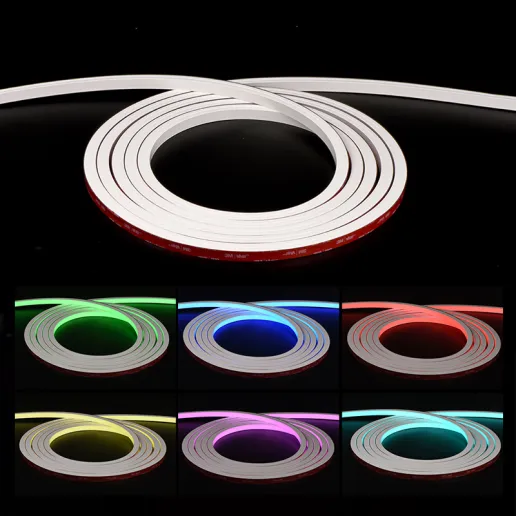

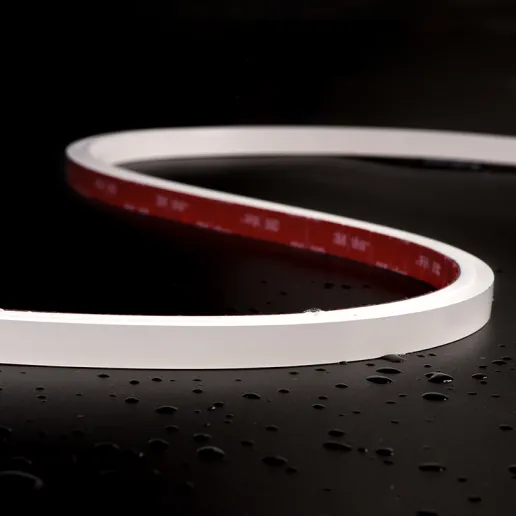

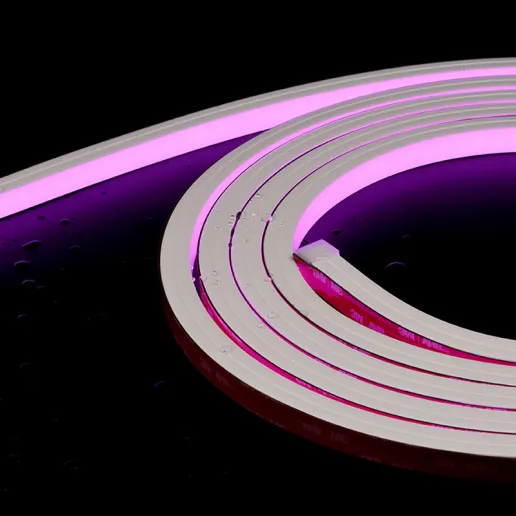

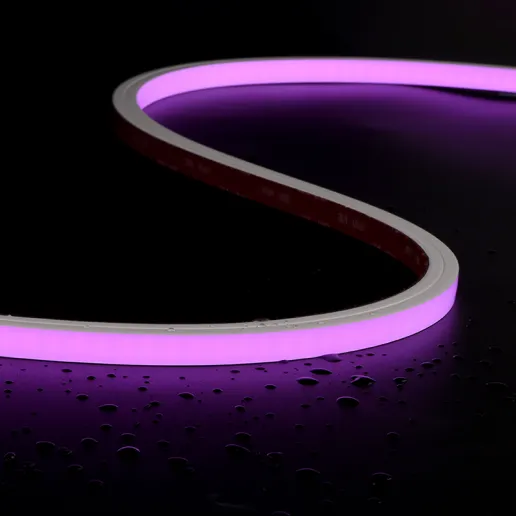

The Top / vertical bending LED neon flex features dot-free lighting, longer lifespan and High efficacy, high CRI, it is designed to provide consistent linear lighting for a wide variety of applications for cove lighting and indirect lighting in hotels, restaurants, shops, offices and homes.
|
ModelNo. |
TE1313F/C-SW-150 |
TE1313F/C-TW-150 |
TE1313F/C-RGB-150 |
TE1313F/C-RGBW-150 |
|
Power |
15W/m |
15W/m |
15W/m |
15W/m |
|
CCT/Color |
1800K~6500K Static White |
1800K~6500K Tunable White |
RGB |
RGBW=1800K~6500K |
|
PCBwidth |
10mm |
10mm |
10mm |
10mm |
|
Lumen output |
1200Lm/mCRI80+ |
1087Lm/mCRI80+ |
400Lm/mRGB |
Total525Lm/mCRI80+ |
|
MAXRUN |
5m |
5m |
5m |
5m |
|
LEDs/m |
2835 140LEDs/m |
2016 280LEDs/m |
3838 120LEDs/m |
5050 120LEDs/m |
|
CutLength |
50mm |
|||
|
Voltage |
24 VDC |
|||
|
CRI(White) |
CRI 80+~95+ |
CRI 80+~95+ |
/ |
WhiteCRI80+~95+ |
|
IPRating |
IP67 |
|||
|
Dimmable |
Yes (PWM, DALI, 0/1-10V, Triac) |
|||
|
Ambienttemp. |
-35°C ~ 45°C |
|||
|
BeamAngle |
120°/160° |
|||
|
Striplength/reel |
0.5m ~ 50m |
|||
|
Lifespan |
50,000Hrs |
|||
