Description

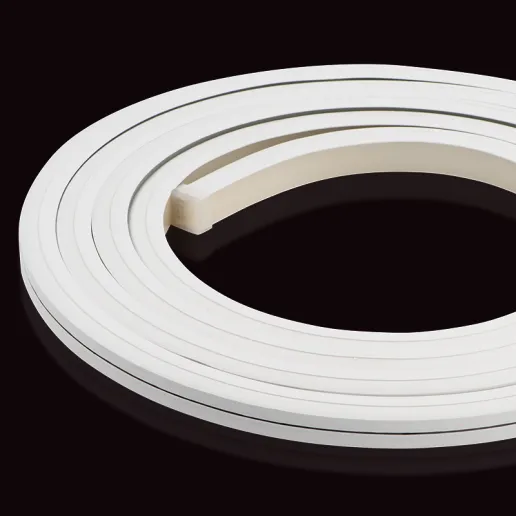

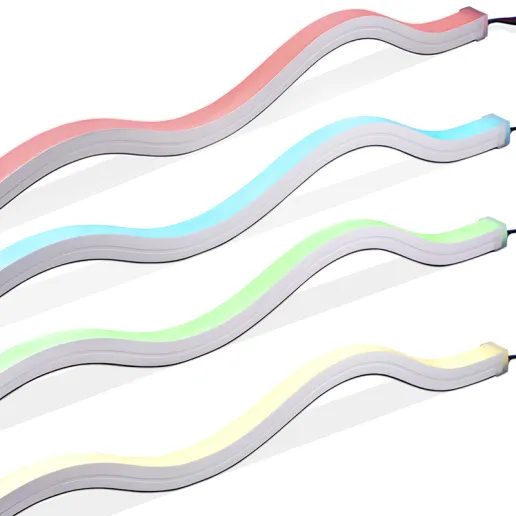

The Lumiopal LED neon strip features dotfree lighting, longer lifespan and High efficacy, high CRI, it is designed to provide consistent linear lighting for a wide variety of applications for cove lighting and indirect lighting in hotels, restaurants, shops, offices and homes.
Features:
1. LED neon flex
2. TE 15*15mm Flat
3. 5 years warranty
4. Dimmable with suitable control system
|
Part number |
LO-TE1515F-XX-2490-15 |
LED QTY/M |
140pcs 2835 SMD |
|
Power/meter |
15W |
Chip |
Epistar |
|
Input voltage |
24V |
Cut length |
50mm |
|
CCT (K) |
2200-6500K |
Installation |
3M VHB 5952/ Bracket |
|
CRI |
Ra+80, R9>3, R12>60 |
Dimension |
15*15MM |
|
Lumen/meter |
750-1050 Lm |
Maxrun |
5meter(2.4A) |
|
Bin/Step |
SDCM<3(RF) |
Beam angle |
160° |
|
IP rating |
IP67 |
Bend radius |
R<25mm |
|
Dimmable |
PWM/0-10V/DAIL |
Operating temp. |
-25-50°C |
|
Connection |
Lead wire or Pin connector |
Lifespan and warranty |
35,000Hrs / 3years |
|
Customized length |
Yes |
Certificate |
CE, RoHS, REACH, UL |
