Description

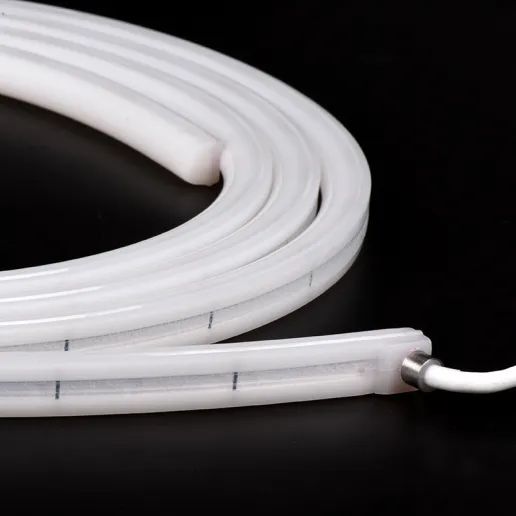

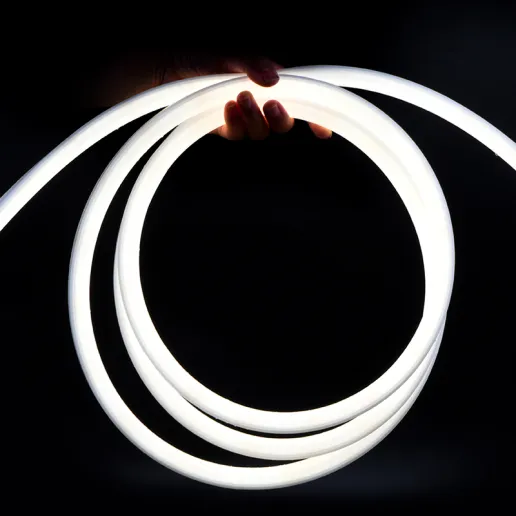

The LumiOpal LED neon strip features a dot-free lighting, longer lifespan, High efficacy and high CRI. It is designed to provide consistent flexible linear lighting for the art and creative industries.
They're designed to provide high quality linear lighting for a wide variety of applications.
|
Model No. |
TE1615D-SW-150 |
TE1615D-TW-150 |
TE1615D-RGB-150 |
TE1615D-RGBW-150 |
|
Power |
15W/m |
15W/m |
15W/m |
15W/m |
|
CCT/Color |
1800K~6500K |
1800K~6500K |
RGB |
RGBW=1800K~6500K |
|
PCB width |
10mm |
10mm |
10mm |
10mm |
|
Lumen output |
1245 Lm/m CRI 80+ |
1125Lm/m CRI 80+ |
400Lm/m RGB |
Total 525Lm/m CRI 90+ |
|
MAXRUN |
5m |
5m |
5m |
5m |
|
LEDs/m |
2835 140LEDs/m |
2835 224LEDs/m |
3838 120LEDs/m |
5050 84LEDs/m |
|
Cut Length |
50mm |
62.5mm |
50mm |
50mm |
|
Voltage |
DV 24V |
|||
|
CRI (White) |
CRI 80+~95+ |
CRI 80+~95+ |
/ |
White CRI 80+~95+ |
|
IP Rating |
IP67 |
|||
|
Dimmable |
Yes (PWM, DALI, 0/1-10V, Triac) |
|||
|
Ambient temp. |
-35°C ~ 45°C |
|||
|
Beam Angle |
180° |
|||
|
Strip length/reel |
0.5m ~ 50m |
|||
|
Lifespan |
50,000Hrs |
|||
