Description

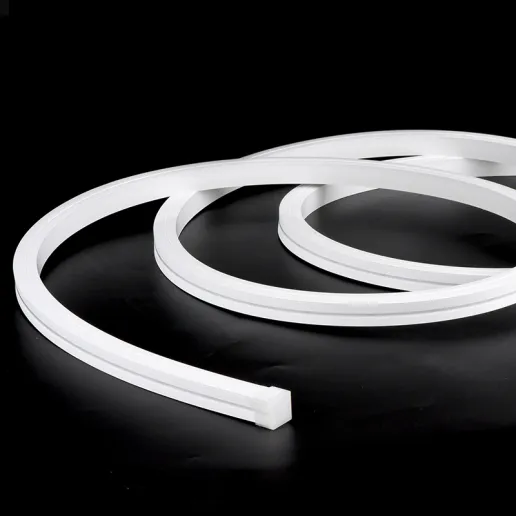

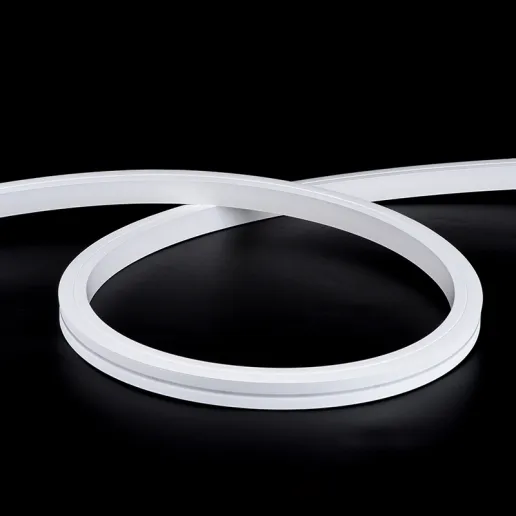

The Top / vertical bending LED neon flex features dot-free lighting, longer lifespan and High efficacy, high CRI, it is designed to provide consistent linear lighting for a wide variety of applications for cove lighting and indirect lighting in hotels, restaurants, shops, offices and homes.
|
Part number |
TE2020F |
LED QTY/M |
2835/3838/5050 SMD |
|
Power/meter |
6/10/15/20W |
Chip |
Epistar |
|
Input voltage |
12/24/48V |
Cut length |
50mm |
|
CCT |
2200K-6000K/RGB/RGBW |
Installation |
3M VHB 5952/ Bracket |
|
Lumen/meter |
230-750Lm |
Maxrun |
5meter(2.4A) |
|
CRI |
80-95+ |
Dimension |
20*20MM |
|
Bin/Step |
SDCM<3(RF) |
Beam angle |
160° |
|
IP rating |
IP67 |
Bend radius |
R<25mm |
|
Dimmable |
PWM/0-10V/DAIL |
Operating temp. |
-35-50℃ |
|
Connection |
Lead wire or Pin connector |
Lifespan and warranty |
50,000Hrs / 5years |
|
Customized length |
Yes |
Certificate |
CE, RoHS, REACH, UL |
