Description
Description:

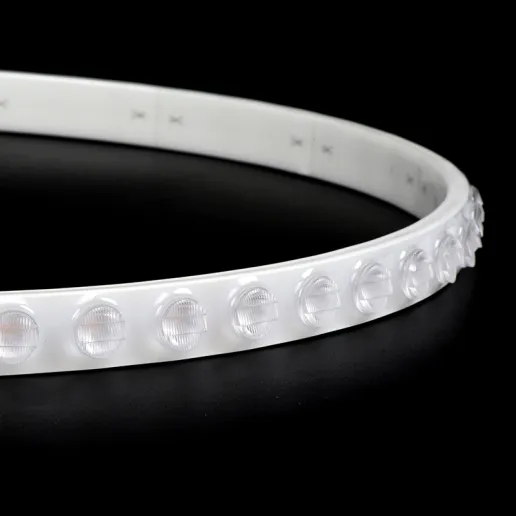

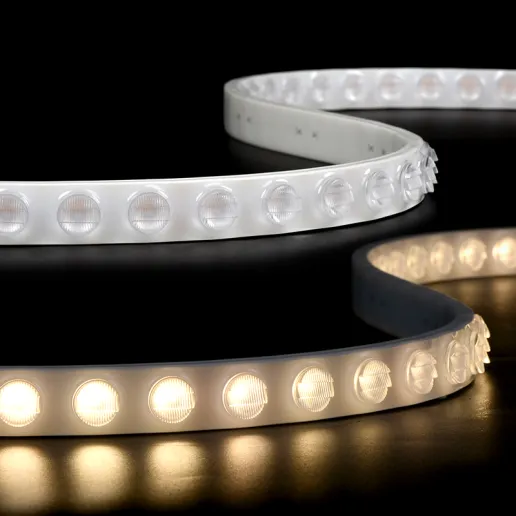

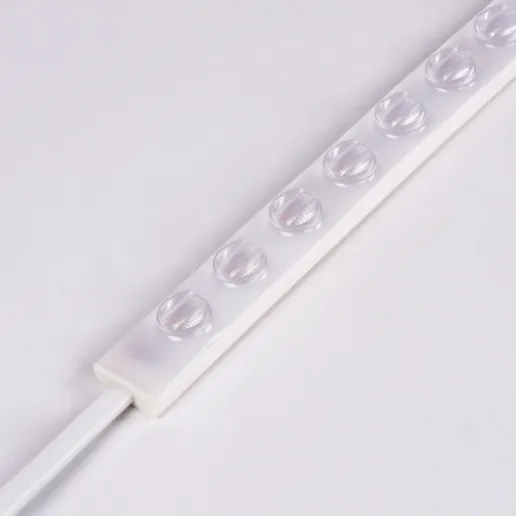

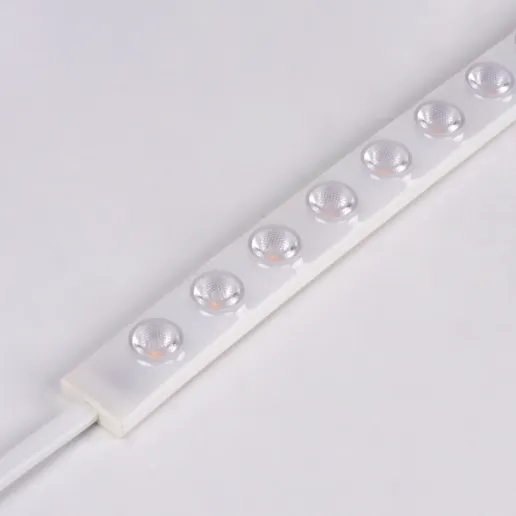

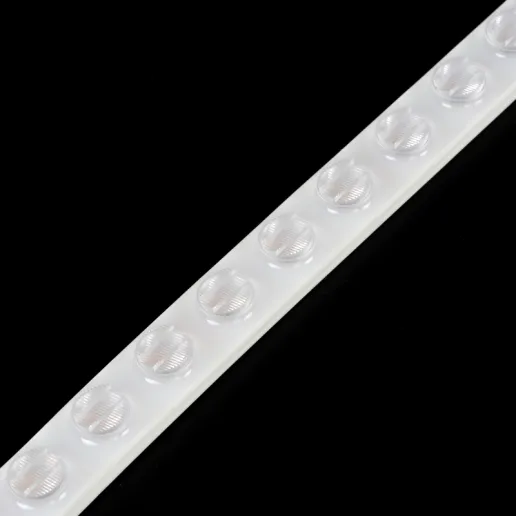

The OpticFlex is potted in TPU material, it’ s resistant to yellowing,high temperature, corrosion and has great flexibility. It is designed to replace the rigid wall washer light. It is slim and shallow, very flexible and easy to install. Various beam angles (30°, 45°, 60°, 20x45°,15x45°) are available for different applications.
Details:
Beam angles of 15°, 30°, 45°, 60°, 25x45°, 25x45x10°are available.Multiple colors available in Static white, RGB, RGBW and DMX RGBW.Adjustable mounting clips with more possibility of light distribution. 125mm IP67 waterproof suitable for indoor and outdoor locations.
Parameter:
|
Model No. |
LT-SW30U48-xx80-24-240 |
Power |
24W/m |
|
Dimension |
W20mm x H10mm |
Lumen output (4000K) |
2270Lm/m |
|
MAXRUN |
5m |
Leds/m |
48LEDS/M |
|
Cut Length |
125mm |
Voltage |
24V DC |
|
CCT |
1800K~6500K |
CRI |
CRI 80+ |
|
Dimmable |
Yes (PWM, DALI, 0/1-10V, Triac) |
IP Rating |
IP65 |
|
Ambient temp |
-35°C ~ 50°C |
Beam Angle |
15°, 30°, 45°, 60° 20x45°, 20x45x10° |
|
Strip length/reel |
0.5m ~ 10 |
Lifespan |
50,000Hrs |
