Description
Customized RF Power Amplifier, 1.2G 20W RF Power Amplifier , Anti Drone RF Power Module

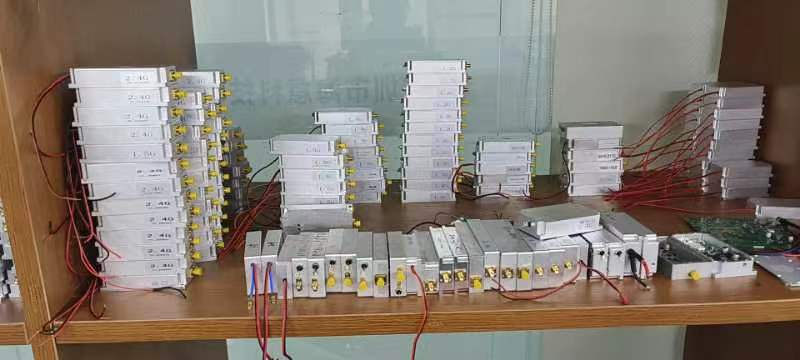

We offer the customized frequency & output power as customer need for the anti drone UAV signal jammer module
* Also, the mobile phone, WIFI, GPS signal jammer module is offered too.
433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module
| Indicators | Parameter |
| Working frequency | 1150-1300MHz |
| Gain | ≥43dBm |
| Max output | ≥43dBm |
| Output CW saturation power | ≥20W |
| Including inside gain flatness | ≤1±0.5dBm |
| Working current | ≤2.5A |
| Output port standing wave | ≤2.0 |
| Clutter suppression | ≥65dBm |
| Harmonic suppression | ≥11dBm |
| Rf output interface SMA | SMA |
| 27V power supply port | Feedthru Capacitor / Red black wire |
| Sweep frequency | 60-250KHz |
VCC Power supply referenc | 24V-27V |
Max Voltage | +30V |
| Weight | 0.1kg |
| Installation dimensions | 78*41mm |
| Overall dimensions | 82*45*18mm |
| dOperating temperature | -25℃ ~ +55℃ |
| Installation | Installing radiator for testing of power amplifier |
