KV: 12000kv
Lipo cell: 1-3s
Weight: 3.6g
Prop adapter shaft: M2
Bolt thread: PM1.6
Propeller: 3''
4 IN 1 15A BL Heli-S ESC
Input voltage: 3.7~13v DCIN(1-3S LiPo)
Constant current: 15A
Peak current: 17A
BEC output: NO
MCU: 48MHz EFM8BB21F16G
Protocol: DSHOT/ Oneshot/ MultiShot
BLHeli-S Firmware target: S-H-50
Telemetery: No
Current Sensor: No

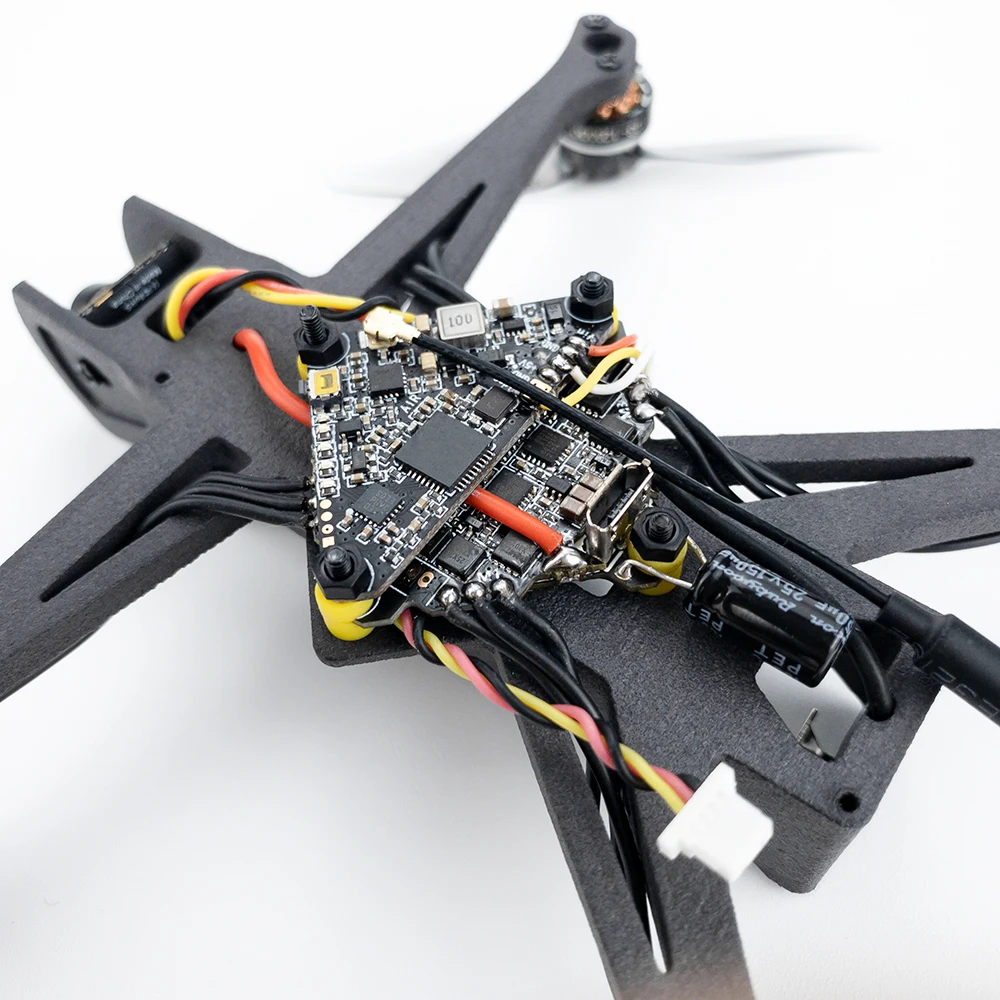

F411-15A AIO Flight Controller
MCU: 100MHz STM32F411CEU6
IMU: MPU 6500(SPI) or ICM20689
Baro: No
Blackbox: No
OSD: AT7456E
2xUarts(1,2)
Bailt in inverter for SBUS input (UARTI-RX)
1XSoftserial supported(S5)
3.7~13v DCIN(1~3SLiPo)
BEC: 5V 2A cont (Max 2.5A)
LDO3.3V: Max 200mA
Battery Voltage sensor: 1:10 (scale 110)
Beta Flight target: MATEKF411
VT 5840 AIR 5.8GHz 40CH
Model: VT5804 AIR
Output power: 25mw/50mw/100mw/200mw/400mw
Input voltage: 6~26v
Output power: 25/50/100/200/400mw Switchable
Frequency: 48 channels
Weight:3g (not including altenna)
Size: 28.8*28.5*3mm
Mounting holes Dimension: 25.5mm*25.5mm
Connector: IPX-E
Video format: NISC/PAL
Device configuration through OSD
PIT Mode Feature
Stable output power and Long transmission distance: 0.5@25mw, 1km@200mw, 5km@400mw(Orignal Antenna)
Device Configuration through OSD
MCU: 100MHz STM32F411CEU6
IMU: MPU 6500(SPI) or ICM20689
Baro: No
Blackbox: No
OSD: AT7456E
2xUarts(1,2)
Bailt in inverter for SBUS input (UARTI-RX)
1XSoftserial supported(S5)
3.7~13v DCIN(1~3SLiPo)
BEC: 5V 2A cont (Max 2.5A)
LDO3.3V: Max 200mA
Battery Voltage sensor: 1:10 (scale 110)
Beta Flight target: MATEKF411
VT 5840 AIR 5.8GHz 40CH
Model: VT5804 AIR
Output power: 25mw/50mw/100mw/200mw/400mw
Input voltage: 6~26v
Output power: 25/50/100/200/400mw Switchable
Frequency: 48 channels
Weight:3g (not including altenna)
Size: 28.8*28.5*3mm
Mounting holes Dimension: 25.5mm*25.5mm
Connector: IPX-E
Video format: NISC/PAL
Device configuration through OSD
PIT Mode Feature
Stable output power and Long transmission distance: 0.5@25mw, 1km@200mw, 5km@400mw(Orignal Antenna)
Device Configuration through OSD

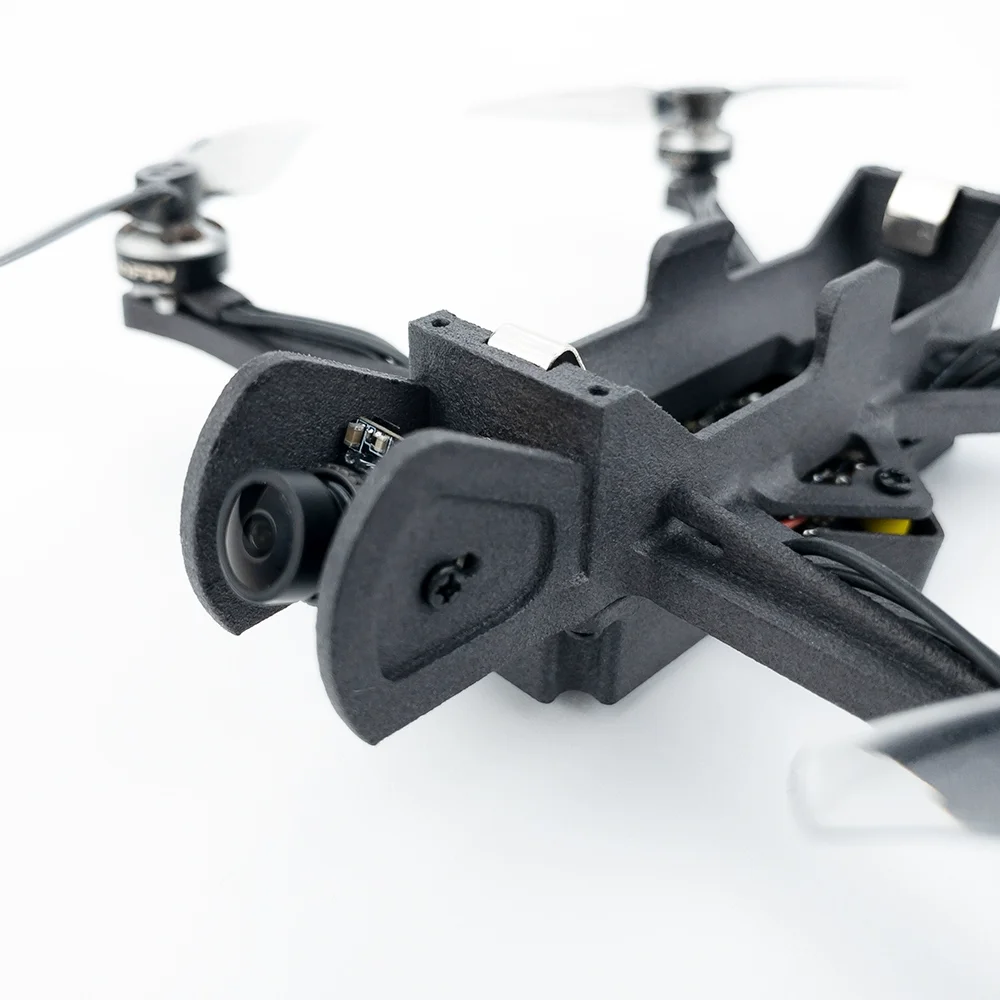

ADDX Camera
Image sensor: 1/3''CMOS Sensor
Horizontal resolution:1200TVL
TV system: NTSC or PAL
MENU: support PICTURE: 16:9 OR 4:3
Synchronization: internal
Electronic shutter: PAL: 1/50~100000
NTSC: 1/60~100,000
S/N ratio: >52dB(AGC OFF)
Video output: CVBS
Lens:1.8mm
Min Lighting: 0.001 [email protected]
Auto Gain control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm
Wide power input: DC3.7-18V
Work temperature: -20~+60
Working humidity: 20% ~80%
Weight: 2g (N.W.)
Image sensor: 1/3''CMOS Sensor
Horizontal resolution:1200TVL
TV system: NTSC or PAL
MENU: support PICTURE: 16:9 OR 4:3
Synchronization: internal
Electronic shutter: PAL: 1/50~100000
NTSC: 1/60~100,000
S/N ratio: >52dB(AGC OFF)
Video output: CVBS
Lens:1.8mm
Min Lighting: 0.001 [email protected]
Auto Gain control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm
Wide power input: DC3.7-18V
Work temperature: -20~+60
Working humidity: 20% ~80%
Weight: 2g (N.W.)
