Description
A mixture of Repeaters or Ancillary boards up to a maximum of 4 of each type can be connected to a control panel and each is allocated an address from 1 to 4 using a binary coded DIP switch.The total length of the data cable from the main panel to the last repeater must not exceed 1200 meters.

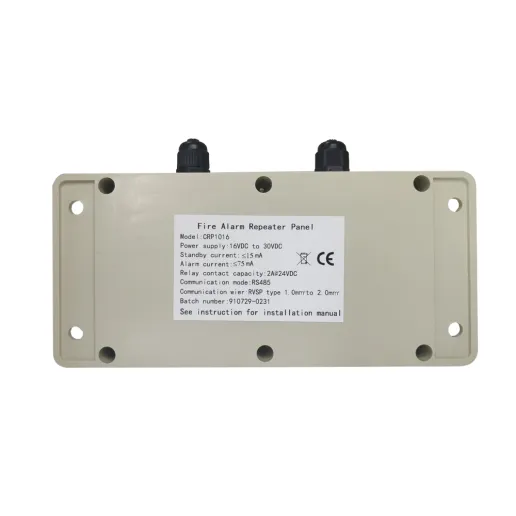

SPECIFICATIONS
Power supply: 16VDC to 30VDC
※ Current of power: Standby current: ≤15mA, Alarm current: ≤75mA
※ Relay contact capacity: 2A@24VDC
※ Buzzer level: 80dB@1m.
※ Protection level: IP55
※ Communication mode:RS485 (Wires: RVSP type,1.0 m㎡to 2.0m㎡)
※ Dimension of enclosure: 200mm(W)x91mm(H)x45mm(D)
※ Material of enclosure:ABS, White
※ Weight: 350g
※ Hole of enter wires: 1/2 inch(12mm)
