Description
|
Type: |
BIB Series |
|
Model: |

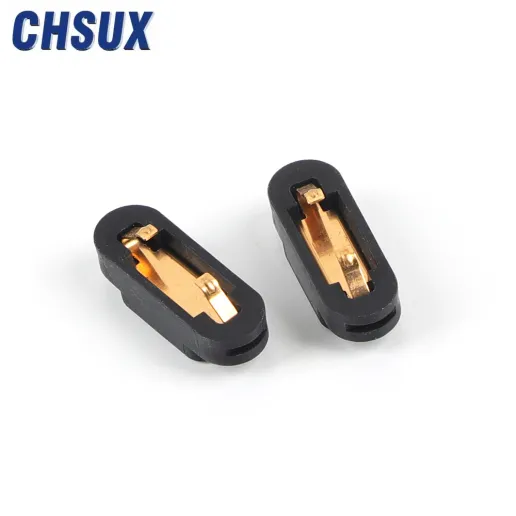

BIB-JHD |
|
Temperature Range: |
- 40 ~ +125℃ |
|
Impedance: |
50Ω |
|
Frequency Range: |
0-4GHz |
|
Withstand Voltage: |
≥ 1000V |
|
Rate current: |
≥ 5A |
|
Contact Resistance: |
Inner Conductor: ≤ 5mΩ |
|
Insulation Resistance: |
≥ 5000MΩ |
|
Peak Transmission Power: |
100W @ 2.7GHz @ 85℃ |
|
Voltage Standing Wave Ratio(VSWR): |
≤ 1.15 (DC - 3GHz) |
|
|
≤ 1.25 (3 - 4GHz) |
|
Usage: |
Communication equipment, microwave devices |
|
Durability: |
≥ 500 times |
|
Contact Pressure: |
≥ 1N |
|
Axial Tolerance: |
± 1.0mm |
|
Radial Tolerance: |
± 0.5mm |
|
Plug and Seat Fit Insert Loss dB: |
≤ 0.2dB @2GHz; 0.4 dB @ 4 GHZ or less |
|
Materials and Coating: |
||
|
Piece Part: |
Base Material |
Plating |
|
Terminal: |
Beryllium Bronze QBe2 |
D. Ni1.27 Au0.. 38 (effective contact area) |
|
Insulator: |
Fluoropolymer |
|
