Description
|
Type: |
TNC Series |
|
Model: |

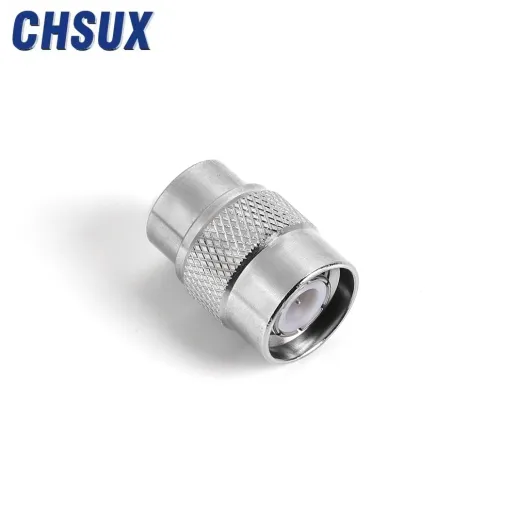

TNC-50JR, TNC-50KFD, TNC-J10A, TNC-JW8A, TNC-KWHD |
|
Temperature Range: |
- 65 ~ +165℃ |
|
Impedance: |
50Ω |
|
Frequency Range: |
0-10GHz |
|
Durability: |
≥ 500 Times |
|
Working Voltage: |
500V |
|
Contact Resistance: |
Inner Conductor: ≤ 1.5mΩ ; Outer Conductor: ≤ 0.2mΩ |
|
Insulation Resistance: |
≥ 5000MΩ |
|
Medium Pressure: |
1500V |
|
Voltage Standing Wave Ratio: |
≤ 1.30 (Straight Type) |
|
Usage: |
Communication equipment, microwave devices |
|
Materials and Coating: |
||
|
Piece Part: |
Base Material |
Plating |
|
Shell: |
Brass |
Gold plated; Nickle plated; Stainless Steel |
|
Pin insertion: |
Tin bronze |
Gold plated |
|
Jack: |
Beryllium bronze |
Gold plated |
|
Insulator: |
PTFE |
|
|
Crimping Sleeve: |
Copper alloy |
Nickel plated; Gold plated |
|
Sealing Ring: |
Silicone Rubber |
|
