Description
Motor belt pulley multi-slot main shaft tower pulley to adjust different rotating speeds When adjusting the speed, pull this rod to adjust the distance between the main shaft and the motor and change the position of the belt groove. The handle of the spindle adjustable lifting handwheel can be folded, making it more convenient to work. In The Machine standard, 88*35 * h90mm-3T wooden wire cutter head needs to be assembled with white steel blade by yourself. It can also be customized non-standard alloy milling cutter with an inner aperture of 35mm. Matching different utility managers can better carry out various processing There are many ways to match the feeding platform, which is suitable for all kinds of special-shaped feeding.
| brand | STR |
| Work form | manual |
| Maximum processing length | Don't limit (mm) |
| The weight | 320 kg |
| The rated voltage | 380 v |

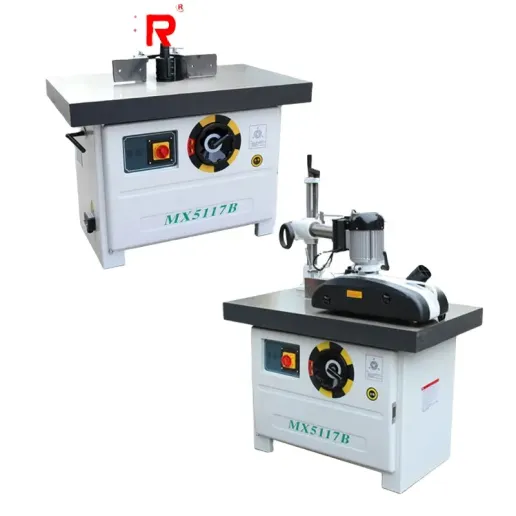

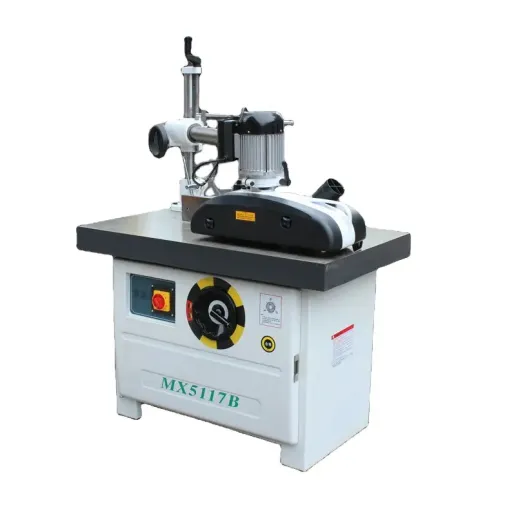

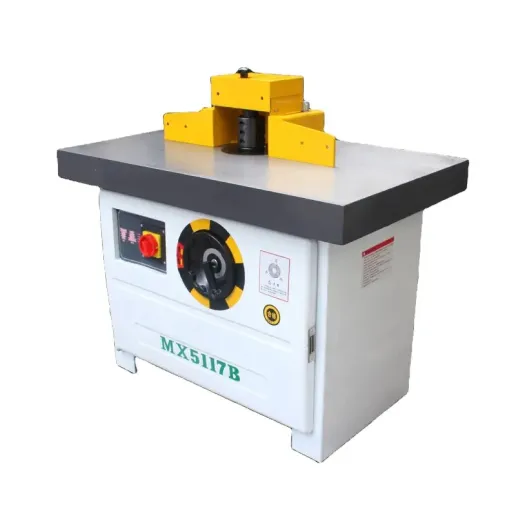

| model | MX5117B |
| The product type | NEW |
| The largest processing thickness | 120(mm) |
| Feeding speed | According to the feed speed |
| Dimension | 1130*680 * 1050mm |
| type | Woodworking milling machine |
| Rated power | 4/5.5 (kw) |
| Maximum machining width | Don't limit (mm) |
| Scope of application | Solid wood used in milling slot chamfering trimming |
| Main shaft speed | 6000/8000/10000r/min |
