Description
Products Description

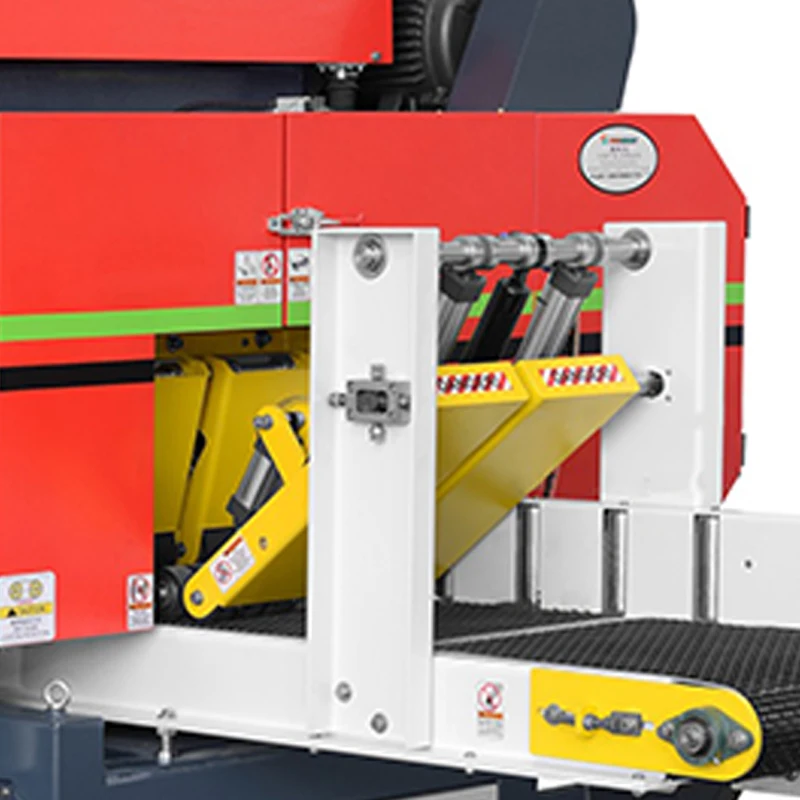

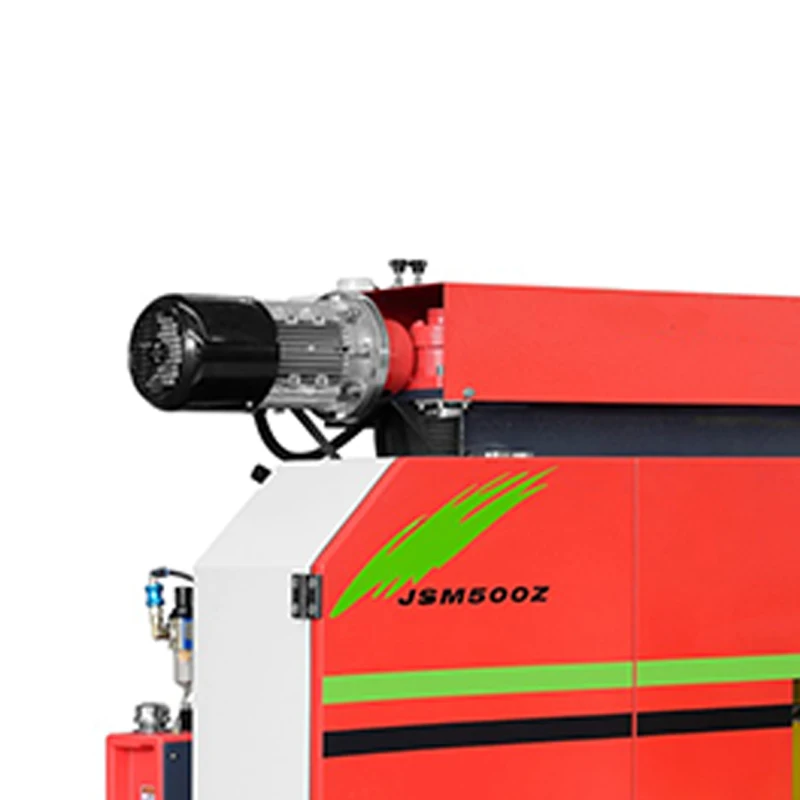

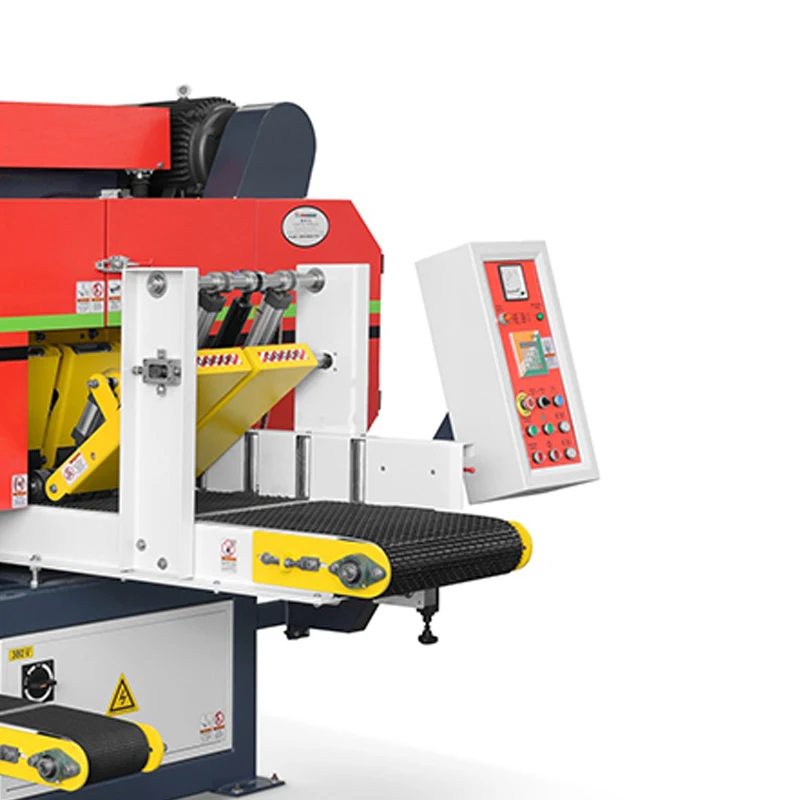

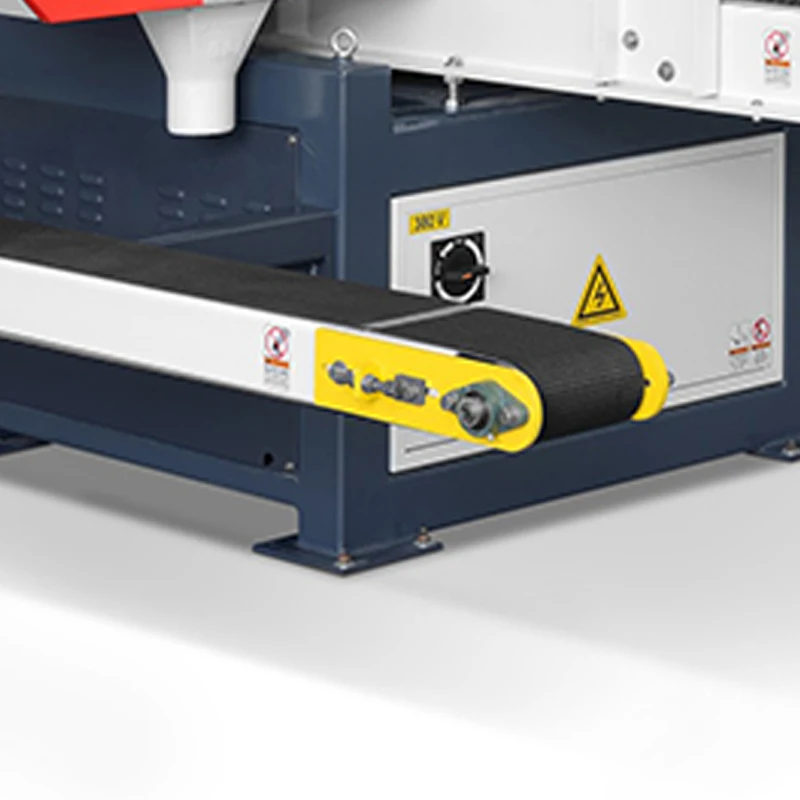

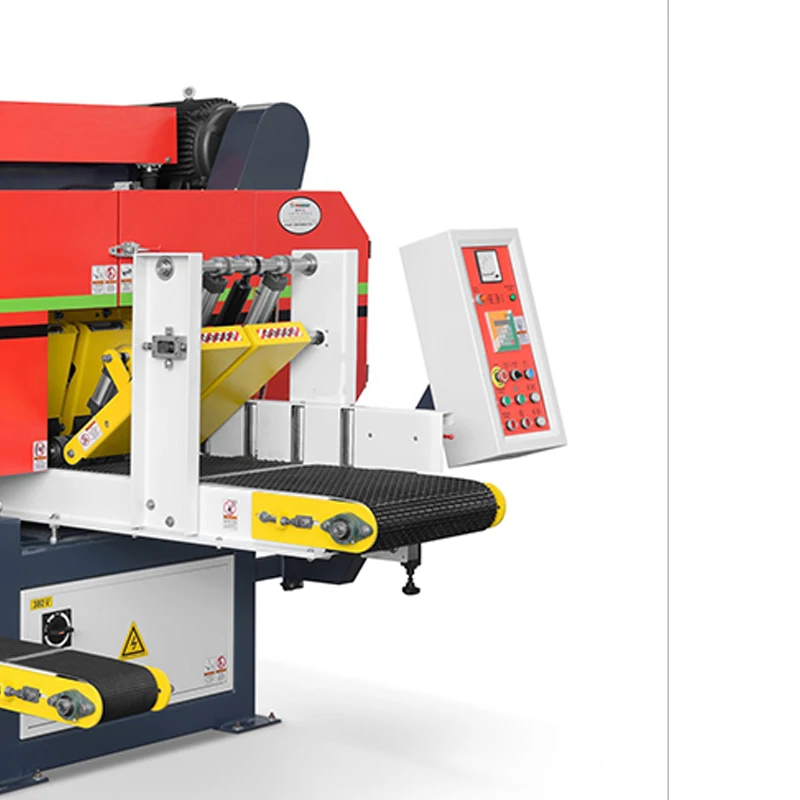

Introducing the JSM5002 Industrial Horizontal Band Saw Machine - a versatile and powerful addition to any woodworking workshop. This timber ripping floor wood sawmill is designed for precision cutting of wide mitre angles, making it an ideal choice for a range of woodworking applications.
With a maximum processing size of 500x300mm and wood processing thickness ranging from 5-160mm, this band sawing machine for wood offers exceptional versatility. The conveyor belt width of 500mm ensures efficient material handling, while the feeding speed of 0-13m/min allows for precise control over the cutting process. The sawing wheel diameter of 711mm, combined with the saw blade size of 5200x(35~55)x1.6mm, ensures a smooth and accurate cut every time. The saw blade is designed to handle a variety of wood types, providing clean and precise cuts with minimal effort. Powered by a robust 18.5kw sawing motor and working voltage of 380V, this machine delivers exceptional performance and reliability. The hydraulic pressure of 25-35kg/cm ensures stable and precise operation, allowing for consistent and accurate cuts. Weighing 2500kg and featuring overall dimensions of 2800x2400x2000mm (length x width x height), this industrial horizontal band saw machine is built to withstand the demands of continuous use in a busy workshop. The total power consumption of 21.5w further adds to its efficiency. Whether you are working on small-scale projects or large production runs, the JSM5002 band sawing machine for wood offers the precision and versatility needed to get the job done. Its wide wood band saw mitre saw capabilities make it an essential tool for any woodworking professional. Investing in the JSM5002 Industrial Horizontal Band Saw Machine will not only enhance your workshop's productivity but also ensure high-quality results in your woodworking projects. Don't settle for anything less than the best - choose JSM5002 for superior performance and reliability.
|
JSM5002
|
||
|
Specification
|
||
|
Maximum processing size
|
500x300mm
|
|
|
Wood processing thickness
|
5-160mm
|
|
|
Conveyor belt width
|
500mm
|
|
|
Feeding speed
|
0-13m/min
|
|
|
Sawing wheel diameter
|
711mm
|
|
|
Working voltage
|
380V
|
|
|
Sawing motor power
|
18.5kw
|
|
|
Hydraulic pressure
|
25-35kg/cm
|
|
|
Saw blade size
|
5200x(35~55)x1.6mm
|
|
|
Machine weight
|
2500kg
|
|
|
Overall dimensions (length*width*height)
|
2800x2400x2000mm
|
|
|
Total power
|
21.5w
|
|
