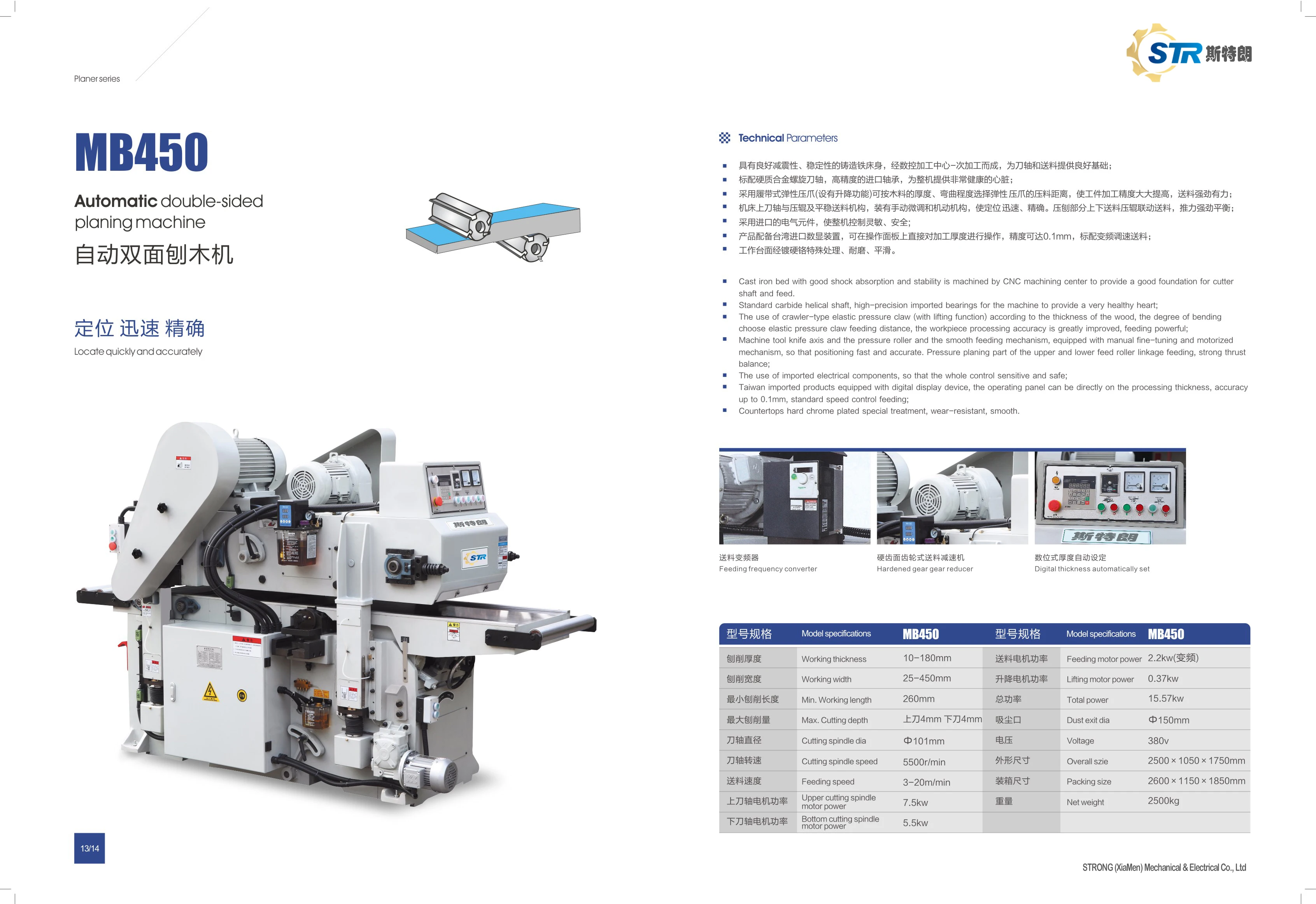

STR-MB450 Automatic Double-Sided Planing Machine

Get a quote

Description

Product introduction

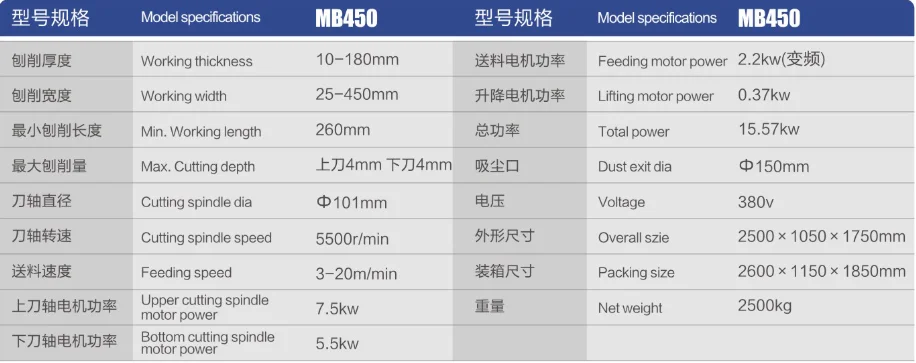

Model specifications
MB450
Model specifications
MB450
Working thickness
10-180mm
Feeding motor power
2.2kw(frenquency conversion)
Working width
25-450mm
Lifting motor power
0.37kw
Min.Working length
260mm
Total power
15.57kw
Max. Cutting depth
4mm 4mm
Dust exit dia
φ150mm
Cutting spindle dia
φ5101mm
Voltage
380v
Cutting spindle speed
5500r/min
Overall size
2500*1050*1750mm
Feeding speed
3-20m/min
Packing size
2600*1150*1850mm
Upper cutting spindle motor power
7.5kw
Net weight
2500kg
Mottom cutting spindle motor power
5.5kw
