Description
Products Description
|
Model specifications MB635
|
Model specifications MB635
|
||||
|
Working thickness
|
10-200mm
|
Feeding motor power
|
3HP (variable frequency)
|
||
|
Working width
|
25-635mm
|
Lifting motor power
|
3/4HP
|
||
|
Min.Working length
|
260mm
|
Dust exit dia
|
Φ150mm
|
||
|
Max.Cutting depth
|
Upper and lower knife 6mm
|
Voltage
|
380v
|
||
|
Cutting spindle dia
|
Φ101mm
|
Overall szie
|
2520*1130*1630mm
|
||
|
Cutting spindle speed
|
5800r/min
|
Packing size
|
2620*1230*1780mm
|
||
|
Feeding speed
|
8-18m/min
|
Net weight
|
2530kg
|
||
|
Upper cutting spindle motor power
|
15HP
|
Mechanical packing
|
2800kg weight
|
||
|
Bottom cutting spindle motor power
|
10HP
|
||||
|
Tep spindle power
|
5.5kw
|
7.5kw
|
11kw
|
||
|
Bottom spindle power
|
4kw
|
5.5kw
|
7.5kw
|
||
|
Feeding motor power
|
1.5kw
|
2.2kw
|
3kw
|
||
|
Elevating motor power
|
0.37kw
|
0.37kw
|
0.37kw
|
||
|
Total power
|
11.37kw
|
15.57kw
|
21.87kw
|
||
|
Dimension
|
L1880xW780xH1650mm
|
L2280xW1260xH1680mm
|
L2700xW1268xH1680mm
|
||
|
Net welght
|
1110kg
|
1850kg
|
2420kg
|
||
MB635 Double-Sided Planer The MB635 Double-Sided Planer is engineered to deliver precision and efficiency in woodworking operations. Its sturdy cast iron bed provides excellent shock absorption and stability, machined by a CNC machining center to ensure a solid foundation for the cutter shaft and feed. The machine is equipped with standard carbide helical shaft and high-precision imported bearings, providing reliability and durability. Featuring a crawler-type elastic pressure claw with lifting function, the machine adapts to the thickness of the wood, enhancing processing accuracy and providing powerful feeding. The knife axis, pressure roller, and smooth feeding mechanism, along with manual fine-tuning and motorized mechanisms, enable fast and accurate positioning, ensuring pressure planing balance. Imported electrical components and a digital display device from Taiwan enhance the machine's control sensitivity and safety, while the hard chrome-plated tabletop ensures wear resistance and smooth operation. The machine is capable of processing materials with a working thickness of 10-200mm and a working width of 25-635mm. The cutting spindle speed reaches 5800r/min, and the feeding speed is adjustable from 8-18m/min. With upper and lower feed roller linkage feeding and powerful motors, the MB635 Double-Sided Planer offers strong thrust and efficient operation. Its advanced features, including precision thickness control, standard speed control feeding, and robust construction, make it an ideal choice for woodworking professionals seeking high-performance and reliable equipment. Overall, the MB635 Double-Sided Planer is a versatile and robust machine that meets the demands of modern woodworking operations, delivering exceptional precision, efficiency, and durability.

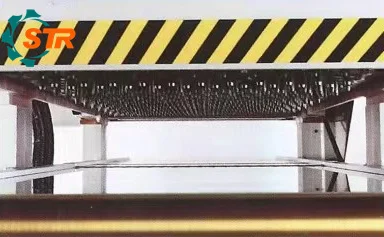

Dense cross design of feeding pin

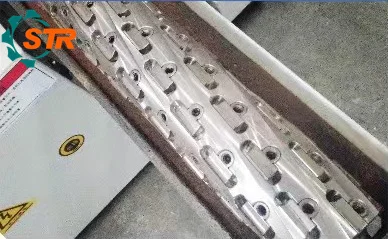

Standard re-cut spiral cutter

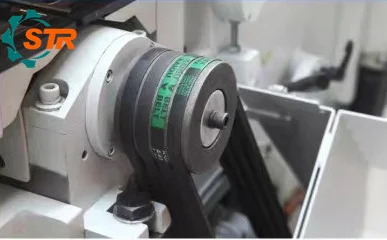

Quick elastic design of cutting belt
|

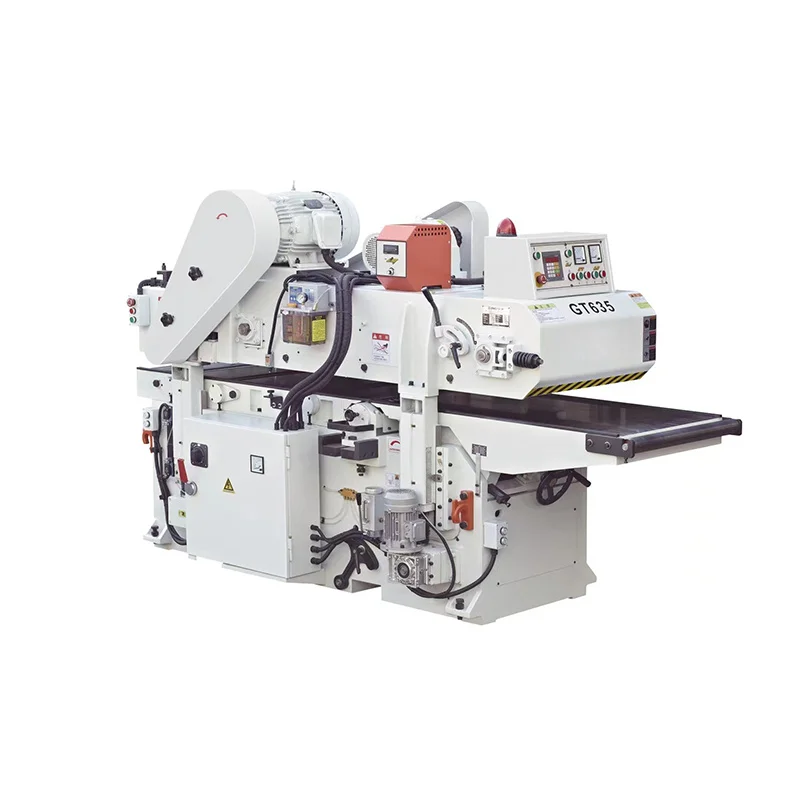

Model speciications GT635
|
Model speciications GT635
|
||||
|
Max wording width
|
635mm(25")
|
Workbench area
|
27"x102"
|
||
|
Max wording thickness
|
200mm(8")
|
Upper shaft motor
|
20HP
|
||
|
Min wording thickness
|
10mm
|
Lower shaft motor
|
15HP
|
||
|
Minwording length
|
310mm
|
Feed motor
|
3HP
|
||
|
Number of planing blades
|
100pcs
|
Upper base lift motor
|
3/4HP
|
||
|
Planer blade specifications
|
TCT30x12x1.5mm
|
Mechanical Dimensions
|
2672x1145x1700mm
|
||
|
Tool shaft diameter
|
diameter 126
|
Mechanical weigh
|
3140Kg
|
||
|
Knife shaft speed
|
5000RPM
|
Mechanical packing size
|
2772x1280x1850mm
|
||
|
Variable frequency feed speed
|
8—18m/min
|
Mechanical packing weight
|
3500Kg
|
||
|
Vacuuming
|
Top: 5"/Bottom: 6"
|
||||
1 Cast iron bed with good shock absorption and stability is machined by CNC machining center to provide a good foundation for cutter shaft and feed.
2 Standard carbide helical shaft,high-precision imported bearings for the machine to provide a very healthy heart;
3 The use of crawler-type elastic pressure claw (with liting function) according to the thickness of the wood,the degree of bending choose elastic pressure claw feeding distance,the workpiece processing accuracy is greatly improved,feeding powerful;
4 Machine tool knife axis and the pressure roller and the smooth feeding mechanism,equipped with manual fine-tuning and motorized mechanism,so that positioning fast and accurate.Pressure planing balance; part of the upper and lower feed roller linkage feeding,strong thrust
5 The use of imported electrical components, so that the whole control sensitive and safe;
6 Taiwan imported products equipped with digital display device, the operating panel can be directly on the processing thickness,accuracy up to 0.1mm,standard speed control feeding;
7 Countertops hard chrome plated special treatment, wear-resistant, smooth.
