Description
Model speciications GT635 | Model speciications GT635 | ||||
Max wording width | 635mm(25") | Workbench area | 27"x102" | ||
Max wording thickness | 200mm(8") | Upper shaft motor | 20HP | ||
Min wording thickness | 10mm | Lower shaft motor | 15HP | ||
Minwording length | 310mm | Feed motor | 3HP | ||
Number of planing blades | 100pcs | Upper base lift motor | 3/4HP | ||
Planer blade specifications | TCT30x12x1.5mm | Mechanical Dimensions | 2672x1145x1700mm | ||
Tool shaft diameter | diameter 126 | Mechanical weigh | 3140Kg | ||
Knife shaft speed | 5000RPM | Mechanical packing size | 2772x1280x1850mm | ||
Variable frequency feed speed | 8—18m/min | Mechanical packing weight | 3500Kg | ||
Vacuuming | Top: 5"/Bottom: 6" | ||||
Cast iron bed with good shock absorption and stability is processed by pentahedral processing center.The liting column is made of turbine scroll,which provides a good foundation for tool shaft and feeding. |
Standard carbide helical shaft,high-precision imported bearings for the machine to provide a very healthy heart; |

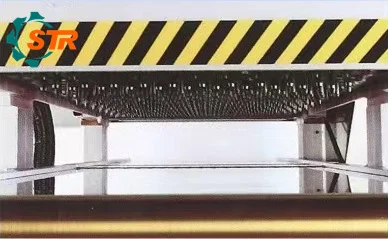

The use of crawler-type elastic pressure claw (with lifting function) according to the thickness of the wood,the degree of bending choose elastic pressure claw feeding distance, the workpiece processing accuracy is greatly improved, feeding powerful; |
Machine tool knife axis and the pressure roller and the smooth feeding mechanism,equipped with manual fine-tuning and motorized mechanism,so that positioning fast and accurate.Pressure planing part of the upper and lower feed roller linkage feeding,strong thrust balance; |
The use of imported electrical components, so that the whole control sensitive and safe; |
Taiwan imported products equipped with digital display device, the operating panel can be directly on the processing thickness,accuracy up to 0.1mm,standard speed control feeding; |
Countertops hard chrome plated special treatment, wear-resistant,smooth. |

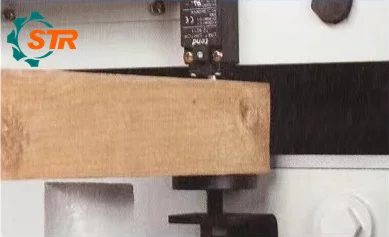

Pressure bolt overlap configuration
Title goes here.

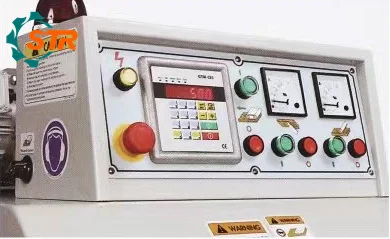

Digital automatic thickness setting
Maximize Productivity with the GT635 Double-Sided Planer
When it comes to maximizing productivity in woodworking operations, the GT635 Double-Sided Planer stands out as a top performer. With its impressive workbench area of 27 inches by 102 inches, this machine offers ample space for handling large workpieces with ease. Whether you're processing lumber for furniture, cabinetry, or flooring, the GT635 ensures efficient throughput and consistent results.
Equipped with a powerful upper shaft motor of 20HP and a lower shaft motor of 15HP, the GT635 delivers the muscle needed to tackle even the toughest hardwoods. Its variable frequency feed speed, ranging from 8 to 18 meters per minute, allows for precise control over material handling, ensuring optimal feed rates for different wood species and thicknesses.
The GT635 boasts a knife shaft speed of 5000RPM, coupled with 100 pieces of planing blades with specifications of TCT 30x12x1.5mm. This combination of high-speed rotation and sharp cutting edges ensures efficient material removal and superior surface finishes, reducing the need for additional sanding or finishing operations.
Moreover, the GT635 offers versatility in processing wood of various thicknesses, with a minimum thickness of 10mm and a maximum thickness of 200mm (8 inches). Whether you're thicknessing stock or surfacing rough lumber, this machine delivers precise results with minimal setup time.
In addition to its impressive performance capabilities, the GT635 prioritizes operator safety and convenience. Its vacuuming system, with top and bottom suction ports measuring 5 inches and 6 inches respectively, effectively removes dust and debris from the work area, creating a clean and safe working environment.
With mechanical dimensions of 2672mm x 1145mm x 1700mm and a weight of 3140kg, the GT635 combines compactness with robustness, making it suitable for a wide range of woodworking settings. Its mechanical packing size of 2772mm x 1280mm x 1850mm and packing weight of 3500kg ensure hassle-free transportation and installation.
In conclusion, the GT635 Double-Sided Planer is the ideal solution for woodworkers looking to maximize productivity without compromising on quality. With its powerful performance, precise control, and user-friendly features, this machine is sure to streamline your woodworking operations and deliver exceptional results.
