Description
Products Description
M418A | M518A | M618A | |
Processing width (mm) | 25-180 | 25-180 | 25-180 |
Processing thickness (mm) | 8-120 | 8-130 | 8-130 |
Front worktable length (mm) | 1500 | 1500 | 1500 |
Feeding speed (m/min) | 6-36 | 6-36 | 6-36 |
Spindle diameter (mm) | Φ40 | Φ40 | Φ40 |
Spindle speed (r/min) | 6200 | 6200 | 6200 |
Air source pressure (Mpa) | 0.6 | 0.6 | 0.6 |
First lower axis | 5.5KW/7.5HP | 5.5KW/7.5HP | 5.5KW/7.5HP |
Right vertical axis | 5.5KW/7.5HP | 5.5KW/75HP | 5.5KW/75HP |
Left vertical axis | 5.5KW/7.5HP | 5.5KW/7.5HP | 5.5KW/7.5HP |
First upper axis | 7.5KW/10HP | 7.5KW/10HP | 7.5KW/10HP |
Second upper axis | 5.5KW/7.5HP | ||
Second lower axis | 5.5KW/7.5HP | 5.5KW/7.5HP | |
Axis lifting | |||
Beam lifting | 0.55KW/0.75HP | 0.55KW/0.75HP | 0.75KW/0.75HP |
Feeding | 4KW/5.5HP | 4KW/5.5HP | 4KW/7.5HP |
Total power | 28.55KW/39HP | 34.25KW/46.5HP | 39.75KW/54HP |
First lower axis (mm) | Φ125 | Φ125 | Φ125 |
Right vertical axis (mm) | Φ125-Φ160 | Φ125-Φ160 | Φ125-Φ160 |
Left vertical axis (mm) | Φ125-Φ160 | Φ125-Φ160 | Φ125-Φ160 |
First upper axis (mm) | Φ125-Φ160 | Φ125-Φ160 | Φ125-Φ160 |
Second upper axis (mm) | Φ125-Φ160 | ||
Second lower axis (mm) | Φ125-Φ180 | Φ125-Φ180 | |
Feed wheel diameter (mm) | Φ140 | Φ140 | Φ140 |
Dust pipe diameter (mm) | Φ140 | Φ140 | Φ140 |
Overall dimensions (mm) | L3250*W1550*H1720 | L3250*W1550*H1720 | L3750*W1550*H1720 |
Net weight (kg) | 3200 | 3300 | 3800 |
Air volume | 10500M³/h | 10500M³/h | 12200M³/h |

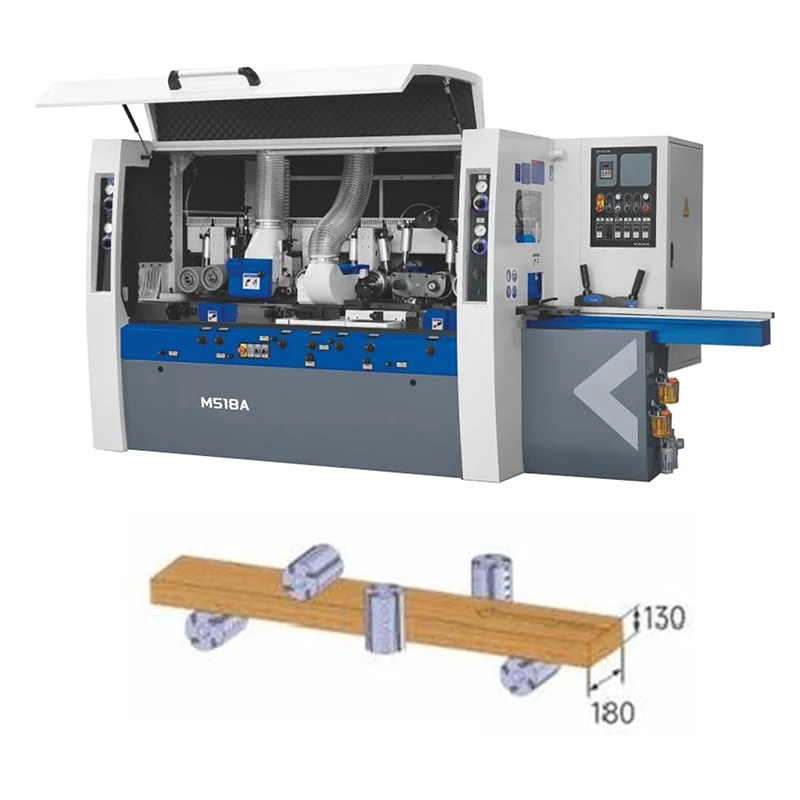

Introducing our high-precision wood processing machines, the M418A, M518A, and M618A. These 4-sided planers are designed to provide exceptional performance and accuracy for woodworking applications. With a processing width of 25-180mm and a processing thickness of 8-130mm, these planers are versatile and suitable for various woodworking projects.
Equipped with a front worktable length of 1500mm and a feeding speed of 6-36m/min, these machines ensure efficient and precise wood processing. The spindle diameter of Φ40mm and a spindle speed of 6200r/min further enhance the precision and speed of the planing process.
The power-packed motors including the first lower axis, right and left vertical axis, first and second upper axis, second lower axis, beam lifting, and feeding ensure optimal performance. With a total power ranging from 28.55KW/39HP to 39.75KW/54HP, these planers deliver robust and consistent results.
Additionally, the planers are designed with attention to detail, featuring various axis lifting capabilities and feed wheel diameters of Φ140mm. The dust pipe diameter of Φ140mm ensures effective dust extraction for a cleaner working environment.
With overall dimensions ranging from L3250×W1550×H1720mm to L3750×W1550×H1720mm, and net weights from 3200kg to 3800kg, these machines offer a balance of sturdiness and maneuverability.
Not to mention, the efficient dust extraction system with a capacity of 10500M³/h to 12200M³/h ensures a clean and safe working environment.
In conclusion, the M418A, M518A, and M618A wood processing machines are the perfect choice for woodworking professionals seeking high-quality, high-precision, and high-performance equipment for their projects.

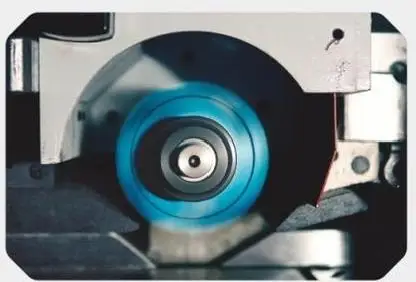

The panels on both sides of the rear lower shaft can move freely, and it is very convenient to replace various tools.

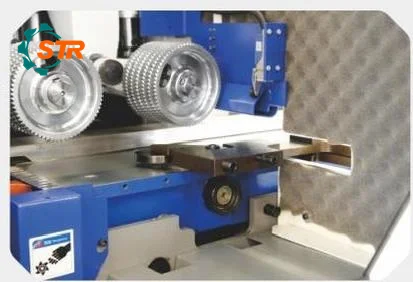

The front workbench is equipped with a lower active roller to steadily feed the wood into the machine

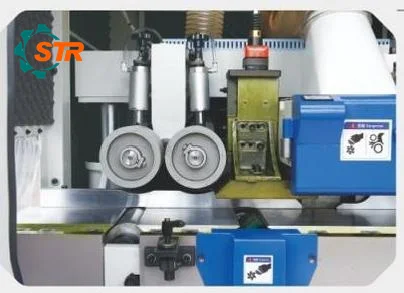

The front and rear pressure plates can adjust the pressure separately, and even if the thickness of the wood varies greatly, the wood can be firmly pressed on the workbench

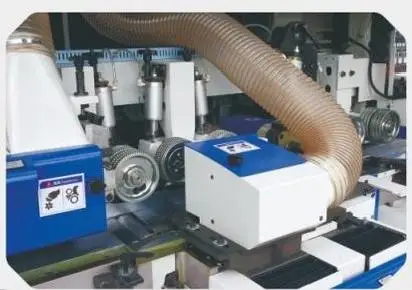

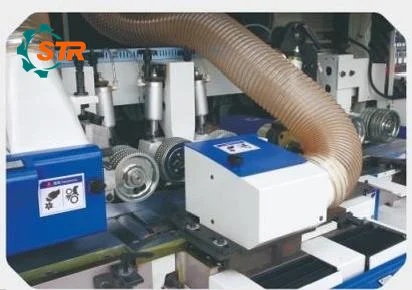

Efficient dust removal, the new dust suction structure can more effectively absorb wood chips. Minimize the dents on the surface of the finished product and effectively control the noise.
